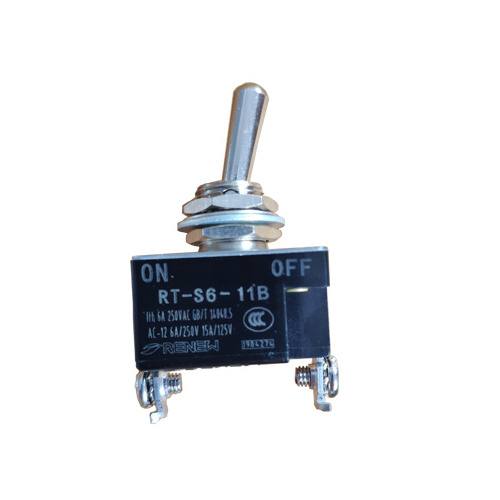

RT-S6-11B SPST one pole on off mini toggle switch waterproof 12v switch
RT-S6-11B SPST one pole on off mini toggle switch waterproof 12v switch
RT-S6-11B SPST one pole on off mini toggle switch waterproof 12v switch
RT-S6-11B SPST one pole on off mini toggle switch waterproof 12v switch
RT-S6-11B SPST one pole on off mini toggle switch waterproof 12v switch
RT-S6-11B SPST one pole on off mini toggle switch waterproof 12v switch

RT-S6-11B SPST one pole on off mini toggle switch waterproof 12v switch

FOB Reference Price: Get Latest Price
≥20 Pieces
US $0.95
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
RT-S6-11B
Max. Current:
15A
Mechanical Life:
50,000 operations min.
Warranty:
12 months
Contact form:
SPST
Electrical life:
25,000 operations min.
Actuator type:
ON-OFF
Terminal type:
screw fixed terminal
Mechanical life:
50,000 operation min.
Rating:
6A 15A
Certification:
CE CCC

Quick Details

Max. Voltage:
250VAC
Place of Origin:
Zhejiang, China
Brand Name:
RENEW
Model Number:
RT-S6-11B
Max. Current:
15A
Mechanical Life:
50,000 operations min.
Warranty:
12 months
Contact form:
SPST
Electrical life:
25,000 operations min.
Actuator type:
ON-OFF
Terminal type:
screw fixed terminal
Mechanical life:
50,000 operation min.
Rating:
6A 15A
Certification:
CE CCC

Product Description

Product Name: one pole on off toggle switch/waterproof toggle switch/mini toggle switch 3a 250vac

Model No.: RT-S6-11B

Performance

Rated working current

15A,10A,6A,3A/125V,250VA(resistive load)

Contact type

Contact resistance (initial value )

Less tan 15mΩ

Contact material

Sliver cadmium oxide contact (if no need cadmium,[according with ROSH certificate ] can customize

Electrical

Insulation  resistance(initial value )

Above 100 mΩ(use the DC500V insulation resistance test)

Dielectric strength

Between Non-continuous terminals (initial value): 1000V 50/60HZ for 1 min

Between non voltage metal parts and each terminal: 2000V 50/60HZ for 1min

Between ground and each terminal: 2000V 50HZ for 1 min

Mechanical

Shock resistance

In the free position

Less than 98m/s2(10G)

In the full operating position

Less than 500m/s2(30G)

Vibration resistance

1.5mm double amplitude;  10-55HZ (contact gap is under 1ms )

Capacity

Mechanical

50,000 operations min. (on/off frequency 20 operations/min)

Electrical (resistor load)

25,000 operations min. (rated load, 7 operations/min)

Using condition

Ambient temperature/ Ambient humidity

-20~+70(with no icing ),

85%RH max. (+5~20)

The max on/off frequency

30 operations/min

Packaging & Shipping

400 PCS /CARTON

Our Services

Warranty period: 12 months.
