Germany Standard Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes
Germany Standard Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes
Germany Standard Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes
Germany Standard Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes
Germany Standard Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes
Germany Standard Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes
Germany Standard Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes
Germany Standard Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes

Germany Standard Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes

FOB Reference Price: Get Latest Price
≥10000 Meters
US $0.3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
PEX
Specification:
DN16-DN32
Length:
100-500M/ROLL
Thickness:
as required
Standard:
ISO 15875-2-2003, GB/T 18992.2-2003
Product name:
Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes
Color:
WHITE or as required
Applications:
Floor heating system plumbing system
Feature:
good flexibility;recyclable;anti-aging;anticorrosion
Working pressure:
1.25mpa,1.6mpa,2.0mpa
Connection:
compression
Packing:
40' Container
Size:
dn16-dn32
Life span:
50 Years Under Normal Conditions

Quick Details

Processing Service:
Moulding, Cutting
Place of Origin:
Tianjin, China
Brand Name:
ODM OEM
Model Number:
PEX
Specification:
DN16-DN32
Length:
100-500M/ROLL
Thickness:
as required
Standard:
ISO 15875-2-2003, GB/T 18992.2-2003
Product name:
Pex A Pipe / Pex A Pipe / Pe-xa Pipes For Floor Heating Pipes
Color:
WHITE or as required
Applications:
Floor heating system plumbing system
Feature:
good flexibility;recyclable;anti-aging;anticorrosion
Working pressure:
1.25mpa,1.6mpa,2.0mpa
Connection:
compression
Packing:
40' Container
Size:
dn16-dn32
Life span:
50 Years Under Normal Conditions
Product Description

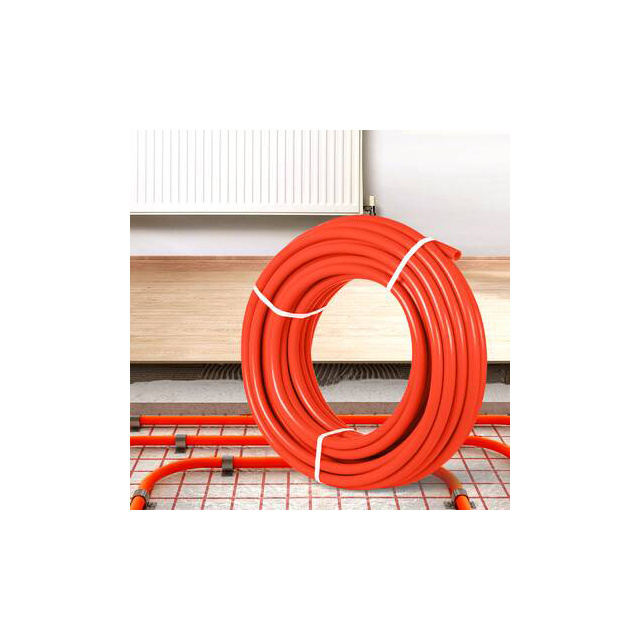

PEX PIPE
PEX is a cross-linked polyethylene (PEX) product.Cross-linked polyethylene (PEX) tubing provides excellent chemical and corrosion resistance, making it ideally suited for harsh water conditions or aggressive installation environment. Production Standard:
ISO 15875-2-2003, GB/T 18992.2-2003
Package: DN16-32 100m/200m/300m per roll DN16-50 3m/4m/6m per length
Roll length can be customized according to requirements.

Specification:

Unit:mm
Dn(mm)
Wall Thickness(mm)
S5
S4
S3.2
1.25Mpa
1.6Mpa
2.0Mpa
16
1.8
2.0
2.2
20
1.9/2.0
2.3
2.8
25
2.3
2.8
3.5
32
2.9
3.6
4.4
Features:
1.Higher chemical corrosion resistance and environmental stress cracking. 2.In conformity with potable water hygienic standard, the pipe contains non-toxic components, not being rotten and breeding bacteria. 3.Having smoothness both inner and outer walls, the pipe have featured its smallest flow resistance and low noise. 4.Broad temperature scope, long usage life up to 50 years. 5.Hardness and elasticity, higher inner pressure strength. 6.With low surface tension, it can effectively prevent scale. 7.Good bending property, easy to adjust while installation. 8.Light weight, convenient for installation and transportation.

Applications:

1.Cold and hot water system for buildings 2.air-condition system and sewage treatment system. 3. Concentration heating system in the residential houses 4. Floor radiant heating system and snow melting system of airport and traffic network.

Physical properties index:

Material Features
Density
0.951 g/cm3
Thermal conductivity
0.4 W/m·k
VICAT softening temperature
130-132 ℃
Maximum temperature of function
110 ℃
Coefficient of linear thermal expansion
0.15 mm/moK
Item
Requirements
Test parameter
Hydrostatic tension
Test temperature
time
Hydrostatic resistance
No leakage,no crack
12
2
1
4.8
95
1
4.7
95
22
4.6
95
165
4.4
95
1000
Thermal stability
No leakage,no crack
2.5
110
8760
Longitudinal retraction rate
≤3%
Parameter
120℃
Temperature
Time
en≤8mm
1h
8mm＜en≤16mm
2h
en＞16mm
4h
Test quantity
3
5000 times thermal cycle
No leakage,no crack
Temperature of cold water
Temperature of hot water
System pressure
Time/cycle of cold water
Time/cycle of hot water
20℃
90℃
0.6Mpa
15min
15min

Raw Material:

Benefits:
1. Excellent heat resistance, the safe working temperature is -70 ℃ to 110 ℃. 2. Excellent pressure resistance and creep deformation resistance. 3. Healthy and non-toxic, can be used for pipes system of pure water and drinking water. 4. Corrosion-resistant, abrasion resistant and electrical insulation. 5. Unique thermal memory. PEX pipe can be bent, twisted or crushed, and it will return to its original shape by suitable means.
