Pontoon
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Yongli
-
Dimension(L*W*H):
-
17x1.7x 0.9m
-
Weight:
-
45T
-
Certification:
-
ISO9001-2008
Quick Details
-
Dredging Depth:
-
10 m
-
Draught:
-
60 inch
-
Place of Origin:
-
China
-
Brand Name:
-
Yongli
-
Dimension(L*W*H):
-
17x1.7x 0.9m
-
Weight:
-
45T
-
Certification:
-
ISO9001-2008
Product Description

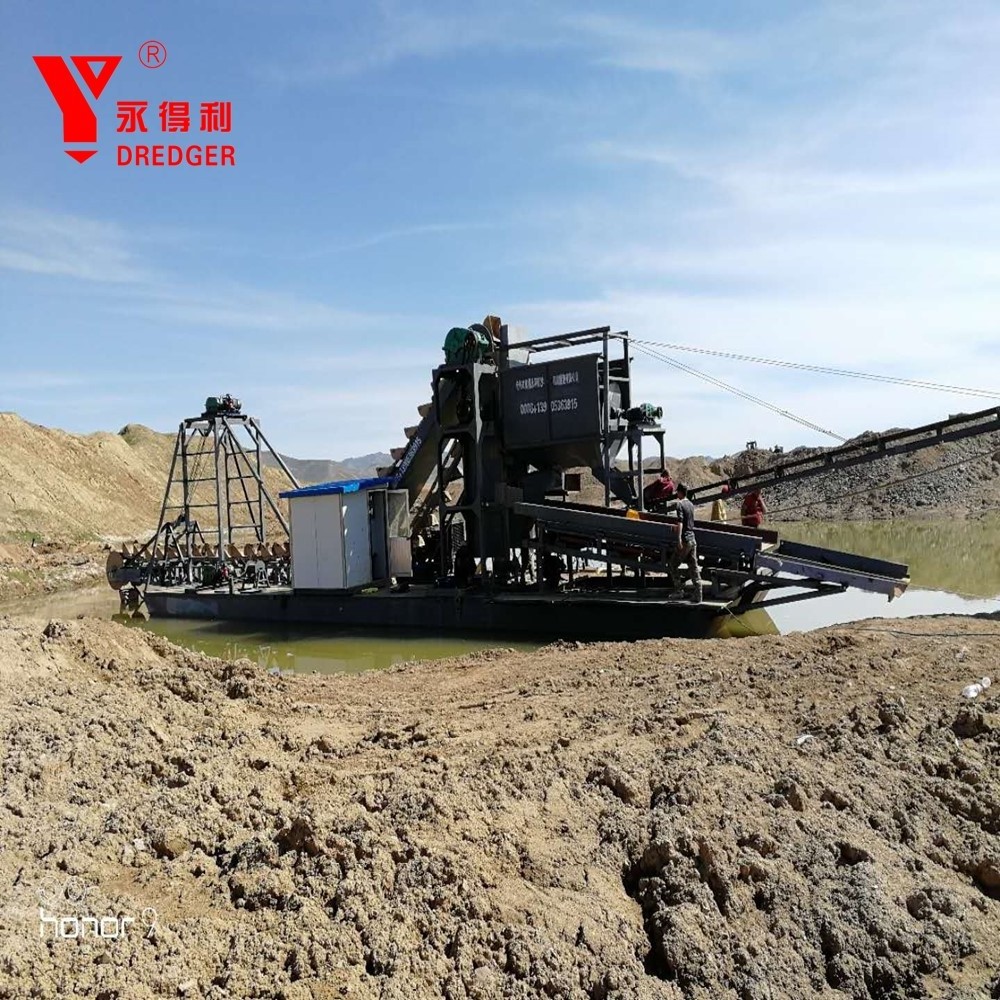

Bucket Chain Gold Dredger
Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed, then trommel clas
sifier, with
single layer or double layer screens, will separate the gravels, clay balls, water plants with need sand. The discharge system could be divided into single-discharge, multi-conveyor belts and chute.
Parameters
|
Model
|
Pontoon size(m)
|
Conveyor length(m)
|
Dredging Depth(m)
|
Capacity (m³/h)
|
Power (kw)
|
|
YLW42-46
|
13×1.5
|
12/8
|
4/5
|
60-100
|
195/1100
|
|
YLW48-53
|
14.5× 1.5
|
13/10
|
4/7
|
60-100
|
1100/1105
|
|
YLW52-58
|
15.5×1.5
|
14/11
|
4/10
|
60-100
|
1100/1110
|
|
YLW60-66
|
17×1.7
|
18/14
|
6/10
|
60-100
|
1105/1115
|
|
YLW90-130
|
25×3.5
|
18/25
|
8/28
|
80-300
|
4105/6105
|
Our Services
1. Yongli company signs a long-time after-sale service agreement with customers.
2. We provide rational and practical design according to customers' request.
3. We send engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, we provide free repair if quality problems emerge.
5. We provide free training of operation and maintenance for customers.
6. We supply high quality accessories in low price.
7. We make an excellent filing of customers for long-term following -up service.
2. We provide rational and practical design according to customers' request.
3. We send engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, we provide free repair if quality problems emerge.
5. We provide free training of operation and maintenance for customers.
6. We supply high quality accessories in low price.
7. We make an excellent filing of customers for long-term following -up service.
Details Images
Main Frame
Underwater big arm
Chain plate
Dredge bucket
Convey belt
Angle wheel
Underwater angle wheel
Need For Reply
Because we never quote any price without totally understanding customers' requirements, there are some questions needed to be mentioned as follows:
a. How many tons per hour for the dredging capacity ?
b. How many meters for the dredging depth?
c. What is the percentage/ratio of sand of sand and stone ?
d. What is the granularity of gold (gold particle size) ?
e. Do you need genset ? If yes, which brand ?
Of course, Yongli Dredging Equipment has been in the dredging business for decades of years, established itself not only as a efficient production facility, but also as a dedicated dredging knowledge center which our customers can rely on.
