- Product Details
- {{item.text}}
Quick Details
-
Size:
-
2150*4240*1370mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Kingsely
-
Power:
-
1.5kw
-
Product name:
-

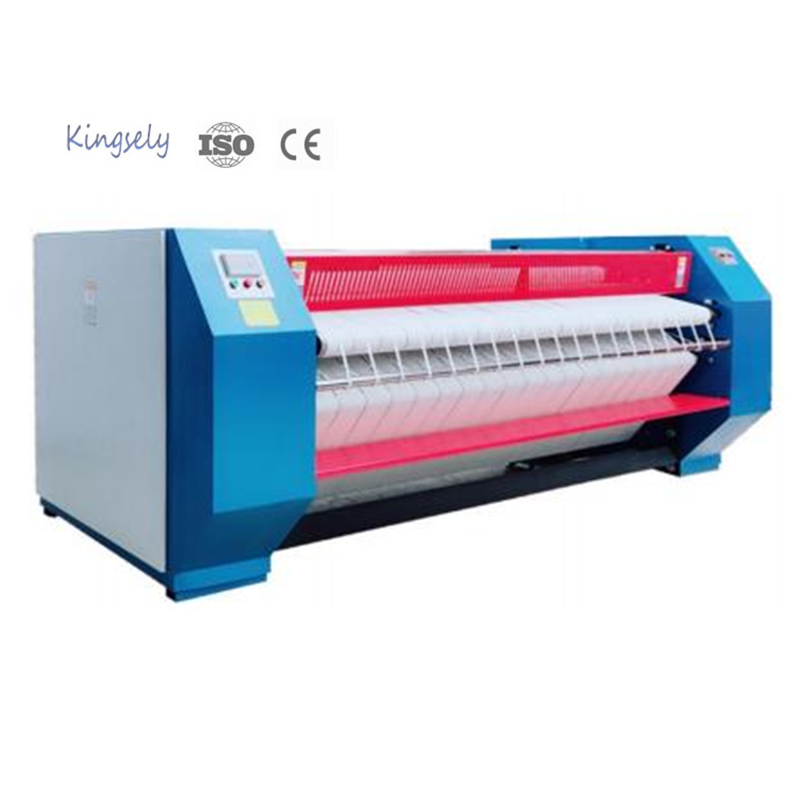

Industrial Ironing Machine
-
Ironing speed:
-
0- 12 m/min
-
Ironing width:
-
3000mm
-
Steam pressure:
-
0.4-0.6mpa
-
Top ironing temp:
-
158℃
-
Steam consumption:
-
160kg/h
-
size:
-
1370*2150*4240mm
-
Roller material:
-
stainless steel
-
Heating power:
-
72kw
-
Brand:
-
Kingsely
Quick Details
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Weight:
-
2040kg
-
Size:
-
2150*4240*1370mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Kingsely
-
Power:
-
1.5kw
-
Product name:
-
Industrial Ironing Machine
-
Ironing speed:
-
0- 12 m/min
-
Ironing width:
-
3000mm
-
Steam pressure:
-
0.4-0.6mpa
-
Top ironing temp:
-
158℃
-
Steam consumption:
-
160kg/h
-
size:
-
1370*2150*4240mm
-
Roller material:
-
stainless steel
-
Heating power:
-
72kw
-
Brand:
-
Kingsely
Product Description
1.Rolls are made from 304 stainless steel, shaft using finely drawn steel,stainless steel outer tube, greatly extend the service life of the machine;
2.The case of Ironing machine sides rack uses high-strength high-quality steel plate welded together, so that the equipment to ensure efficient and stable operation at high load operation;
3.Use variable frequency control, the speed can be adjusted depending on the linen;
4.Equipped with automatic belt tensioner mechanism, according to the thickness and other conditions of energy supply and fabric conveyor belt tensioner automatically to the best condition, improve the quality of ironing
5.Feeding cloth was equipped with a safety shield as long as pushing the shutter, the machine will stop immediately to ensure the safety of operating personnel;
6.Modular cabinet design, so that the machine can be easily upgraded Roller quantity according to customer requirements;
7.Big steam roller end with a lubricant filling device can ensure that the main bearing lubrication, with a safety stop switch;
8.Optional accessories: ironing machine feed table and linen table cloth then, can be selected according to different requirements of customers.
Specification
|
Model
|
|
YPI-8030
|
YPII-8030
|
|
Max. ironing width
|
mm
|
3000
|
3000
|
|
Ironing speed
|
m/min
|
0- 12
|
0- 12
|
|
Top ironing temp.
|
C
|
180
|
158
|
|
Steam pressure
|
mpa
|
|
0.4-0.6
|
|
Steam consumption
|
kg/h
|
|
160
|
|
Heating power
|
kw
|
72
|
|
|
Motor power
|
kw
|
1.5
|
1.5
|
|
External dimension
|
H
|
1370
|
1370
|
|
|
D
|
2150
|
2150
|
|
|
W
|
4240
|
4240
|
|
Machine weight
|
kg
|
2040
|
2040
|
