Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZIYE
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9000*3200*2200mm
-
Weight:
-
6000 kg, 6000kg
-
PLC Brand:
-
none
-
Max.Diameter of Unwinding:
-
1400mm
-
Max. Cutting Width:
-
1100mm
-
Cutting Length:
-
A4/A3(297*210mm,297*420mm)
-
Cutting Speed:
-
70-180 times/min
-
Paper GSM:
-
60-120g
-
Cutting Precision:
-
±0.2mm
-
Total Power:
-
12kw
-
Machine Size(L*W*H):
-
9000*3200*2200mm
-
Name:
-
Sheet Cross Cutting Machine A4 Paper Cutter With Packaging Machine
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
70-180times/min
-
Max. workable width:
-
1100mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZIYE
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9000*3200*2200mm
-
Weight:
-
6000 kg, 6000kg
-
PLC Brand:
-
none
-
Max.Diameter of Unwinding:
-
1400mm
-
Max. Cutting Width:
-
1100mm
-
Cutting Length:
-
A4/A3(297*210mm,297*420mm)
-
Cutting Speed:
-
70-180 times/min
-
Paper GSM:
-
60-120g
-
Cutting Precision:
-
±0.2mm
-
Total Power:
-
12kw
-
Machine Size(L*W*H):
-
9000*3200*2200mm
-
Name:
-
Sheet Cross Cutting Machine A4 Paper Cutter With Packaging Machine
Product Description

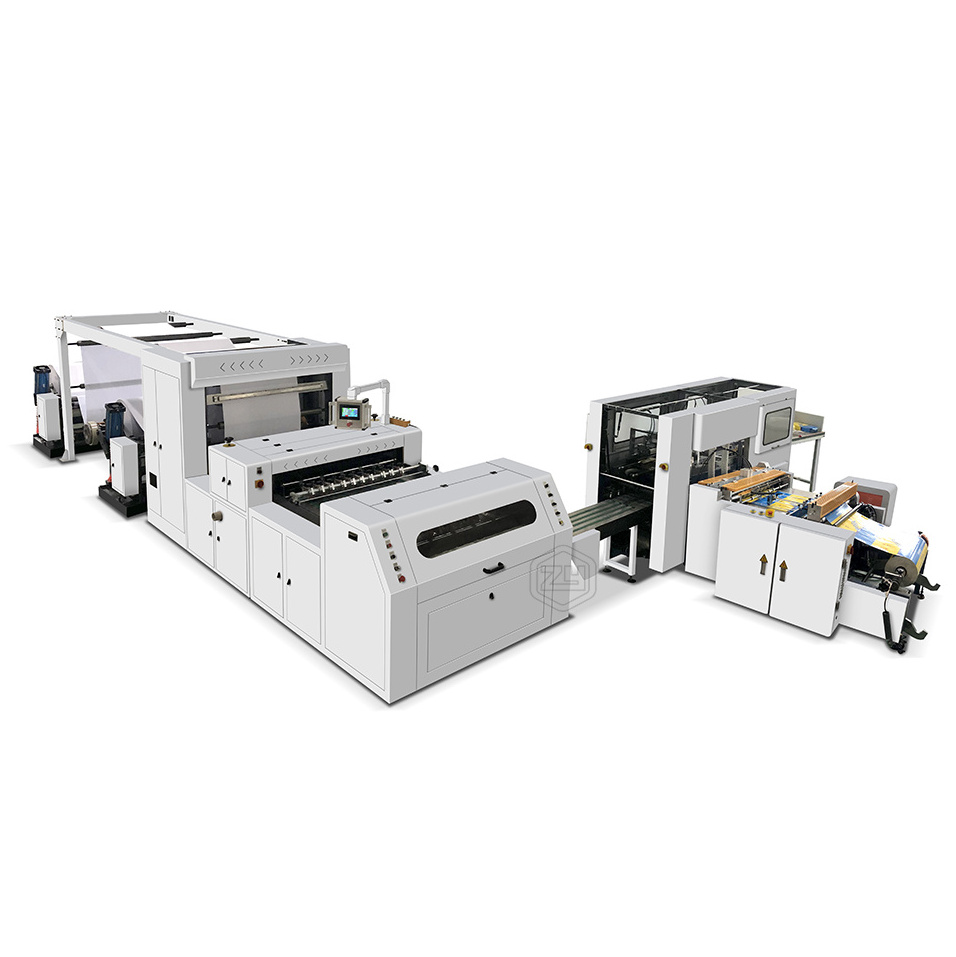

DCUT1100D-A4 Double Roll Automatic Sheet Cross Cutting Machine A4 Paper Cutter With Packaging Machine
This machine suitable for a lot of paper, A4/A3 paper&film laminated etc best jumbo roll cutting machine.
Details Images
Samples
Product Paramenters
|
Machine Model
|
DCUT1100D-A4
|
|
Max.Diameter of Unwinding
|
φ1400mm
|
|
Max. Cutting Width
|
1100mm
|
|
Cutting Length
|
A4/A3(297*210mm,297*420mm)
|
|
Cutting Speed
|
70-180times/min
|
|
Paper GSM
|
60-120g
|
|
Cutting Precision
|
±0.2mm
|
|
Ream Height(mm)
|
500pcs
|
|
Total Power
|
12kw
|
|
Machine Weight
|
6000kg
|
|
Compressed air(Mpa)
|
0.6-0.8(Customer's own responsibility)
|
|
Main power source
|
380V/50HZ,3phase 4 wires
|
|
Machine Size(L*W*H)
|
9000×3200×2200（mm）
|
|
Machine Model
|
Packaging Machine
|
|
Working Size
|
210mm×297mm
|
|
Ream Packing Speed
|
8-10reams/min (depends on the paper quality)
|
|
Wrapping paper feeding & cutting speed
|
8-10 times/min
|
|
Ream height
|
30mm—60mm
|
|
Paper grade
|
Copy paper, writing paper, offset paper etc.
|
|
paper thickness
|
60—100gsm
|
|
Wrapping paper size
|
550-560mm×386mm
|
|
Roll core dia. of wrapping paper
|
3″（76.2mm）
|
|
Roll dia. Of wrapping paper
|
400—700mm
|
|
Wrapping paper
|
Laminated paper, coated paper, offset paper etc.
|
|
Requirement for wrapping paper
|
Stable speed, qualified paper, without splice in roll
|
|
Main Power
|
3 phase 4wire 380V 50HZ
|
|
Control Power
|
220V AC/22V DC
|
|
Main Motor
|
6.5KW
|
|
Gluing unit power
|
3.7KW
|
|
Air pressure
|
0.6-0.8mpa
|
|
Overall Size
|
4530×3050×1450mm
|
|
Weight
|
2T
|
