Quick Details
-
Product name:
-
magnetic window sensor
-
Operating gap:
-
15mm
-
Contact form:
-
form A
-
Contact type:
-
NC (normally closed)
-
Material:
-
ABS plastic
-
Mounted:
-
flush mounted
-
Usage:
-
Magnetic Sensor
-
Theory:
-
Current Sensor
-
Warranty:
-
12 Months
-
Certificate:
-
CE,ROHS, EN50131
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
5CELEC
-
Model Number:
-
MCS-33T
-
Product name:
-
magnetic window sensor
-
Operating gap:
-
15mm
-
Contact form:
-
form A
-
Contact type:
-
NC (normally closed)
-
Material:
-
ABS plastic
-
Mounted:
-
flush mounted
-
Usage:
-
Magnetic Sensor
-
Theory:
-
Current Sensor
-
Warranty:
-
12 Months
-
Certificate:
-
CE,ROHS, EN50131
Recommend Products
Window contacts
Flush mounted door contacts
Surface mounted door contacts
Products Description

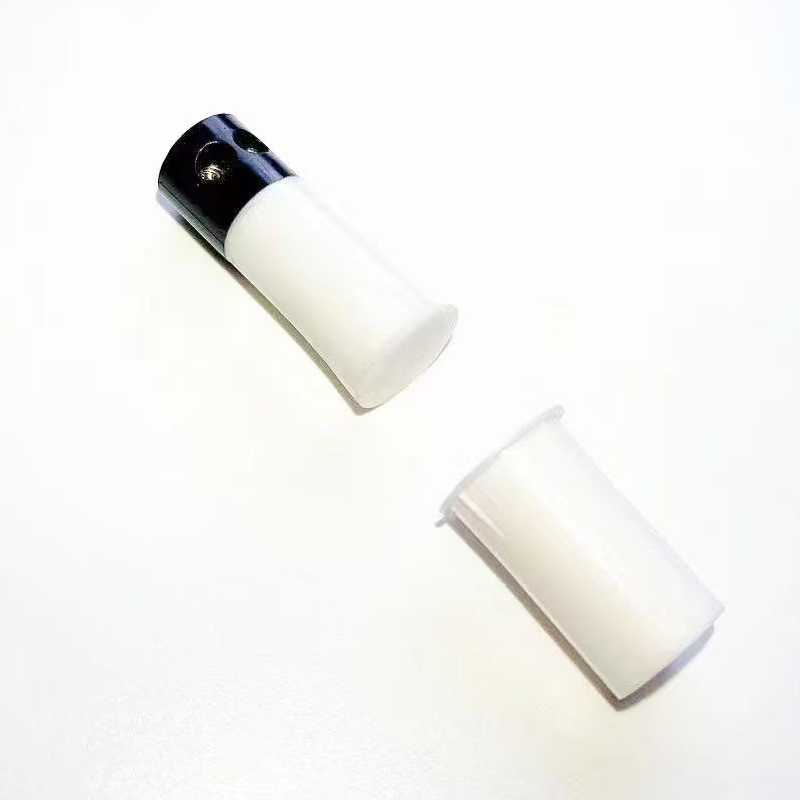

Recessed mounted door magnetic contacts switch
MCS-33T
Magnetic contact is widely used for alarm system(panel) to detect state of door or window.
It consists of reed switch part and magnet part .
NC type we define:
When door is closed,reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by magnet and switch OFF, then output signal to panel or trigger alarm.
|
Product name
|
cylindrical magnetic contact / window sensor/ short plastic case sensor
|
|
Model NO.
|
MCS-33T
|
|
Installation
|
flush mounted / press fit
|
|
Operation gap
|
15MM
|
|
Output type
|
NC
|
|
Housing material
|
ABS
|
|
Housing color
|
white / brown
|
|
Other color
|
can be customized
|
|
Connection
|
screw terminal
|
|
Switching voltage
|
100VDC Max.
|
|
Switch current
|
0.5A Max.
|
|
Contact rating
|
10W Max.
|
|
Switch working life
|
100000000 times
|
|
Working temperature
|
-20~80℃
|
|
Customized
|
wires type / wires length / others
|
Product packaging
|
Package
|
20pcs/bag
|
|
Carton package
|
1500pcs
|
|
G.W.
|
20kgs/ctn
|
|
N.W.
|
19.40kgs/ctn
|
|
Carton size
|
38*30*30CM
|
|
Shipment way
|
By sea/ air/ DHL/FEDEX/UPS/TNT express etc.
|
Installation drawing
