Quick Details
-
Voltage:
-
380V
-
Rated Power:
-
7.5kw
-
Dimension(L*W*H):
-
3130x1530x1600mm
-
Year:
-
2021
-
steel cutting machine:
-

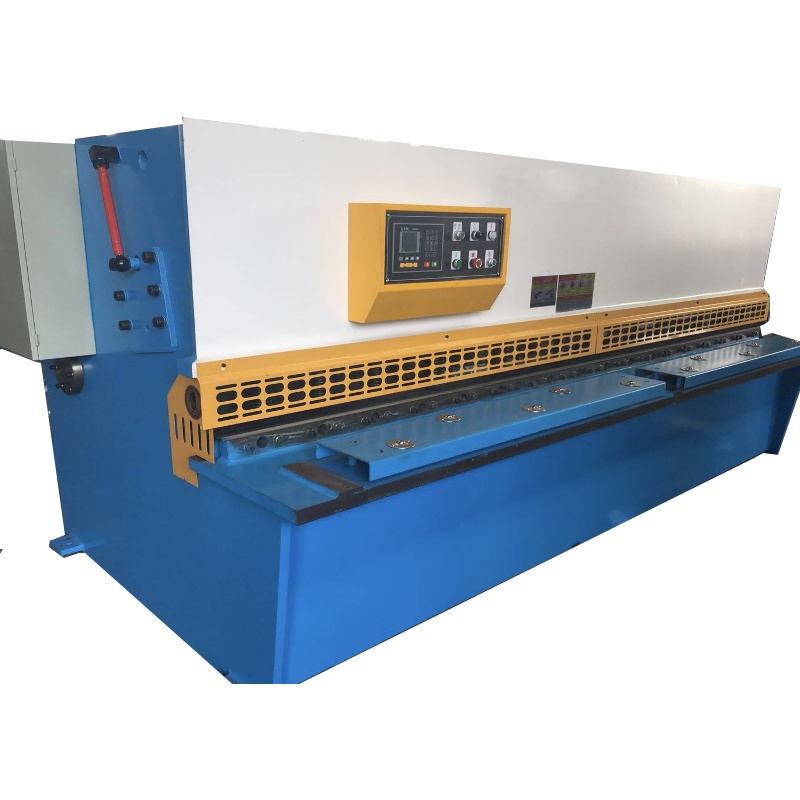

Hydraulic swing beam sheet metal shearing and cutting machine
-
Max Cutting thickness:
-
6mm
-
Max cutting length:
-
2500mm
-
Control system:
-
Estun E21 NC Control
-
cutting angel:
-
1.5degree
-
throat deepth:
-
150mm
-
warranty:
-
2years
-
Weight:
-
4000kg
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WORLD
-
Core Components:
-
other
-
Voltage:
-
380V
-
Rated Power:
-
7.5kw
-
Dimension(L*W*H):
-
3130x1530x1600mm
-
Year:
-
2021
-
steel cutting machine:
-
Hydraulic swing beam sheet metal shearing and cutting machine
-
Max Cutting thickness:
-
6mm
-
Max cutting length:
-
2500mm
-
Control system:
-
Estun E21 NC Control
-
cutting angel:
-
1.5degree
-
throat deepth:
-
150mm
-
warranty:
-
2years
-
Weight:
-
4000kg
-
Certification:
-
ISO
|
Item
|
Unit
|
QC12Y-4x3200
|
QC12Y-6x2500
|
QC12Y-8x2500
|
QC12Y-8x3200
|
QC12Y-10x3200
|
QC12Y-12x3200
|
|
Max. cutting thickness
|
mm
|
4
|
6
|
8
|
8
|
10
|
12
|
|
Max. cutting width
|
mm
|
3200
|
2500
|
2500
|
3200
|
3200
|
3200
|
|
Tensile strength of plate to be cut
|
N/mm2
|
450
|
450
|
450
|
450
|
450
|
450
|
|
Cutting angle
|
deg
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
2
|
|
Travel distance of back gauge
|
mm
|
20-600
|
20-600
|
20-600
|
20-600
|
20-600
|
20-800
|
|
Throat depth
|
mm
|
150
|
150
|
150
|
150
|
150
|
150
|
|
Stroke speeds
|
spm
|
14
|
15
|
14
|
12
|
10
|
10
|
|
Main motor
|
kw
|
5.5
|
7.5
|
7.5
|
7.5
|
15
|
15
|
|
Voltage
|
|
380V/50HZ/3PH
|
380V/50HZ/3PH
|
380V/50HZ/3PH
|
380V/50HZ/3PH
|
380V/50HZ/3PH
|
380V/50HZ/3PH
|
|
Overall dimension (LxWxH)
|
mm
|
3840
|
3040
|
3040
|
3860
|
3860
|
4000
|
|
|
|
1500
|
1650
|
1700
|
1700
|
1700
|
1800
|
|
|
|
1600
|
1700
|
1700
|
1700
|
1700
|
1700
|
|
Weight (approximate)
|
kg
|
4600
|
4800
|
5600
|
6200
|
8000
|
10800
|
1. A fully welded steel construction with high strength and rigidity.
2. Front-controlled back gauge by power fast-adjustment and manual fine-adjustment with counter display.
3. Fast-adjusting device for blade clearance.
4. Reliable protection barrier with counter.
