Quick Details
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lingyue
-
Weight (KG):
-
12
-
Product name:
-

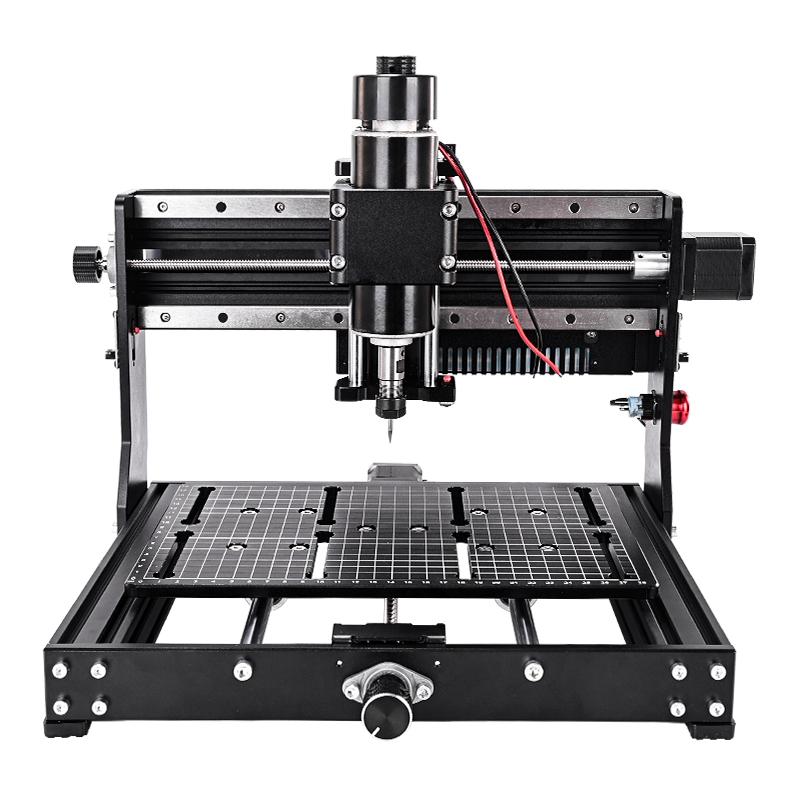

CNC 3020Plus
-
Function:
-
Cutting Engraving Non-metal Materials
-
Control System:
-
GRBL software
-
Working Area:
-
300*200*73mm
-
Construction:
-
Aluminum
-
Power Supply:
-
48V 10.4A
-
Interface:
-
USB
-
Supported System:
-
Windows XP,win 7,win8,win10
-
Keywords:
-
High powerful Spindle Router
-
Application:
-
Acrylic MDF Plastic Fabric Wood
Quick Details
-
Working Table Size(mm):
-
300*200*73cm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 11000 rpm
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lingyue
-
Weight (KG):
-
12
-
Product name:
-
CNC 3020Plus
-
Function:
-
Cutting Engraving Non-metal Materials
-
Control System:
-
GRBL software
-
Working Area:
-
300*200*73mm
-
Construction:
-
Aluminum
-
Power Supply:
-
48V 10.4A
-
Interface:
-
USB
-
Supported System:
-
Windows XP,win 7,win8,win10
-
Keywords:
-
High powerful Spindle Router
-
Application:
-
Acrylic MDF Plastic Fabric Wood
Specification
|
Model
|
CNC 3020 Plus
|
|
Working Area
|
300*200*73mm
|
|
Spindle Hole Diameter
|
52mm
|
|
Material
|
All Aluminum
|
|
Spindle
|
500W
|
|
Stepper Motor
|
42 x 48mm Stepper motor
|
|
Laser Choose
|
5.5W, 20W, optional
|
|
Application
|
Wood /MDF/Plastic/Leather/Stainless Steel / Aluminum / Iron
|
|
Processing instructions
|
CNC: G-CODE, TAB, NC, NCC files
Laser G-CODE, JPG, DXF files
|
Details Images
Integrated Scale Aluminum Platform
One-piece machined and molded aluminum design ensures flatness and strength of the platform.
Precise hand wheel:
Easy to adjust the Z axis height manually.The distance of XY axis, It does not have to debug repeatedly in Candle.
High rigidity spindle holder and new linear guide structure, the 3020Plus can easily mill on a wider range of materials with high precision
Variety Material Application
Recommended Engraving Materials:
6061 Aluminum, Leather, Copper, Plexiglass, Brass, Vinyl, Graphite Blocks, Resin, Sterling Silver, Nylon, PCB, POM, PVC, Wood, Chipboard, MDF, Laminated, Veneers, Cast Acrylic, Carbon Fiber, Resin Wood
Available Laser Modules
2 in 1 CNC router, which means you can use both carving knife and also laser in one CNC machine
About Operation
It is high performance, open-source software for controlling movement.Compatible with Lighrburn and Lasergrble.
Packing & Delivery
Package List
1 x 3020PLUX CNC Router Machine (Some parts need to be assembled)
1 x Extension Rod with ER11 Collet (3.175mm)
4 x Plate Clamps
10 x 20 Degree Engraving V-Bit
1 x Offline Controller
1 x Emergency Stop
1 x Z-Probe
1 x English Manual
