Generally,
it works together with T/Y/F type splitter in one led lighting cable layout solution.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shenzhen China
-
Brand Name:
-
AOHUA
-
Model Number:
-
2~3PIN P68 Power AC/DC Connector
-
Shell Material:
-
Nylon PA66 UL94-V0
-
Contact Material:
-
Gold-plated Brass
-
Interface connection way:
-
Threaded /Quick/Screw fixing Type
-
Color:
-
Black/Black+Blue/Yellow
-
Operating Rating:
-
-40 ℃ ~+105℃
-
Waterproof Rate:
-
IP67/IP68
-
Wire Connecting Way:
-
Screw Fixing Type
-
Function:
-
Airtight,waterproof,dustproof
-
MOQ:
-
As your needs
-
Rating:
-
300V,15A 20a
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Power,LED Lamp modules,electrical equipment,etc...
-
Gender:
-
No Gender
-
Place of Origin:
-
Shenzhen China
-
Brand Name:
-
AOHUA
-
Model Number:
-
2~3PIN P68 Power AC/DC Connector
-
Shell Material:
-
Nylon PA66 UL94-V0
-
Contact Material:
-
Gold-plated Brass
-
Interface connection way:
-
Threaded /Quick/Screw fixing Type
-
Color:
-
Black/Black+Blue/Yellow
-
Operating Rating:
-
-40 ℃ ~+105℃
-
Waterproof Rate:
-
IP67/IP68
-
Wire Connecting Way:
-
Screw Fixing Type
-
Function:
-
Airtight,waterproof,dustproof
-
MOQ:
-
As your needs
-
Rating:
-
300V,15A 20a
AOHUA Factory is established in 2008,specialized in outdoor led lighting waterproof cables and connectors with more than 15 years rich experience in this industry,with products up to 18 series and 3000 varieties,there are some hot selling items as below:
|
Assembly Connector
|
Wire to wire /Wire to panel waterproof connector,L/T screw type connector
|
|
Over-mold Connector
|
Nylon/PVC /Metal /Aviation waterproof connector,DC connector
|
|
T Connector
|
Over-mold T waterproof connector
|
|
Y Connector
|
Over-mold Y waterproof connector
|
|
Distributor Connector
|
M15/M19/M20 Series(1to2/3/4/5/6) LED waterproof connector
|
Application
It is widely used in indoor/outdoor LED lighting devices,city lighting, plant lighting,high speed rail cars, livestock breeding,electric heating,ships,environmental protection recovery equipment, medical devices,automobiles,driving control,power batteries,5G station equipment and so on.

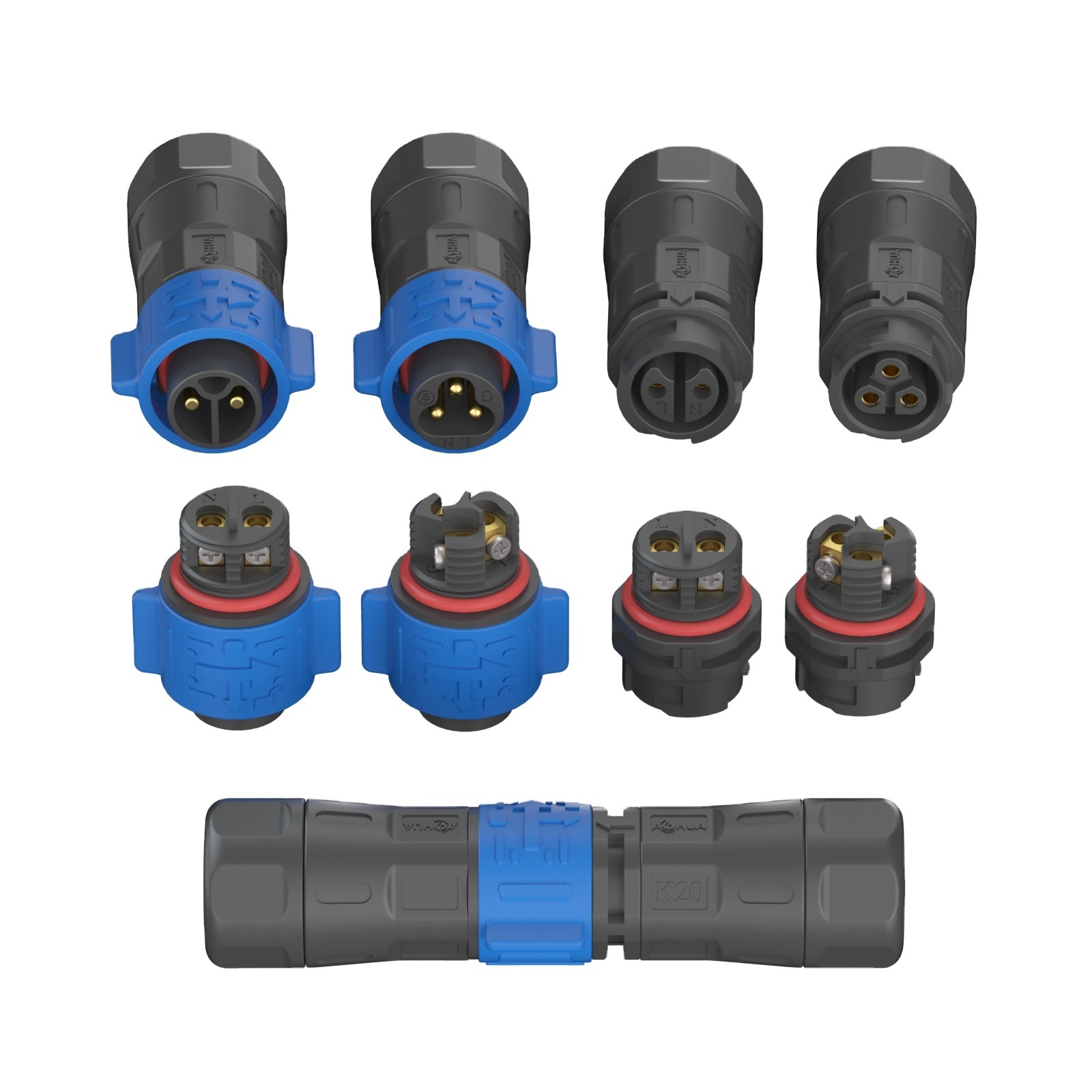

M20 Assembly Cable Connectors with Screw Fixing/Quick Lock/Solder type 15A 20A Adapter IP68 LED Power AC/DC Connector
Pls note that We can sale this products to all over the word.
What will you get from us?
There are 3 types terminal to meet your needs.
The wire connection methods divided into: Screw Fixing type,Solder type,and Puch Quick lock type.
Docking ways are Threaded type,Self locking type.
It is very easy to install,and the Self-lock type is not loose once docking correctly.
Shell Material: Nylon PA66 with UL94-V0 retardant flame.
Pins Contact Material:Gold-plated Brass.
Certificates: IP68,CE,UL,ISO9001,RoHS.
Provide OEM/ODM and Customized service.(want more information,pls consult our sales directly,will reply you 24/7 hours).
There are 3 types terminal to meet your needs.
The wire connection methods divided into: Screw Fixing type,Solder type,and Puch Quick lock type.
Docking ways are Threaded type,Self locking type.
It is very easy to install,and the Self-lock type is not loose once docking correctly.
Shell Material: Nylon PA66 with UL94-V0 retardant flame.
Pins Contact Material:Gold-plated Brass.
Certificates: IP68,CE,UL,ISO9001,RoHS.
Provide OEM/ODM and Customized service.(want more information,pls consult our sales directly,will reply you 24/7 hours).
|

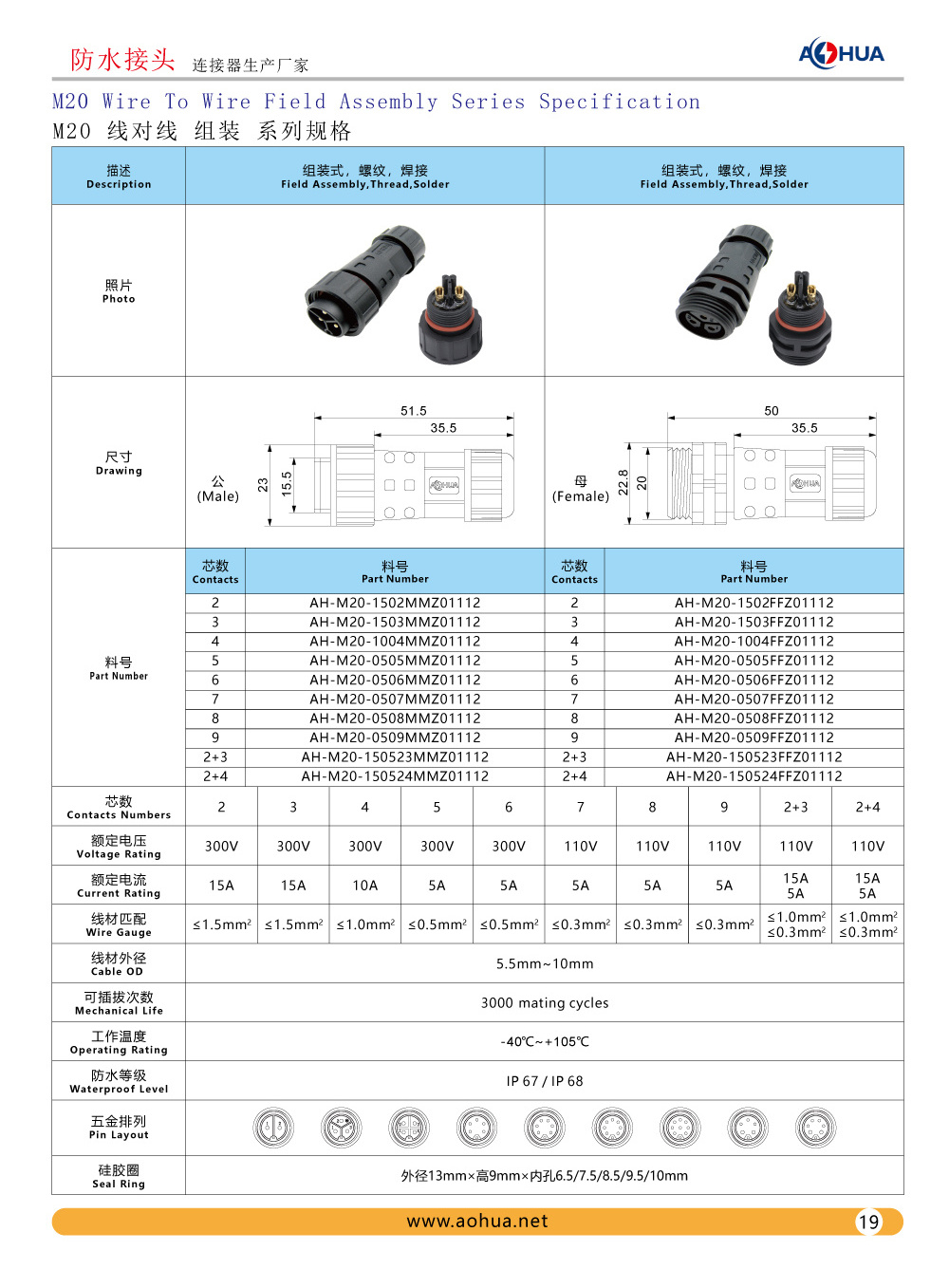

Cable OD
|
5.5mm~13.0mm
|
|
Operating Rating
|
-40ºC~+105ºC
|
|
Waterproof Level
|
IP67/IP68
|
|
Seal Ring
|
13*9*6.5/7.58.5/9.5/10/12/13/15mm
|
Before quotation, please tell us the cable details, thanks
1.Contact pin,such as : 2Pin...
3.Cable Wire size,such as: 0.5mm2...
3.Cable Wire size,such as: 0.5mm2...
4. Cable OD,such as :5mm
Then we can select the correct connector and seal ring for you.
Then we can select the correct connector and seal ring for you.
Cases
Terminal wiring cable Show:
Our Advantages
1.Professional connector manufacturer, with a strong and professional R&D team.
OEM&ODM service is available.
2.we can control the quality and lead time, factory direct sales, quality assurance and reasonable price.
3. One-to-one after-sales service, please feel free to contact us if you have any questions.
1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,we have been cooperating with many domestic and foreign engineering and enterprises. we pay great attention to the quality of products.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want. We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,we have been cooperating with many domestic and foreign engineering and enterprises. we pay great attention to the quality of products.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want. We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
