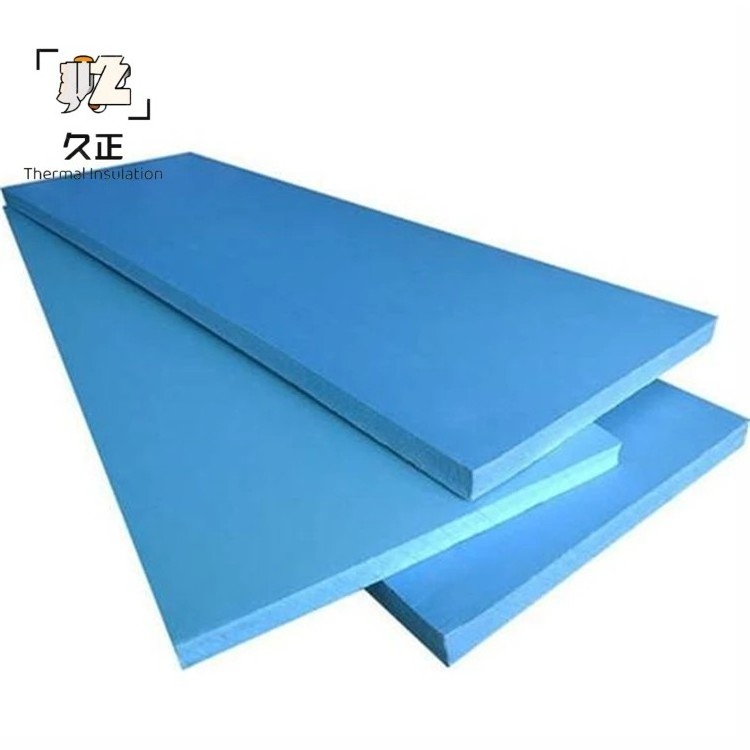

100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel
100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel
100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel
100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel
100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel
100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel
100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel
100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel

100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel

FOB Reference Price: Get Latest Price
≥5 Cubic meter
US $90
≥65 Cubic meter
US $85
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Exterior Wall Roof Insulation, Exterior/interior Wall Roof Under-floor Insulation
Design Style:
Modern
Place of Origin:
Hebei, China
Brand Name:
JZ
Model Number:
JZ-XPS-003
Type:
XPS Foam Board Panel
Product name:
XPS Foam Board Panel
Compress Strength:
350-1000Kpa
Density:
32-45 Kg/m3
Color of XPS:
Blue,Pink,Green,White,Black.Customised
Heat Conductivity Coefficient:
≤0.028W/(M.K)
Thickness:
5/6/10/12/20/30/50/100/150/200mm
Surface:
Skin / Without skin / Grooved / Smooth Planing / Roughing
Fire Rating:
B1, B2, B3
Size:
600mm/900mm/1200mm

Quick Details

Warranty:
More than 5 years
After-sale Service:
Online technical support, Other
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Others
Application:
Exterior Wall Roof Insulation, Exterior/interior Wall Roof Under-floor Insulation
Design Style:
Modern
Place of Origin:
Hebei, China
Brand Name:
JZ
Model Number:
JZ-XPS-003
Type:
XPS Foam Board Panel
Product name:
XPS Foam Board Panel
Compress Strength:
350-1000Kpa
Density:
32-45 Kg/m3
Color of XPS:
Blue,Pink,Green,White,Black.Customised
Heat Conductivity Coefficient:
≤0.028W/(M.K)
Thickness:
5/6/10/12/20/30/50/100/150/200mm
Surface:
Skin / Without skin / Grooved / Smooth Planing / Roughing
Fire Rating:
B1, B2, B3
Size:
600mm/900mm/1200mm
100mm Thickness Flame Restraint Building Thermal Insulation Board XPS Foam Board Panel
Product Description
XPS Foam Board is an superior insulation Material,excellent Vapor Barrier Property,and extremely low water absorption under high
humidity environments.Extruded Polystyrene Foam starts as Soild pellets of polystyrene resin,We first feed the plastic pellets
into an extruder where they are melted and mixed with critical additives to form a viscous liquid.Then we inject a blowing agent
to expand the plastic product.Under well-controlled heat and pressure,the plastic mixture is forced through a mould to form the
desired shape,Finally the rigid foam is trimmed to a custom size and this is the Final XPS Foam Board.It is Widely used in Wall
insulation,low-temperature storage facilities,parking plastform,the airport runway,construction of Concrete roof and the structure
of the rood,highways.
Details Images
High-quality XPS insulation boards are made of polystyrene resin as the raw material, and it is important for buyers to note whether the product is made of this material when selecting it.
Jiuzheng----100%Virgin Environmental Eco Friendly Material
Because of its robustness and water resistance,rigid foam insulation board like XPS insulation Board typically lasts 100 years or more,which means you never have to worry about replace it.
SL
SS
RC
Planning
Hot Pressing
Grooving
Specification
Color
Blue, Yellow, White,Pink Can customized
Length
1.2m, 2.4m, 2.5m or Customization
Width
600mm, 1200mm or Customization
Thickenss
6mm-200mm
Surface
Smooth, Roughen, Grooving, Embossing
Compressive Strength
150KPa-1000KPa
Density
32~50Kg/m3
Thermal conductivity
0.027-0.036w/mk
Compressive strength
150KPa-1000KPa
Water absorption
≤1.00% Vol-%
Capillarity
nil
Fire Rating
B1, B2, B3
Coefficinet of linear thermal expansion
0.07mm/mK
Temperature limits
-50℃~70℃
Product Pictures
Packing & Delivery
Application
XPS extruded insulation board(XPS Foam Board)has superior insulation performance, excellent vapor barrier property, and extremely low water absorption under high humidity environments.
1, Building Insulation and Decoration Field---
* Roof insulation system
* Wall insulation system
* Floor insulation system
* Basement insulation system
* All kinds of composite sandwich panels
* Decorative molding
* Decorate condole top
2, Cold Storage Purification Engineering
3, Civil Engineering
