Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lechuan
-
Model Number:
-
FC-IDC-B-2.0-WS/WOS-B/G-XX
-
Product name:
-
IDC Socket
-
Position:
-
6-60
-
Pitch:
-
1.27x1.27MM
Quick Details
-
Type:
-
IDC SOCKET
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lechuan
-
Model Number:
-
FC-IDC-B-2.0-WS/WOS-B/G-XX
-
Product name:
-
IDC Socket
-
Position:
-
6-60
-
Pitch:
-
1.27x1.27MM
|

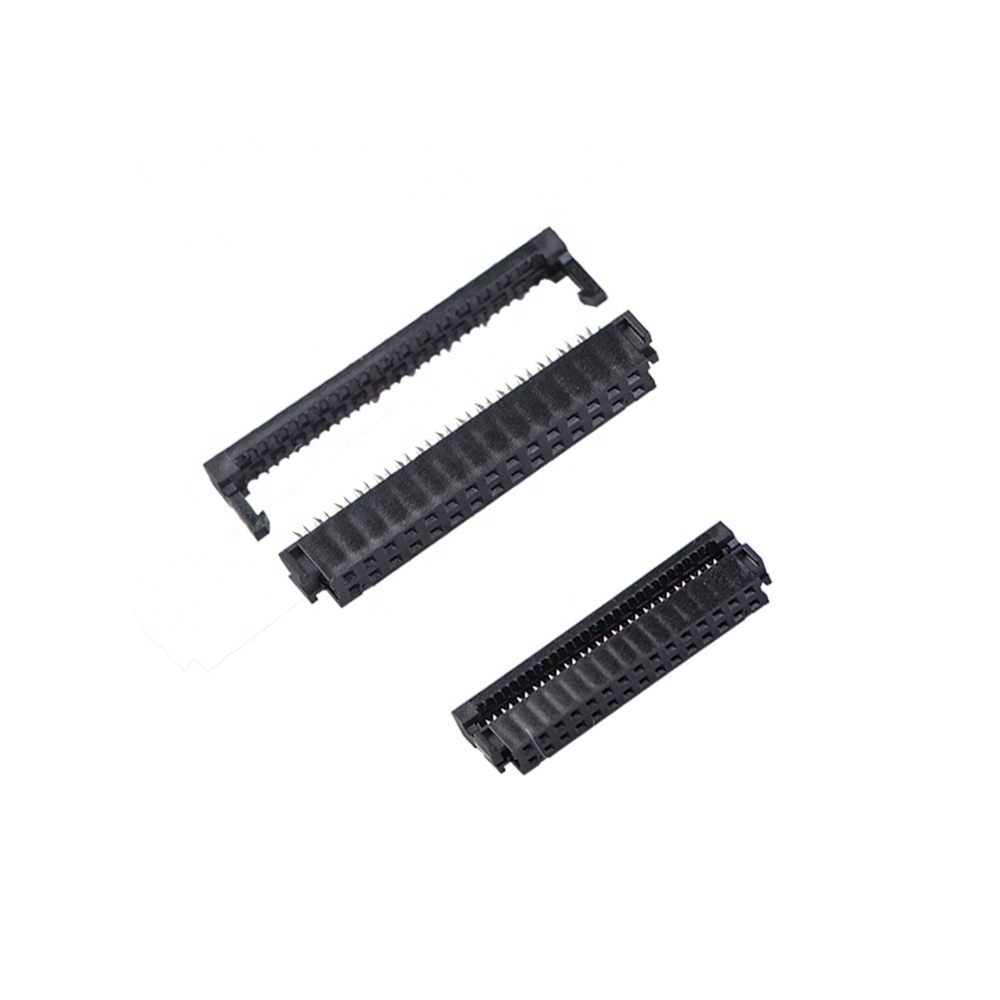

Product Name
|
IDC Socket
|
|
Material
|
Insulator:
Glass filled PBT UL94V-0 ,Black
|
|
|
Contacts: Phosphor Bronze
|
|
|
Plating: Contact Gold plating over Nickel
|
|
Electrical Characteristic
|
Contact resistance: 20mΩmax. at DC 100mA
|
|
|
Insulator resistance: 1000MΩmin. at 500V DC
|
|
|
Dielectric Withstanding Voltage: 500V AC/rms 50Hz For 1 minute
|
|
|
Current Rating: 1 AMP
|
|
|
Cable: 0.635mm (0.025") pitch flat cable
|
|
Environment
|
Operating Temperature: -40℃～+105℃
|
