Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BEC Laser
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
84 KG
-
Core Components:
-
Laser generator
-
Product name:
-
lazer marking machines for pet bottle
-
Laser power:
-
10W/30W/60W optional
-
Machine type:
-
data printer for pet bottle
-
Keywords:
-
fiber laser printer
-
Laser source:
-
Synrad
-
Laser wavelength:
-
9300nm-10600nm
-
Minimum line width:
-
0.02mm
-
Marking area:
-
110*110mm / 160*160mm optional
-
Repeated accuracy:
-
±0.003mm
-
Weight:
-
125KG
Quick Details
-
Working Accuracy:
-
0.005mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
CO2
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BEC Laser
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
84 KG
-
Core Components:
-
Laser generator
-
Product name:
-
lazer marking machines for pet bottle
-
Laser power:
-
10W/30W/60W optional
-
Machine type:
-
data printer for pet bottle
-
Keywords:
-
fiber laser printer
-
Laser source:
-
Synrad
-
Laser wavelength:
-
9300nm-10600nm
-
Minimum line width:
-
0.02mm
-
Marking area:
-
110*110mm / 160*160mm optional
-
Repeated accuracy:
-
±0.003mm
-
Weight:
-
125KG

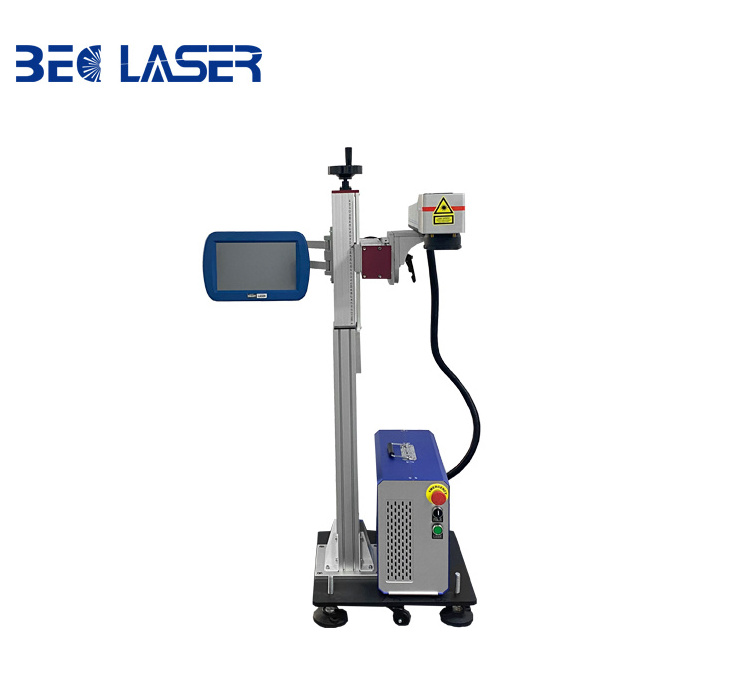

CO2 laser marking machine data printer lazer marking machines for pet plastic bottle
Youtube link: https://youtu.be/iufbo70Kz5g
Product Introduction:
CO2 laser marking machine data printer lazer marking machines for pet plastic bottle is suitable for cables, PE pipes, the it is especially suitable for automatic production line of date code or bar code. According to customer's different needs matching fiber, CO2, UV and other models and automatic assembly line work bench to meet customer requirements of flight standards system, to achieve assembly line operations to improve production efficiency.
Compared with ink jet printer, laser marking machine has functions of no consumption , no pollution , no noise , energy saving and environmental protection .
Product Advantages:
BEC Laser Printers: BEC Laser coding solution is use high energy density aggregation in carved the underlying surface, within a very short period of time make the surface of biomass gasification by controlling the effective displacement of the laser beam, precisely burning and carving out exquisite patterns or characters. Reduce production costs , no consumption , high efficiency, permanent mark to ensure that the product can be traced back . Enhance the additional value and brand effect. Performance is more stable, work continuously for 24 hours and the maintenance time of the laser is more than 100,000 hours. Environmentally friendly non-toxic and no noise pollution.
Ink Jet Printers: The use for marking on the food and medical by inkjet printing with some problems such as large number of special ink consumption , high cost ; ink jet printer often appear ink clogging nozzle , long time professional maintenance staff maintenance; single style of the products. T he mark is easy to be erased, it has effect to product credibility.
Technical Parameters:
| Model | BEC-RF10FS | BEC-RF3 0FS | BEC-RF6 0FS |
| Power | 10W | 30W | 60W |
| Wavelength | 9.3um~10.6um | ||
| Minimum Line Width | 0.1mm | ||
| Total Power | <500W | <500W | <2000W |
| Beam Quality | <1.3M2 | <1.5M2 | <1. 5 M2 |
| Spot Diameter | 0.03mm | ||
| Frequency | 1-50KHz | 1-50KHz | 1-80KHz |
| Power Adjustment Range | 10-100% | ||
| Engraving Speed | ≤7000mm/s | ||
| Cooling Method | Air cooling | ||
| Operating Environment | 10℃~35℃ ( No condensation) | ||
| Electricity Demand | 220V / 50Hz (110V/60Hz) | ||
| Equipment Size | 600*800*1450mm ( Customizable ) | ||
CO2 laser marking machine data printer lazer marking machines for pet plastic bottle
What's the function of each parts?
Applications:
CO2 laser marking machine data printer lazer marking machines for pet plastic bottle combines laser technologies with production line, it can mark on fast moving items for conveyor/pipe/cable and conduct 24 hours continuous working.
It is mainly used to mark characters, figures, batch numbers, production dates, validity, LOGO, real time clock information and anti-counterfeiting, especially the pharmaceutical industries GMP and food industries HACCP.
We can do the marking on any materials, just only choose a suitable laser type! You just need to tell us what material of your products, and send the pictures to us, we will do the marking samples for you!
Production Line Demo
Training for Customers
