- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Amony
-
Model Number:
-
End Mill Series for Copper Electrode
-
Product Name:
-
micro end mills manufacturer
-
Shank Diameter:
-
4-6mm
-
Helix angle:
-
37 Degree
-
Suitable for:
-
Steel /Copper/aluminum
-
MOQ:
-
10 pcs
-
OEM/ODM:
-
Provided
-
Quality:
-
High
Quick Details
-
Material:
-
Carbide
-
Coating:
-
AlTiN, TiAIN, TiCN, Tin, DLC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amony
-
Model Number:
-
End Mill Series for Copper Electrode
-
Product Name:
-
micro end mills manufacturer
-
Shank Diameter:
-
4-6mm
-
Helix angle:
-
37 Degree
-
Suitable for:
-
Steel /Copper/aluminum
-
MOQ:
-
10 pcs
-
OEM/ODM:
-
Provided
-
Quality:
-
High
Product Overview

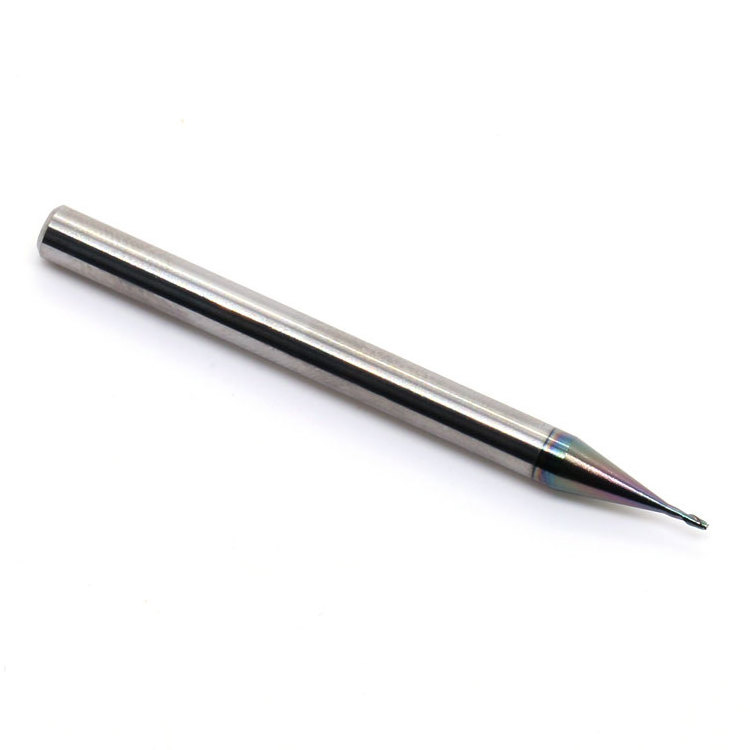

End Mills for Copper Electrode
The DLC coated carbide end mill enables the milling of copper electrodes with high precision and excellent surface finish without burrs due to its optimal sharp cutting edge shape and excellent ball R accuracy.
The DLC coating, which is extremely effective against non-ferrous metals such as copper alloys that require welding resistance and lubricity, is used to enable stable milling accuracy for a long period of time.
PRODUCT SPECIFICATIONS
|
Product Name
|
End Mills for Copper Electrode
|
|
Material
|
AlTiN, TiAIN, TiCN, Tin, DLC (As Required)
|
|
Standard size(Shank Diameter)
|
4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
|
|
Flutes
|
2/4 Flutes
|
|
Suitable for
|
Cast Iron,Aluminum,Copper,Carbon Steel,Carbon Steel,Stainless steel
|
|
Advantages
|
High Precision,Good Surface & Performace
|
|
Customized support
|
OEM, ODM, OBM
|
|
Certification
|
ISO9001:2015 , Supplier Assessment Certificate
|
|
MOQ
|
10 Pieces
|
|
Delivery Time
|
sample order 1-3 days, big order 3-15 days
|
|
Payment
|
30% payment before produce, 70% balance payment before delivery
|
Details Images
Size Information
|
Square type(D1*L2*L1*D2*D*L)
|
Ball type(R*L2*L1*D2*D*L)
|
Corner Radius type(D1*L2*L1*D2*R*D*L)
|
|
0.1*0.2*0.5*0.085*4*50
|
R0.075*0.1*1*0.13*4*45
|
0.2*0.4*1*0.18*R0.02*4*45
|
|
0.2*0.4*1*0.18*4*45
|
R0.1*0.15*1*0.18*4*45
|
0.2*0.4*1.5*0.18*R0.02*4*45
|
|
0.2*0.4*1.5*0.18*4*45
|
R0.1*0.15*1.5*0.18*4*45
|
0.3*0.6*1*0.28*R0.02*4*45
|
|
0.3*0.6*1*0.28*4*45
|
R0.15*0.2*1*0.28*4*45
|
0.3*0.6*1.5*0.28*R0.02*4*45
|
|
0.3*0.6*1.5*0.28*4*45
|
R0.15*0.2*1.5*0.28*4*45
|
0.3*0.6*2*0.28*R0.02*4*45
|
|
0.3*0.6*2*0.28*4*45
|
R0.15*0.2*2*0.28*4*45
|
0.4*0.8*2*0.37*R0.02*4*45
|
|
0.4*0.8*2*0.37*4*45
|
R0.2*0.3*1*0.37*4*45
|
0.4*0.8*3*0.37*R0.02*4*45
|
|
0.4*0.8*3*0.37*4*45
|
R0.2*0.3*2*0.37*4*45
|
0.4*0.8*4*0.37*R0.02*4*45
|
|
0.4*0.8*4*0.37*4*45
|
R0.2*0.3*3*0.37*4*45
|
0.5*1*2*0.46*R0.05*4*45
|
|
0.5*1*2*0.46*4*45
|
R0.2*0.3*4*0.37*4*45
|
0.5*1*3*0.46*R0.05*4*45
|
|
0.5*1*3*0.46*4*45
|
R0.25*0.35*2*0.46*4*45
|
0.5*1*4*0.46*R0.05*4*45
|
|
0.5*1*4*0.46*4*45
|
R0.25*0.35*3*0.46*4*45
|
0.5*1*6*0.46*R0.05*4*45
|
|
0.5*1*6*0.46*4*45
|
R0.25*0.35*4*0.46*4*45
|
0.6*1.2*2*0.56*R0.05*4*45
|
|
0.6*1.2*2*0.56*4*45
|
R0.25*0.35*5*0.46*4*45
|
0.6*1.2*3*0.56*R0.05*4*45
|
|
0.6*1.2*3*0.56*4*45
|
R0.3*0.45*2*0.56*4*45
|
0.6*1.2*4*0.56*R0.05*4*45
|
|
0.6*1.2*4*0.56*4*45
|
R0.3*0.45*3*0.56*4*45
|
0.6*1.2*6*0.56*R0.05*4*45
|
|
0.6*1.2*6*0.56*4*45
|
R0.3*0.45*4*0.56*4*45
|
0.8*1.6*3*0.76*R0.05*4*45
|
|
0.8*1.6*3*0.76*4*45
|
R0.3*0.45*5*0.56*4*45
|
0.8*1.6*4*0.76*R0.05*4*45
|
|
0.8*1.6*4*0.76*4*45
|
R0.3*0.45*6*0.56*4*45
|
0.8*1.6*6*0.76*R0.05*4*45
|
|
0.8*1.6*6*0.76*4*45
|
R0.4*0.6*3*0.76*4*45
|
0.8*1.6*8*0.76*R0.05*4*45
|
|
0.8*1.6*8*0.76*4*45
|
R0.4*0.6*4*0.76*4*45
|
1*2*3*0.95*R0.05/R0.1/R0.2*4*45
|
|
1*2*3*0.95*4*45
|
R0.4*0.6*6*0.76*4*45
|
1*2*4*0.95*R0.05/R0.1/R0.2*4*45
|
|
1*2*4*0.95*4*45
|
R0.4*0.6*8*0.76*4*45
|
1*2*5*0.95*R0.05/R0.1/R0.2*4*45
|
|
1*2*5*0.95*4*45
|
R0.5*0.75*3*0.95*4*45
|
1*2*6*0.95*R0.05/R0.1/R0.2*4*45
|
|
1*2*6*0.95*4*45
|
R0.5*0.75*4*0.95*4*45
|
1*2*8*0.95*R0.05/R0.1/R0.2*4*45
|
|
1*2*8*0.95*4*45
|
R0.5*0.75*5*0.95*4*45
|
1*2*10*0.95*R0.05/R0.1/R0.2*4*45
|
|
1*2*10*0.95*4*45
|
R0.5*0.75*6*0.95*4*45
|
1*2*12*0.95*R0.05/R0.1/R0.2*4*45
|
|
1.2*12*0.95*4*45
|
R0.5*0.75*8*0.95*4*45
|
1.5*3*6*1.45*R0.05/R0.1/R0.2*4*45
|
|
1.5*3*6*1.45*4*45
|
R0.5*0.75*10*0.95*4*45
|
1.5*3*8*1.45*R0.05/R0.1/R0.2*4*45
|
|
1.5*3*8*1.45*4*45
|
R0.5*0.75*12*0.95*4*45
|
1.5*3*12*1.45*R0.05/R0.1/R0.2*4*45
|
|
1.5*3*12*1.45*4*45
|
R0.75*1.1*6*1.45*4*45
|
1.5*3*16*1.45*R0.05/R0.1/R0.2*4*45
|
|
1.5*3*16*1.45*4*60
|
R0.75*1.1*12*1.45*4*45
|
2*4*6*1.94*R0.05/R0.1/R0.2*4*45
|
|
2*4*8*1.94*4*45
|
R0.75*1.1*18*1.45*4*45
|
2*4*8*1.94*R0.05/R0.1/R0.2*4*45
|
|
2*4*10*1.94*4*45
|
R1*1.5*4*1.94*4*45
|
2*4*10*1.94*R0.05/R0.1/R0.2*4*45
|
|
2*4*12*1.94*4*45
|
R1*1.5*6*1.94*4*45
|
2*4*12*1.94*R0.05/R0.1/R0.2*4*45
|
|
2*4*14*1.94*4*45
|
R1*1.5*8*1.94*4*45
|
2*4*14*1.94*R0.05/R0.1/R0.2*4*45
|
|
2*4*16*1.94*4*60
|
R1*1.5*10*1.94*4*45
|
2*4*16*1.94*R0.05/R0.1/R0.2*4*60
|
|
2*4*20*1.94*4*60
|
R1*1.5*12*1.94*4*45
|
2*4*20*1.94*R0.05/R0.1/R0.2*4*60
|
|
3*6*10*2.85*4*45
|
R1*1.5*16*1.94*4*45
|
3*6*10*2.85*R0.05/R0.1/R0.2*4*45
|
|
3*6*15*2.85*4*45
|
R1*1.5*20*1.94*4*60
|
3*6*15*2.85*R0.05/R0.1/R0.2*4*45
|
|
3*6*20*2.85*4*60
|
R1*1.5*25*1.94*4*60
|
3*6*20*2.85*R0.05/R0.1/R0.2*4*60
|
|
3*6*25*2.85*4*70
|
R1.5*2.5*10*2.85*4*45
|
3*6*25*2.85*R0.05/R0.1/R0.2*4*70
|
|
4*8*15*3.8*4*45
|
R1.5*2.5*15*2.85*4*45
|
4*8*15*3.8*R0.05/R0.1/R0.2*4*45
|
|
4*8*20*3.8*4*60
|
R1.5*2.5*20*2.85*4*70
|
4*8*20*3.8*R0.05/R0.1/R0.2*4*60
|
|
4*8*25*3.8*4*70
|
R1.5*2.5*25*2.85*4*70
|
4*8*25*3.8*R0.05/R0.1/R0.2*4*70
|
|
4*8*30*3.8*4*70
|
R1.5*2.5*30*2.85*4*70
|
4*8*30*3.8*R0.05/R0.1/R0.2*4*70
|
|
6*12*20*5.8*6*60
|
R2*3*10*3.8*4*45
|
6*12*20*5.8*R0.1/R0.2*6*50
|
|
6*12*30*5.8*6*70
|
R2*3*15*3.8*4*45
|
6*12*30*5.8*R0.1/R0.2*6*70
|
|
6*12*50*5.8*6*90
|
R2*3*20*3.8*4*60
|
6*12*50*5.8*R0.1/R0.2*6*90
|
|
|
R2*3*25*3.8*4*70
|
|
|
|
R2*3*30*3.8*4*70
|
|
|
|
R3*6*20*5.7*6*50
|
|
|
|
R3*6*30*5.7*6*80
|
|
|
|
R3*6*50*5.7*6*100
|
|
