Quick Details
-
Air Volume:
-
960-46000M3/H
-
Speed:
-
960-5240(r/m)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Place of Origin:
-
Shandong, China, Shandong,China
-
Product name:
-
wall mounted mushroom exhaust fan
-
Usage:
-
Warehouse,Workshop,Factory etc.
-
Size:
-
It depends on the different model
-
Material:
-
Fiberglass/Stailnless steel/Aluminum
-
Bearing Type:
-
Ball Bearing
-
Outsize:
-
430*430*230
-
Warranty:
-
1 year
-
Impeller blade:
-
Fiberglass/Stailnless steel/Aluminum
Quick Details
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
Power:
-
0.025-1.1KW
-
Air Volume:
-
960-46000M3/H
-
Speed:
-
960-5240(r/m)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Place of Origin:
-
Shandong, China, Shandong,China
-
Product name:
-
wall mounted mushroom exhaust fan
-
Usage:
-
Warehouse,Workshop,Factory etc.
-
Size:
-
It depends on the different model
-
Material:
-
Fiberglass/Stailnless steel/Aluminum
-
Bearing Type:
-
Ball Bearing
-
Outsize:
-
430*430*230
-
Warranty:
-
1 year
-
Impeller blade:
-
Fiberglass/Stailnless steel/Aluminum
Factory cheap price wall mounted mushroom exhaust fan
(Also called wall mount exhaust fan poultry house fan,wall mounted cooling fan,negative pressure fan,algriculture ventilator,exhaust fan,poultry fan for green house,square exhaust fan,farm fan,wall installed fan,stainless steel industrial wall mounted fan and so on)
Use the principle of negative pressure cross-ventilation, to bring the fresh air in from the opposite of the installation position——door or window naturally, and extract the indoor hot gas rapidly.Any improper ventilation problem can be solved. The cooling and ventilation efficiency can reach as high as 90%-97%.
Parameter Specification:
|
Specification |
Blade diameter(mm) |
Flow rate(m3/h) |
Power(kw) |
Noise(A) |
Size (mm) |
|
BF30-2.5 |
250 |
960 |
0.025 |
54 |
360*360*220 |
|
BF30-2.8 |
280 |
1331 |
0.025 |
54 |
400*400*220 |
|
BF30-3.15 |
315 |
1895 |
0.04 |
55 |
430*430*230 |
|
BF30-3.55 |
355 |
2712 |
0.09 |
56 |
465*465*240 |
|
BF30-4 |
400 |
3879 |
0.18 |
61 |
510*510*250 |
|
BF30-4.5 |
450 |
5500 |
0.25 |
63 |
560*560*270 |
|
BF30-5 |
500 |
7500 |
0.37 |
67 |
630*630*290 |
|
BF30-7.7 |
770 |
20000 |
0.55 |
55 |
900*900*400 |
|
BF30-9.3 |
930 |
34000 |
0.75 |
65 |
1060*1060*400 |
|
BF30-11.1 |
1110 |
39000 |
0.75 |
70 |
1220*1220*400 |
|
BF30-12.5 |
1250 |
46000 |
1.1 |
75 |
1380*1380*400 |
My friend please email us your required flow capacity or Size,we can help you choose the right model.

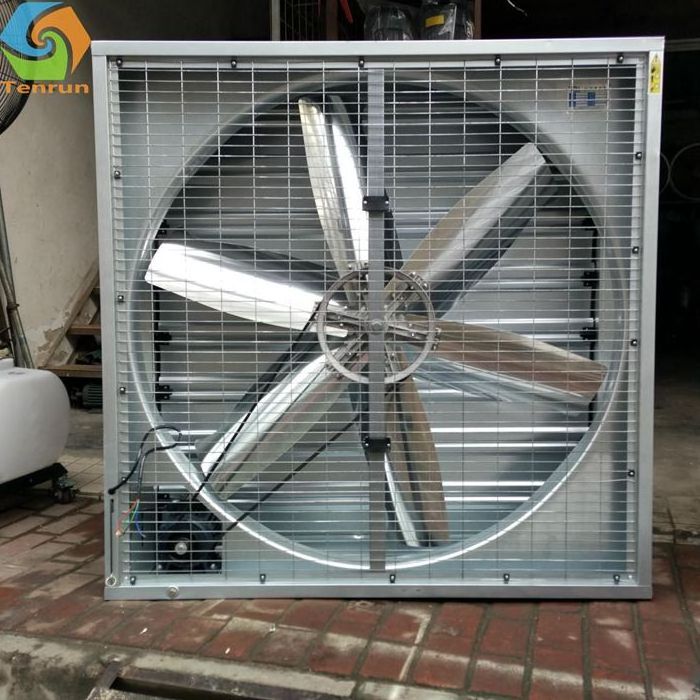

Pictures reference:
Advantage:
1, Frame: frames are made of galvanized board, thickness 1.0mm, galvanizing layer 180g/square meter.
2, Blade : 6 pieces, material 430/201 stainless steel, mirror face.
3, Impeller , casting aluminum alloy impeller.
4, Bearing of impeller :permanently sealed bearing, size 633313.
5, Venture : galvanized board, thickness 1.0mm.
6, Blade tip clearance : 25mm, mirroe face.
7, Inlet wind protecting net : spraying paint steel wire, thickness 2.8mm.
8, Electrical motor : aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,
9, Motor bearing , :national grade.
10, Belt : V-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).
11, Shutters , galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer ,120g/square meter.
12, Opening system , nylon material, brown color and black color.
13, Rivets : aluminum alloy and stainless steel rivets.
14, Cable : 1 meter long, strong robber wire.
Packing and Delivery:
About us:
Jinan Tengyun Environment Engineering Co., Ltd which has more than 20 years experience on ventilation equipment,FRP water tank and cooling towers etc.We will have a great welcome to visit our factory!
