Quick Details
-
Model Number:
-
VX2120
-
Brand Name:
-
EPSolid
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Black & Silver
-
Supply Voltage:
-
12~240V AC/DC
-
Body Material:
-
Brass
-
Seal Material:
-
NBR or FKM
Quick Details
-
Port Size:
-
1/8'' or 1/4'', 1/8'' or 1/4''
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
VX2120
-
Brand Name:
-
EPSolid
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Black & Silver
-
Supply Voltage:
-
12~240V AC/DC
-
Body Material:
-
Brass
-
Seal Material:
-
NBR or FKM
Specification:

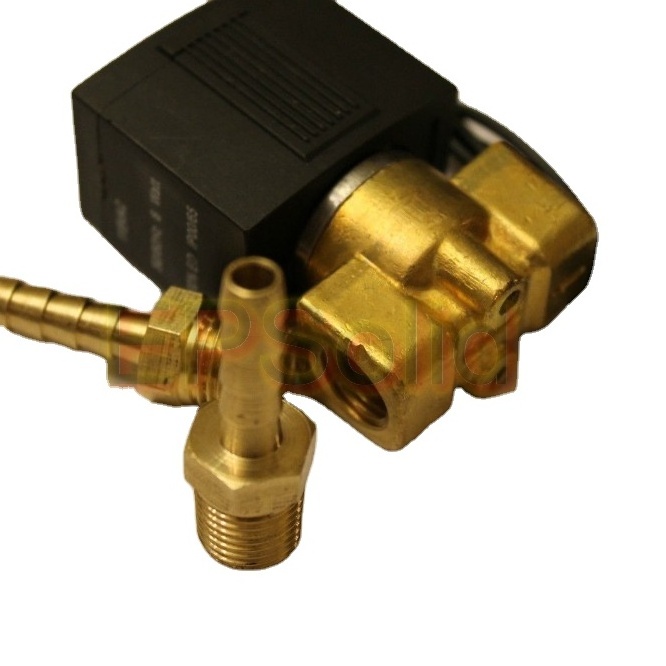

Model
VX2120-06/08 w BARB
Voltage
DC12V,DC24V,AC110V,AC220V
Operation Mode
Normally Closed (valve opens when energized)
Valve Type
Direct Acting, Wet Armature
Inlet/Outlet Ports
G1/8'' or G1/4" Female (NPT Threads)
Max Pressure Rating
Air: 145 psi / Water: 115 psi / Light Oil: 70 psi
Suitable Media
Air, Water, Very Low Viscosity Fluids, Vacuum
Cv Value
0.4
Temperature
Limitations Maximum Media Temperature 212° F
Valve Response Time
Very Fast Acting
Duty Cycle
Continuous (can be left powered without overheating)
Materials Valve Body
Brass
Spring
Stainless Steel
Plunger/Guide Tube
Stainless Steel
Plunger Tip
Nitrile Butadiene Rubber (NBR)
Mounting Can be attached with two 5 mm machine screws (not included)
Mounting Position Coil up preferred
Description:
With solenoid operated for control appropriate flow and direction, provide great performance.
Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control.
|
Model
|
VX2120-06
|
|
VX2120-08
|
|
|||
|
Port Size
|
G1/8''
|
|
G1/4''
|
|
|||
|
Working Pressure
|
Air: 145 psi / Water: 115 psi / Light Oil: 70 psi
|
|
|
|
|||
|
Materials Valve Body Brass
|
BRASS
|
|
|
|
|||
