Quick Details
-
Brand Name:
-
Qingdao DEER
-
Dimension(L*W*H):
-
44*32*75CM
-
Weight:
-
30 KG
-
Product name:
-
Industrial air filter for co2 laser/co2 laser bandpass filter
-
Filter type:
-
active carbon filter+4 layers panel filter
-
Power:
-
350w/500w/1000w
-
Air volume:
-
400m3/h;600m3/h;1000m3/h
-
Noise:
-
<65dB
-
Extraction hose:
-
flexible hose or bamboo arm
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Free spare parts
-
Showroom Location:
-
None
-
Marketing Type:
-
New Product 2020
Quick Details
-
Efficiency:
-
99.9%
-
Porosity:
-
0.1micron
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Qingdao DEER
-
Dimension(L*W*H):
-
44*32*75CM
-
Weight:
-
30 KG
-
Product name:
-
Industrial air filter for co2 laser/co2 laser bandpass filter
-
Filter type:
-
active carbon filter+4 layers panel filter
-
Power:
-
350w/500w/1000w
-
Air volume:
-
400m3/h;600m3/h;1000m3/h
-
Noise:
-
<65dB
-
Extraction hose:
-
flexible hose or bamboo arm
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Free spare parts
-
Showroom Location:
-
None
-
Marketing Type:
-
New Product 2020
Product Description

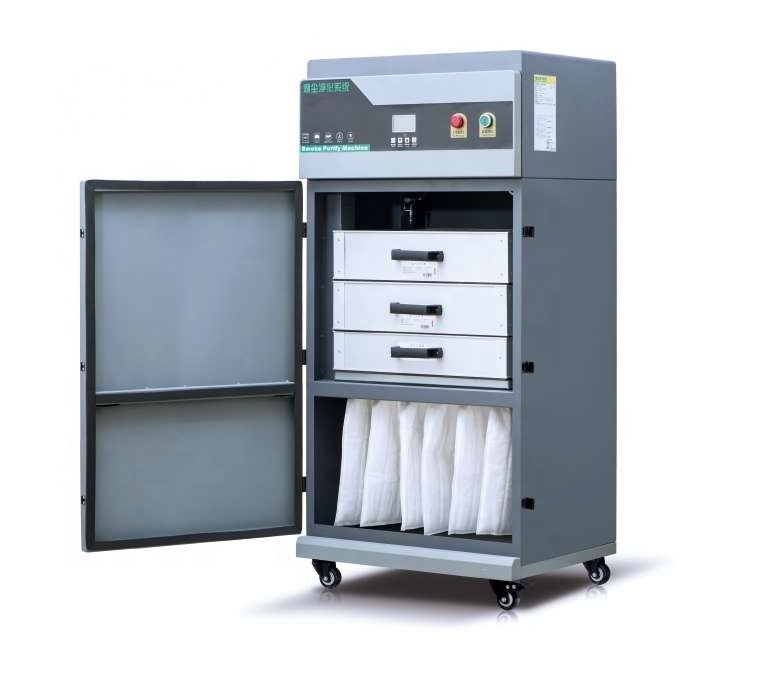

DER-LF Soldering Smoke Purifier Integrated Fume purification equipment
Scope of application
In many workplaces, large amounts of dust, pungent odors, toxic gases, and specks are produced that are harmful to the human body.
The DER-LF800 smoke purification equipment can immediately purify and deal with the above serious pollutants. The purified clean
air can be discharged directly in the room, without the need for external pipe discharge (or pipe exhaust to the outdoor if
needed).
In many workplaces, large amounts of dust, pungent odors, toxic gases, and specks are produced that are harmful to the human body.
The DER-LF800 smoke purification equipment can immediately purify and deal with the above serious pollutants. The purified clean
air can be discharged directly in the room, without the need for external pipe discharge (or pipe exhaust to the outdoor if
needed).
Product features
1. Appearance and construction
◆ the appearance is simple and generous, stable and elegant. Fuselage integrated design, the use of metal frame structure, high
quality cold rolled steel plate electrostatic spray technology, durable. With LCD display panel more classic exquisite,
refreshing!
◆ install universal caster at the bottom for easy movement.
◆ install humanized stepless governor, can adjust the air volume and suction size at will.
2. Fan:
◆ brushless dc motor, reliable performance, long life cycle.
◆ stable operation, low noise, high efficiency, low energy consumption, long working time. No regular maintenance, lower cost.
◆ the wind wheel adopts eddy current backward design, special alloy material, effectively prevent the wind wheel from being
corroded. Unique dynamic balance correction technology, so that the wind wheel running more stable and reliable. High air volume,
super suction, higher filtration rate.
3. Filtration system:
◆ adopt five-filter design. Filter layer by layer to ensure that the harmful dust is removed more thoroughly. The purification
rate can reach 99.97%.
◆ modular design, layer upon layer protection. Each layer of filter element can be replaced separately, the filter element service
life is longer, the replacement cost is lower.
◆ the unique internal sealing structure and special sealing materials enable all harmful substances to pass through the filtration
system with higher filtration efficiency.
◆ built-in circulation active filtering mode, avoid the indoor air/heating out of the room, do not damage the operating
temperature and humidity environment.
4.Smoke collector
◆ the machine can be equipped with universal bamboo joint smoking arm, hose, steel frame suction arm, can be arbitrary direction,
self-positioning (length can be customized according to customer requirements). The end is equipped with a large smoke collecting
hood with a wide range of smoking.
◆ simple installation, easy to use, with an external outlet, can be connected to the pipeline.
5.Safety certification and design standard, national patent
◆ compliance with CE, UL, WHO certification, safe and reliable.
◆ reliance design standard: indoor air quality standard, gb21551.1-2008, GB/T 18801.
Obtain the national design patent and the whole machine structure utility model patent, counterfeiting will be investigated!
1. Appearance and construction
◆ the appearance is simple and generous, stable and elegant. Fuselage integrated design, the use of metal frame structure, high
quality cold rolled steel plate electrostatic spray technology, durable. With LCD display panel more classic exquisite,
refreshing!
◆ install universal caster at the bottom for easy movement.
◆ install humanized stepless governor, can adjust the air volume and suction size at will.
2. Fan:
◆ brushless dc motor, reliable performance, long life cycle.
◆ stable operation, low noise, high efficiency, low energy consumption, long working time. No regular maintenance, lower cost.
◆ the wind wheel adopts eddy current backward design, special alloy material, effectively prevent the wind wheel from being
corroded. Unique dynamic balance correction technology, so that the wind wheel running more stable and reliable. High air volume,
super suction, higher filtration rate.
3. Filtration system:
◆ adopt five-filter design. Filter layer by layer to ensure that the harmful dust is removed more thoroughly. The purification
rate can reach 99.97%.
◆ modular design, layer upon layer protection. Each layer of filter element can be replaced separately, the filter element service
life is longer, the replacement cost is lower.
◆ the unique internal sealing structure and special sealing materials enable all harmful substances to pass through the filtration
system with higher filtration efficiency.
◆ built-in circulation active filtering mode, avoid the indoor air/heating out of the room, do not damage the operating
temperature and humidity environment.
4.Smoke collector
◆ the machine can be equipped with universal bamboo joint smoking arm, hose, steel frame suction arm, can be arbitrary direction,
self-positioning (length can be customized according to customer requirements). The end is equipped with a large smoke collecting
hood with a wide range of smoking.
◆ simple installation, easy to use, with an external outlet, can be connected to the pipeline.
5.Safety certification and design standard, national patent
◆ compliance with CE, UL, WHO certification, safe and reliable.
◆ reliance design standard: indoor air quality standard, gb21551.1-2008, GB/T 18801.
Obtain the national design patent and the whole machine structure utility model patent, counterfeiting will be investigated!
Specification
|
Model
|
In&out let
|
Power
|
Air Volume
|
Filter Efficiency
|
Noise
|
Dimension(mm)
|
Weight
|
|
DER-LF350
|
75MM
|
350W
|
400M3/H
|
99.9%
|
<60
|
L440*W320*H750
|
30KG
|
|
DER-LF500
|
75MM
|
500W
|
600M3/H
|
99.9%
|
<65
|
L500*W380*H925
|
50KG
|
|
DER-LF800
|
150 OR 200 MM
|
1000W
|
1500M3/H
|
99.9%
|
<70
|
L620*W500*H1300
|
80KG
|
