Quick Details
-
Filling Accuracy:
-
99.9%
-
Packaging Type:
-
Wooden box
-
Voltage:
-
380V 50 HZ 3 phases
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HIGEE
-
Dimension(L*W*H):
-
4500*2300*2300 mm
-
Weight:
-
4500kg
-
Name:
-
Soda bottling machine
-
Filling material:
-
SS 304
-
Bottle type:
-
PET.GLASS ,CANS ETC
-
Bottle volume:
-
200 ml up to 2 litre
-
Capacity ::
-
3600 bph per hour
-
Filling precision:
-
<5mm(liquid level)
-
Filling pressure (MPa):
-
<0.4
-
suitable cap shape:
-
Plastic screw cap
-
Certification:
-
ISO 9001
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Juice
-
Filling Accuracy:
-
99.9%
-
Packaging Type:
-
Wooden box
-
Voltage:
-
380V 50 HZ 3 phases
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HIGEE
-
Dimension(L*W*H):
-
4500*2300*2300 mm
-
Weight:
-
4500kg
-
Name:
-
Soda bottling machine
-
Filling material:
-
SS 304
-
Bottle type:
-
PET.GLASS ,CANS ETC
-
Bottle volume:
-
200 ml up to 2 litre
-
Capacity ::
-
3600 bph per hour
-
Filling precision:
-
<5mm(liquid level)
-
Filling pressure (MPa):
-
<0.4
-
suitable cap shape:
-
Plastic screw cap
-
Certification:
-
ISO 9001

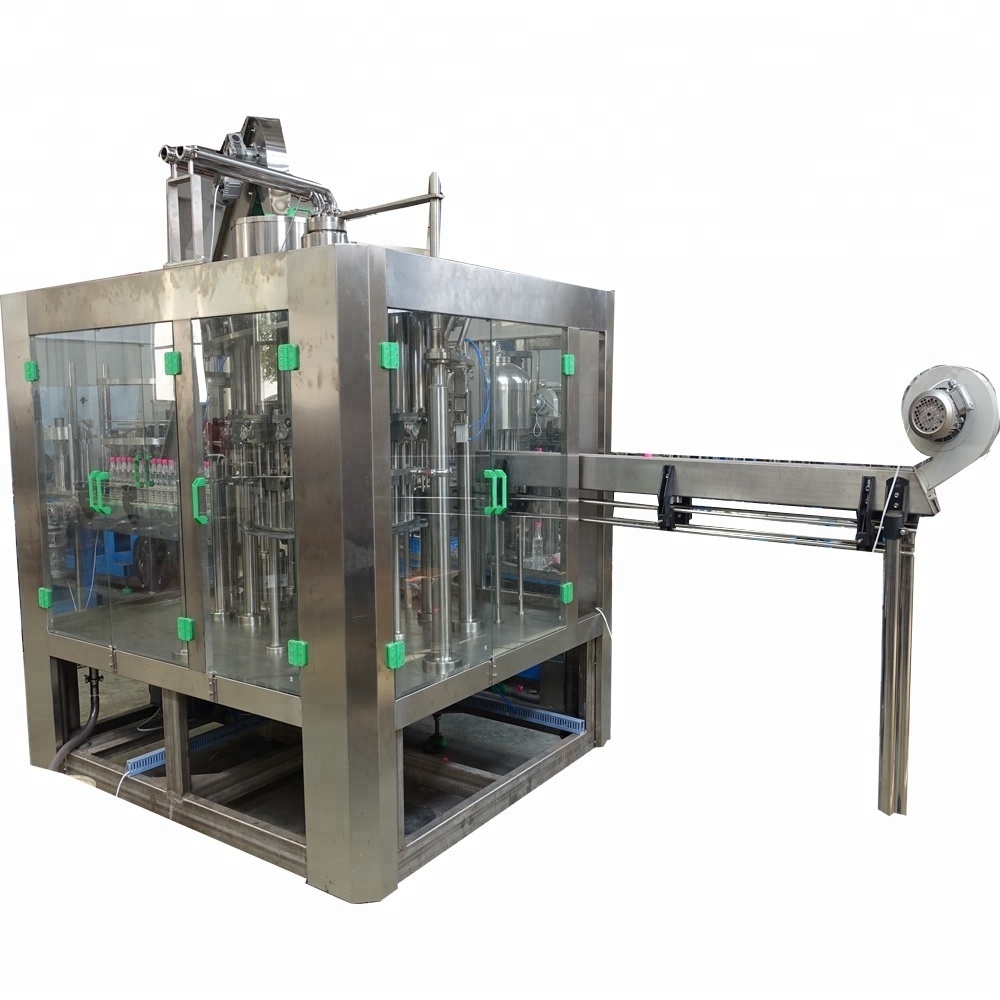

Soda bottling machine carbonated beverage soft drink
Bottle volumn :200ml ,300ml, 500ml 750,1500ml 20000ml
capacity: 3600 bph per hour for 500ml
cap: plastic screw cap or aluminum cap
All of soda filling machine we can according to our clients to customized
Soda Filling Machine use pressure filling, Liquid surface positioning. The machine for automatic control , Through the touch screen to operate the machine.
It is applied to PET bottle and multifunctional which can be used for washing, filling and capping.
The whole process is automatic. It is made of high quality SUS304 stainless steel.
Main components are processed precisely by HIGEE machine tool.
Soda Filling Machine adopts advanced photo electricity to detect running status.
No bottle no filling, excellent automatically. Because of applying touchscreen for operation. It is possible to realize man-machine conversation where as the status of device running is clear at a glance.
Soda Drinks Filling Machine Pictures: Washing,Washing,Fillng,Capping 3-in-1 Unit
Higee Machinery is a professional Manufacturer of soda drink filling machine in China.
Main produce: PET soda filling machine , Carbonated drinks filling machine, Beer Filling machine, Soda Drink Filling Machine, Soda Bottling Machine
More Detailed information of Soda Filling Machine
| Model | DCCGF12-12-6 | DCCGF18-18-6 | DCCGF24-24-8 | DCCGF32-32-10 | |
| Production capacity(500ml b/h) | 3000-3600 | 3000-4000 | 6000-8000 | 8000-10000 | |
| Filling precision | <5mm(liquid level) | ||||
| Filling pressure (MPa) | <0.4 | ||||
| Gathers the fat bottle specification(mm) | bottle diameter:50-100 height:150-310mm | ||||
| suitable cap shape | Plastic screw cap | ||||
| Total power(kw) | 1.2 | 3.75 | 5.6 | 6.2 | |
| Weight(kg) | 2500 | 3500 | 4500 | 6000 | |
| Overall dimensions(mm) | 2250*1700*2300 | 2400*1960*2300 | 3010*2180*2400 | 4000*2250*2500 | |
The machine construction pictures :
| water filling machine | oil filling machine |
| shrink sleeve labeling machine | 3 in 1 filling machine |
After-sales service:
We guarantee the quality of the main parts within 12 months.
If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship,
brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this
Contract.
Quality guarantee period is within 12 months from B/L date.
The Manufacturer would repair the contracted machines free of charge during the quality guarantee period.
If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair
parts cost.
Installation:
The seller would dispatch his engineers to instruct the installation.
Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country).
