Quick Details
-
Rated Voltage:
-
12kV-330kV
-
Tensile Strength:
-
70-120kN
-
Rated voltage:
-
12kV-220kV
-
Usage:
-
High Voltage
-
Colour:
-
Red / Gray / Brown
-
usage:
-
electrical
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Tongli
-
Model Number:
-
FXBU,FXBO,,FXBW
-
Rated Voltage:
-
12kV-330kV
-
Tensile Strength:
-
70-120kN
-
Rated voltage:
-
12kV-220kV
-
Usage:
-
High Voltage
-
Colour:
-
Red / Gray / Brown
-
usage:
-
electrical
High Voltage composite polymer suspension electrical Insulators
Description:
The products are made of glassfiber epoxy core rod,silicone rubber shed and metal fitting .The silicone rubber shed adopt the whole packing pressure technique,and then to solve problem of interface electric spark puncture.Connection of the glassfiber rod and metal fittings,adopts the pressure weldinf technique of the international advanced level,and have the full automatic sound wave detection of defects system.
Specification:
|
Product Model |
Rated Voltage (kV) |
Rated mechanical bending load (kN) |
Structure Height H.(mm) |
Min Arc.distance (mm) |
Min Creepage distance (mm) |
Lightning impulse withstand voltage (park)(kV) |
1min P.F. withstand voltage (wet) (vitrual value)(kV) |
|
FXBU-12/70 |
12 |
70 |
350 |
180 |
445 |
95 |
42 |
|
FXBU-15/70 |
15 |
70 |
440 |
225 |
505 |
105 |
45 |
|
FXBO-15/70 |
15 |
70 |
367 |
173 |
445 |
105 |
45 |
|
FXBU-24/70 |
24 |
70 |
420 |
240 |
702 |
125 |
95 |
|
FXBU-24/70 |
24 |
70 |
440 |
265 |
674 |
185 |
65 |
|
FXB-24/70 |
24 |
70 |
460 |
280 |
804 |
185 |
95 |
|
FXBU-33/70 |
35 |
70 |
540 |
380 |
900 |
230 |
95 |
|
FXBU-35/70 |
35 |
70 |
630 |
450 |
1200 |
230 |
95 |
|
FXB-35/70 |
35 |
70 |
580 |
406 |
1207 |
230 |
95 |
|
FXBW-35/70 |
35 |
70 |
660 |
460 |
1200 |
230 |
95 |
|
FXB-36/70 |
36 |
70 |
605 |
415 |
1220 |
230 |
95 |
|
FXBU-45/70 |
45 |
70 |
620 |
414 |
1100 |
330 |
157 |
|
FXBU-45/100 |
45 |
100 |
630 |
440 |
1215 |
330 |
157 |
|
FXBW-66/70 |
66 |
70 |
850 |
665 |
1850 |
410 |
185 |
|
FXBU-110/70 |
100 |
70 |
1220 |
1010 |
3150 |
550 |
230 |
|
FXBO-132/100 |
132 |
100 |
1380 |
1140 |
3630 |
650 |
275 |
|
FXBW-154/120 |
154 |
120 |
1735 |
1477 |
4500 |
750 |
365 |
|
FXBU-220/100 |
220 |
100 |
2240 |
1990 |
6300 |
1000 |
395 |

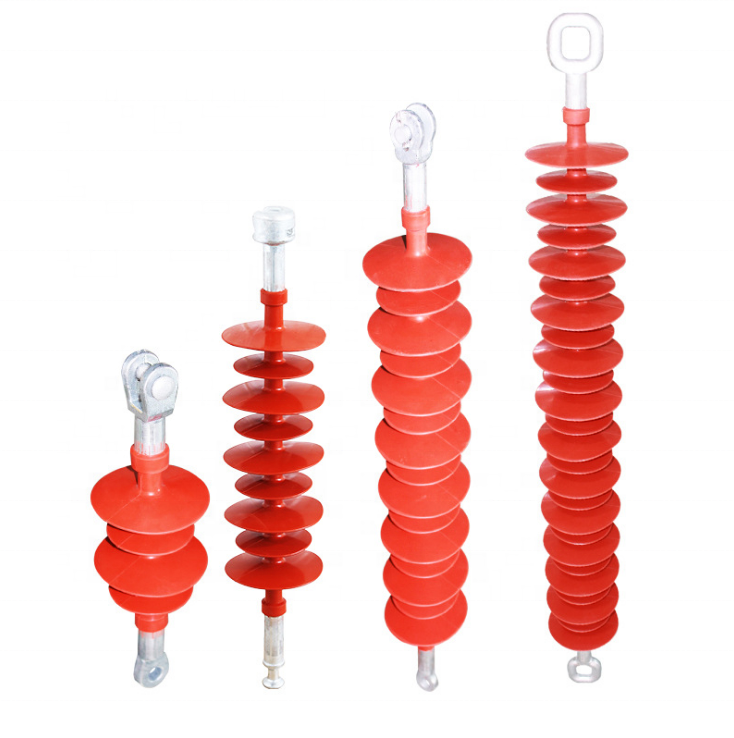

Product show:
