Quick Details
-
Brand Name:
-
Egood
-
Model Number:
-
type65 ,80 100
-
Frame Color:
-
aluminium anodized color or customized color
-
panel thickness:
-
65mm,80mm,125mm,
-
Surface material:
-
mdf,plwyood, Magnesium board
-
Certificate:
-
CE, ISO9001, SGS
-
Name:
-
EGOOD
-
Size:
-
Custom Sizes
-
Profile thickness:
-
3MM
Quick Details
-
Application:
-
Dining, Hotel, Office Building, School, Mall, Other, Hall
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Egood
-
Model Number:
-
type65 ,80 100
-
Frame Color:
-
aluminium anodized color or customized color
-
panel thickness:
-
65mm,80mm,125mm,
-
Surface material:
-
mdf,plwyood, Magnesium board
-
Certificate:
-
CE, ISO9001, SGS
-
Name:
-
EGOOD
-
Size:
-
Custom Sizes
-
Profile thickness:
-
3MM
Technical data of Type 65 movable partition :
| Model |
Weight
(kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
|
Thickness
(mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) |
Bottom Seal(mm)/ Pressure(kg) |
LCP stretch (mm) | |||||
| EG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |
60#
65# 80# |
| EG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
| EG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
Technical data of Type 80 movable partition :
| Model |
Weight
(kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
|
Thickness
(mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| EG80-40 | 30 | 60 | 40db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 |
60#
80# 100# |
| EG80-45 | 38 | 60 | 45db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| EG80-48 | 47 | 60 | 48db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
Technical data of Type 100 movable partition :
| Model |
Weight
(kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
|
Thickness
(mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| EG100-43 | 38 | 60 | 43db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 |
60#
|
| EG100-48 | 46 | 60 | 48db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
| EG100-53 | 55 | 60 | 53db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |

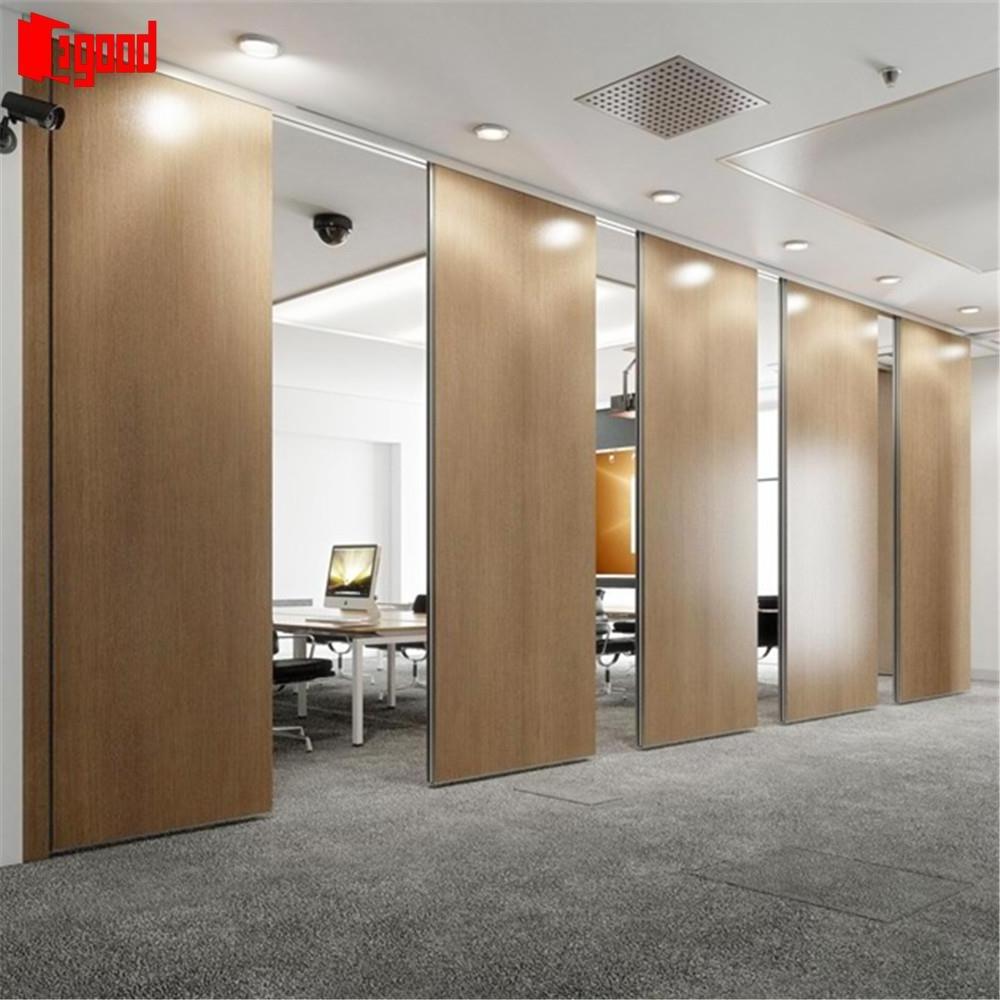

Egood acoustic operable partitions are used to divide meeting rooms, conference rooms, restaurant and banquet halls etc., it provides convenient and effective space management solutions, the panels move on a ceiling track with no requirement of floor guides or rails, its has been extensively applied to hotel industry.
Egood offers products and service with the end user in mind. We build in features that provide benefits to the owner over the life of the partition. Features such as protective edge trim will keep your partitions looking good for many years to come.
The movable partitions consist of a series of interlocking flat panels and the fast set retractable top and bottom seals provide the easiest in-field operation, a simple half-turn of the waist high removable handle extends or retracts the sound seals.
The quick set retractable seals save the owner a great deal of time during setup and take down
Time means money, especially for clients that rent their facilities for meetings and other functions.
Egood provides panel finishes such as melamine, fabric, leather, wood veneer, high-pressure laminate or other custom surfaces, panels also be supplied unfinished(raw mdf or plywood) for field decoration to compliment the building environment.
