Yangzhou Ryde Environmental Protection Technology co., Ltd locates in Yangzhou, a historical and cultural famous city with the melange of ancient culture and modern civilization. With the beautiful scenery, the transportation here is very convenient due to the closeness to Beijing-Shanghai and Yangzhou-Liyang highway, With such advantages, RYDE has become a professional environmental protection enterprise combined with product sales, technology research and development, production and manufacturing, engineering installation and debugging.
- Product Details
- {{item.text}}
Quick Details
-
Productivity:
-
3000m³/d
-
Weight (KG):
-
2000 kg
-
Product name:
-
Water Treatment System
-
Application:
-
Fish Farming
-
Material:
-
SS304
-
Capacity:
-
3000m³/d
-
Color:
-
Customized Color
-
Certification:
-
CE Certificate
-
Filter Type:
-
Microscreen
-
Advantage:
-
Low Consumption
-
Operation:
-
Easy Handling
-
Package:
-
Wooden Crate
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ryde
-
Power:
-
0.55 kw
-
Productivity:
-
3000m³/d
-
Weight (KG):
-
2000 kg
-
Product name:
-
Water Treatment System
-
Application:
-
Fish Farming
-
Material:
-
SS304
-
Capacity:
-
3000m³/d
-
Color:
-
Customized Color
-
Certification:
-
CE Certificate
-
Filter Type:
-
Microscreen
-
Advantage:
-
Low Consumption
-
Operation:
-
Easy Handling
-
Package:
-
Wooden Crate
A Brief Introduction of Yangzhou Ryde
What does RYDE stand for?
R stands for Right Choice;
Y stands for Yauld, i.e. energetic;
D stands for Develop;
E stands for Environment.
We believe that your Right Choice and our Yauld research will Develop the better Environment.
D stands for Develop;
E stands for Environment.
We believe that your Right Choice and our Yauld research will Develop the better Environment.
Products Description

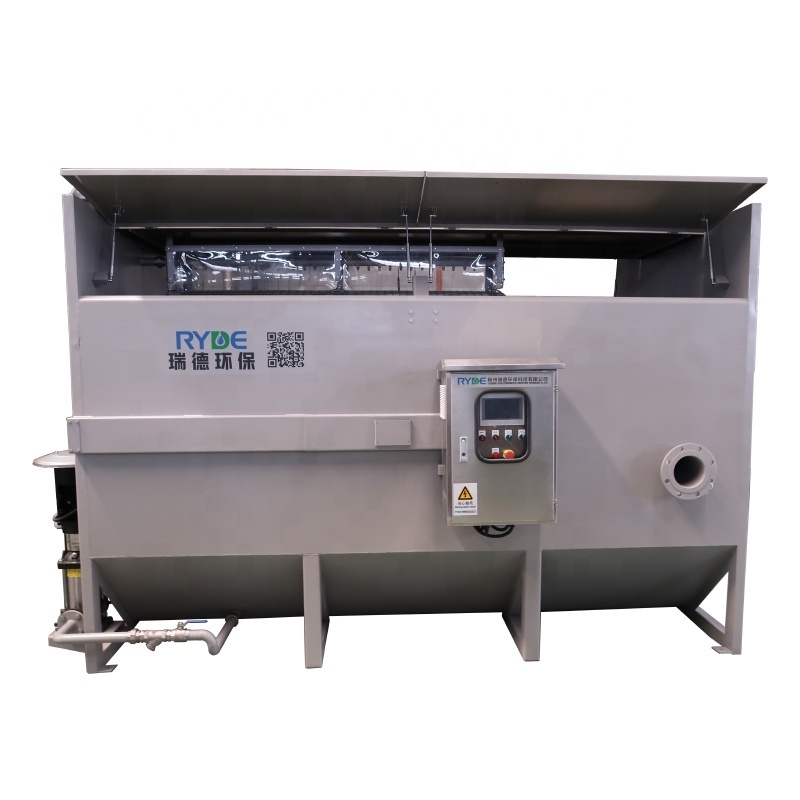

A Brief Introduction of Proficiency Rotary Drum Filter
JZL Proficiency Rotary Drum Filter is a kind of precision filtration equipment that uses gravity or pressure difference to make the suspension pass through a certain porous medium, intercept the solid suspension in the suspension, and realize the effective separation of solid and liquid in the suspension. It is used in metallurgy, Chemicals, textiles, printing and dyeing, electroplating, medicine, food and other industries have been widely used. Mainly used in:
1. The advanced treatment of municipal sewage and the first-level upgrading transformation.
2. Recovery and recycling of water resources.
3. Pretreatment of tap water.
4. Recycling of suspended solids after solid-liquid separation.
Product Paramenters
|
Technical Performance
|
|
|
|
Influent water quality
|
SS≤30mg/L (Instantaneous peak 60mg/L)
|
|
|
Water Outlet quality
|
≤10mg/L
|
|
|
Average filtration rate
|
150m/h
|
|
|
Backwash amount
|
≤0.3%
|
|
|
Backwash Pressure
|
0.7Mpa
|
|
|
Head loss
|
≤0.3m
|
|
|
Separation efficiency
|
81%-97%
|
|
|
Filter material
|
316L stainless steel
|
|
|
Medium temperature
|
Room temperature
|
|
|
Technical Parameters
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Model
|
|
JZL
3000
|
JZL
5000
|
JZL
10000
|
JZL
15000
|
JZL
20000
|
JZL
25000
|
JZL
30000
|
Customization Accepted
|
|||||||||
|
Treating Capacity
|
|
3000
|
5000
|
10000
|
15000
|
20000
|
25000
|
30000
|
|
|||||||||
|
Outer Dimension
(mm) |
Length
|
2900
|
2900
|
3800
|
4700
|
5600
|
5600
|
6500
|
|
|||||||||
|
|
Width
|
1220
|
1600
|
1600
|
1600
|
1600
|
1760
|
1760
|
|
|||||||||
|
|
Height
|
1470
|
2060
|
2220
|
2220
|
2220
|
2500
|
2500
|
|
|||||||||
|
Fileration Area (㎡)
|
|
1.5
|
2.5
|
5
|
7.5
|
10
|
12
|
15
|
|
|||||||||
|
Outlet Dia.
|
|
DN200
|
DN300
|
DN500
|
DN500
|
DN600
|
DN700
|
DN700
|
|
|||||||||
|
Reducer Power (kw)
|
|
0.55
|
0.55
|
0.75
|
1.1
|
1.5
|
1.5
|
1.5
|
|
|||||||||
|
Backwashing Pump Power (kw)
|
|
1.1
|
1.1
|
2.2
|
3
|
4
|
4
|
5.5
|
|
|||||||||
|
Backwashing Amount (m³/d)
|
|
20
|
20
|
40
|
60
|
80
|
80
|
100
|
|
|||||||||
|
Backwashing Pressure (bar)
|
|
7.5
|
7.5
|
7.5
|
7.5
|
7.5
|
7.5
|
7.5
|
|
|||||||||
Certifications
Team & Equipments
Technology Center
Sales
Laser Machine
Bending Machine
Exhibition & Customer Photos
Packing & Logistics
Packing
Specific Packing (with marking) before shipping to avoid any damages not only on the sea, but also the trip on the land in the destination country.
With different transportation methods, Ryde can meet customers' requirement for time.
