- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Abosn-outrigger pad
-
Thickness:
-
Customized according to customer requirements
-
Size:
-
Customized according to customer requirements
-
Product name:
-
UHMWPE Crane out rigger
-
Plastic Modling Type:
-
Compression Molding
-
Keyword:
-
PE outrigger
-
Raw material:
-
100% Virgin PE
-
MOQ:
-
10
-
Shape:
-
round, square ,rectangle, OEM/ODM
-
Certificate:
-
ISO9001
-
Price:
-
Source factory price
-
Logo:
-
laser/engraving
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Shandong, China, Shandong, China
-
Brand Name:
-
Abosn
-
Model Number:
-
Abosn-outrigger pad
-
Thickness:
-
Customized according to customer requirements
-
Size:
-
Customized according to customer requirements
-
Product name:
-
UHMWPE Crane out rigger
-
Plastic Modling Type:
-
Compression Molding
-
Keyword:
-
PE outrigger
-
Raw material:
-
100% Virgin PE
-
MOQ:
-
10
-
Shape:
-
round, square ,rectangle, OEM/ODM
-
Certificate:
-
ISO9001
-
Price:
-
Source factory price
-
Logo:
-
laser/engraving
Product Description

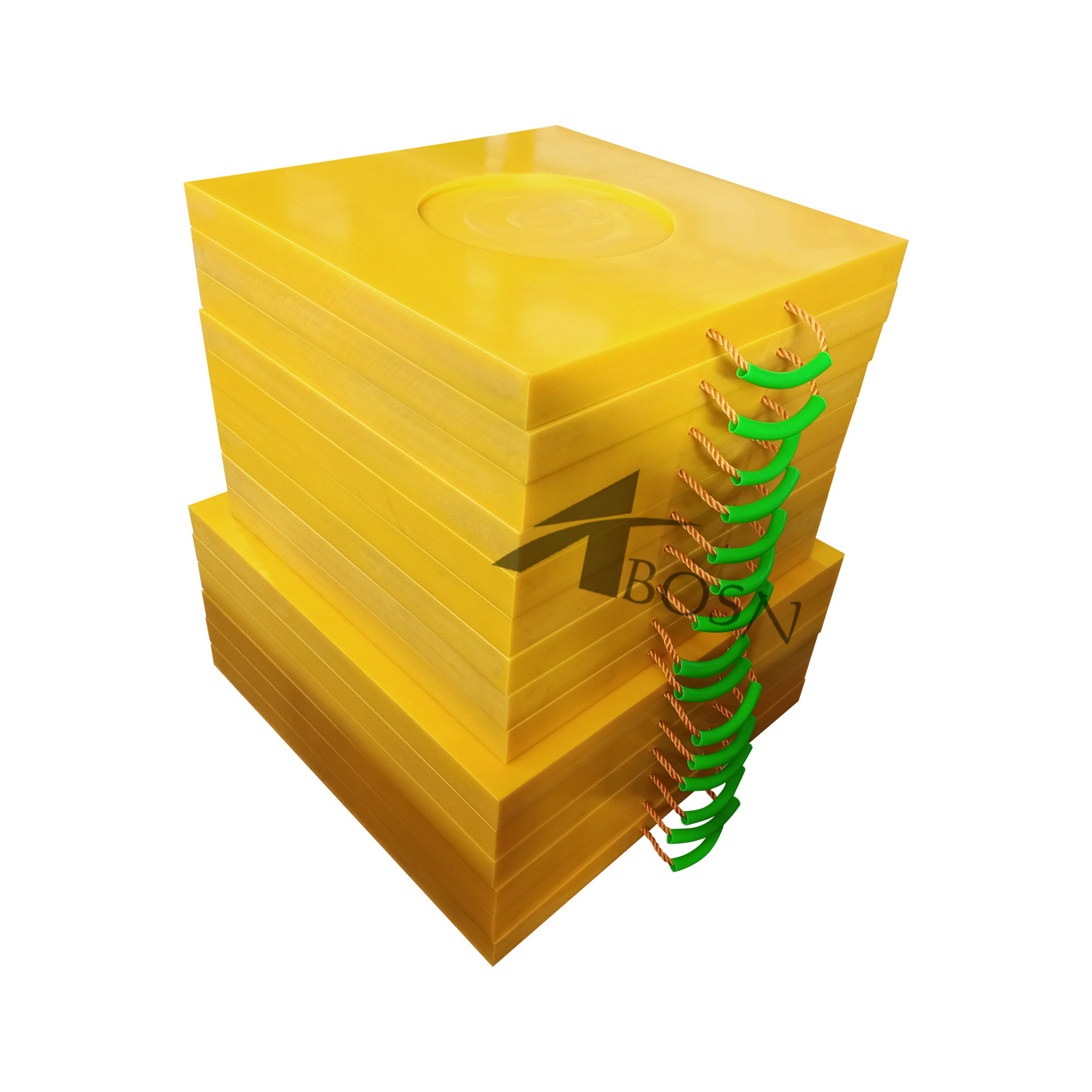

UHMWPE OUTRIGGER PADS
Sample available！
Specification
|
Thickness（inch）
|
Pad size(inch)
|
Part Number
|
45° Load
|
Vertical Load
|
Pad Weight
|
|
1”Square
|
18×18
|
X1T1818
|
14 tonnes
|
25 tonnes
|
5.00kgs
|
|
1”rectangle
|
20×24
|
X1T2024
|
16 tonnes
|
27 tonnes
|
7.63kgs
|
|
1”Square
|
24×24
|
X1T2424
|
16 tonnes
|
34 tonnes
|
9.15kgs
|
|
1”Square
|
30×30
|
X1T3030
|
18 tonnes
|
36 tonnes
|
14.3kgs
|
|
1”Square
|
36×36
|
X1T3636
|
19 tonnes
|
42 tonnes
|
20.6kgs
|
|
1”Square
|
48×48
|
X1T4848
|
22.5 tonnes
|
59 tonnes
|
36.62kgs
|
|
1”Round
|
30”Dia
|
X1TR30
|
12 tonnes
|
28 tonnes
|
11.23kgs
|
|
1”Round
|
36”Dia
|
X1TR36
|
15 tonnes
|
32 tonnes
|
16.16kgs
|
|
1”Round
|
48”Dia
|
X1TR48
|
18 tonnes
|
45 tonnes
|
28.75kgs
|
|
|
|
|
|
|
|
|
1-2/1” Square
|
18×18
|
X1.5T1818
|
14 tonnes
|
25 tonnes
|
7.73kgs
|
|
1-2/1” Square
|
24×24
|
X1.5T2024
|
16 tonnes
|
27 tonnes
|
13.73kgs
|
|
1-2/1” Square
|
30×30
|
X1.5T3030
|
19 tonnes
|
37 tonnes
|
21.46kgs
|
|
1-2/1” Square
|
36×36
|
X1.5T3636
|
20 tonnes
|
43 tonnes
|
31.00kgs
|
|
1-2/1” Square
|
48×48
|
X1.5T4848
|
23 tonnes
|
59 tonnes
|
55.00kgs
|
|
1-2/1” Round
|
30”Dia
|
X.1.5TR30
|
14 tonnes
|
28 tonnes
|
16.85kgs
|
|
1-2/1” Round
|
36”Dia
|
X1.5TR36
|
15 tonnes
|
32 tonnes
|
24.24kgs
|
|
1-2/1” Round
|
48”Dia
|
X1.5TR48
|
18 tonnes
|
45 tonnes
|
43.13kgs
|
|
|
|
|
|
|
|
|
2”Square
|
18×18
|
X2T1818
|
14 tonnes
|
26 tonnes
|
10.30kgs
|
|
2”rectangle
|
20×24
|
X2T2024
|
18 tonnes
|
28 tonnes
|
15.26kgs
|
|
2”Square
|
24×24
|
X2T2424
|
18 tonnes
|
28 tonnes
|
18.31kgs
|
|
2”Square
|
30×30
|
X2T3030
|
19.5 tonnes
|
38 tonnes
|
28.62kgs
|
|
2”Square
|
36×36
|
X2T3636
|
20 tonnes
|
44 tonnes
|
41.20kgs
|
|
2”Square
|
48×48
|
X2T4848
|
25 tonnes
|
63 tonnes
|
73.25kgs
|
|
2”Round
|
30”Dia
|
X2TR30
|
15 tonnes
|
30 tonnes
|
22.47kgs
|
|
2”Round
|
36”Dia
|
X2TR36
|
16 tonnes
|
32 tonnes
|
32.33kgs
|
|
1”Round
|
48”Dia
|
X2TR48
|
19 tonnes
|
45 tonnes
|
57.51kgs
|
|
|
|
|
|
|
|
|
2-2/1” Square
|
24×24
|
X2.5T2424
|
17.5 tonnes
|
28 tonnes
|
22.89kgs
|
|
2-2/1” Square
|
30×30
|
X2.5T3030
|
19 tonnes
|
39 tonnes
|
35.76kgs
|
|
2-2/1” Square
|
36×36
|
X2.5T3636
|
20 tonnes
|
45 tonnes
|
51.50kgs
|
|
2-2/1” Square
|
48×48
|
X25T4848
|
24 tonnes
|
60 tonnes
|
91.56kgs
|
|
2-2/1” Round
|
30”Dia
|
X2.5TR30
|
15 tonnes
|
29 tonnes
|
28.09kgs
|
|
2-2/1” Round
|
36”Dia
|
X2.5TR36
|
15.3 tonnes
|
33 tonnes
|
40.41kgs
|
|
2-2/1” Round
|
48”Dia
|
X2.5TR48
|
19 tonnes
|
46 tonnes
|
71.88kgs
|
|
|
|
|
|
|
|
|
3” Square
|
24×24
|
X3T2424
|
18tonnes
|
29 tonnes
|
27.47kgs
|
|
3” Square
|
30×30
|
X3T3030
|
20 tonnes
|
40 tonnes
|
42.92kgs
|
|
3” Square
|
36×36
|
X3T3636
|
22 tonnes
|
47 tonnes
|
61.80kgs
|
|
3” Square
|
48×48
|
X3T4848
|
26 tonnes
|
66 tonnes
|
109.876kgs
|
|
3” Round
|
30”Dia
|
X3TR30
|
15 tonnes
|
30 tonnes
|
33.70kgs
|
|
3” Round
|
36”Dia
|
X3TR36
|
16 tonnes
|
36 tonnes
|
48.49kgs
|
|
3” Round
|
48”Dia
|
X3TR48
|
20 tonnes
|
51 tonnes
|
86.26kgs
|
Applications
・Mobile cranes ・Aerial lifts ・Digger derricks ・Concrete pumpers ・Fire trucks ・Utility trucks ・Military vehicles
・Logging equipment ・Mining equipment ・Concrete protection liner ・Oil and gas equipment ・Wind energy equipment ・Boom trucks ・Tow trucks・Construction equipmment
・Logging equipment ・Mining equipment ・Concrete protection liner ・Oil and gas equipment ・Wind energy equipment ・Boom trucks ・Tow trucks・Construction equipmment
Variety of styles, support customized business, logo can be printed：
Square Crane Pad
Round Crane Pad
Crane Cribbing Block
Crane Jacking Block
Flat Surface Crane Pad
Antislip Surface Crane Pad
Multi Color Crane Pad
Rubber attached
Heavy Duty Cribbing Block
Multi-spell Style
Square Crane Pad
Round Crane Pad
Crane Cribbing Block
Crane Jacking Block
Flat Surface Crane Pad
Antislip Surface Crane Pad
Multi Color Crane Pad
Rubber attached
Heavy Duty Cribbing Block
Multi-spell Style
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
