Semi-auto aerosol tin can making machine sea salt spray aerosol can filling machine

Semi-auto aerosol tin can making machine sea salt spray aerosol can filling machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4800

≥3 Sets

US $4500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: 99.8%

Packaging Type:: Wooden box

Automatic Grade:: Semi-auto

Voltage:: 380v 50 hz 3 phase or single phase 220v 50hz

Place of Origin:: Shanghai, China

Brand Name:: Higee

Dimension(L*W*H):: 1200 * 8000 * 1500 mm

Weight:: 1000 KG

Name:: semi-auto aerosol filling machine

Model:: HG-SJ-3-1

Production capacity:: 1000-1800 cph

Liquid filling volume:: 30-750 ml

Inflaction filling volume:: 30-750 ml

Bottle type:: Aerosol cans , spray cans

Bottle diameter:: 35-65 mm

Bottle height:: 50-320 mm

Keywords 01:: Aerosol filling machine

Keywords 02:: Can crimping machine

Quick Details

Machinery Capacity:: 1000BPH

Packaging Material:: Wood

Filling Material:: aerosol,co2

Filling Accuracy:: 99.8%

Packaging Type:: Wooden box

Automatic Grade:: Semi-auto

Voltage:: 380v 50 hz 3 phase or single phase 220v 50hz

Place of Origin:: Shanghai, China

Brand Name:: Higee

Dimension(L*W*H):: 1200 * 8000 * 1500 mm

Weight:: 1000 KG

Name:: semi-auto aerosol filling machine

Model:: HG-SJ-3-1

Production capacity:: 1000-1800 cph

Liquid filling volume:: 30-750 ml

Inflaction filling volume:: 30-750 ml

Bottle type:: Aerosol cans , spray cans

Bottle diameter:: 35-65 mm

Bottle height:: 50-320 mm

Keywords 01:: Aerosol filling machine

Keywords 02:: Can crimping machine

Product Description

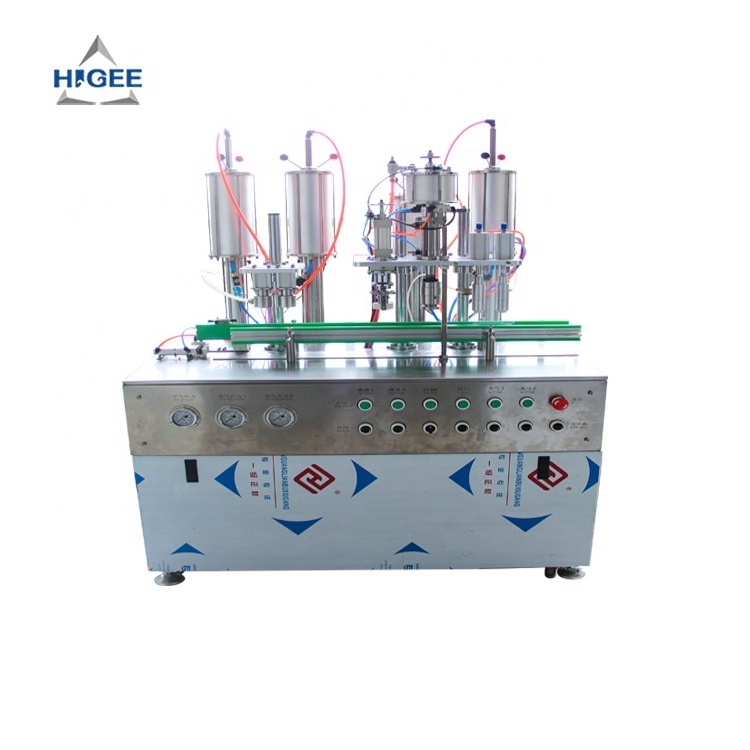

Semi-automatic monoblock machine included liquid filling machine, crimping machine, gas filling machine

Fully absorbed the advanced filling machine technology from the Swiss Pamasol.

1. Liquid can filling machine pours liquid raw materials of aerosol products into tanks according to requirement, with ±1% refilling accuracy. The maximum

filling capacity is 750ML, and filling speed is 600-1200 cans per hour. You can choose different products based on different
models.

2. gas filling machine has fully absorbed the advanced filling machine technology from the Swiss Pamasol Company.

3. Can crimping machine seals diameter and sealed depth are easy to adjust, and sealing quality is reliable. With high sealing speed, reliable sealing quality.

Technical Parameters:

Size of machine	(Main machine) 1000(L)×850(W)×1680(H)mm
Output speed	3000-5000cans/shift(8 hours)
Height of label	30-250mm
Max liquid volume(ml)	20-750ml(can be choose)
Max Gas volume(ml)	20-750ml(can be choose)
Thickness of label	±1mm (excluding object and label error)
Power supply	220V 3kw 50/60HZ (if power supply different, a transformer is needed)
