Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINA
-
Voltage:
-
380V/220V/440V
-
Power (kW):
-
37
-
Weight:
-
2700 KG
-
Name:
-
Profile production line
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
132:1
-
Screw Speed (rpm):
-
55 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINA
-
Voltage:
-
380V/220V/440V
-
Power (kW):
-
37
-
Weight:
-
2700 KG
-
Name:
-
Profile production line
Product Description
Features
Raw material → mixing → feeder→ double screw extruder → mold → vacuum calibration table → haul-off unit → cutting machine →stacker

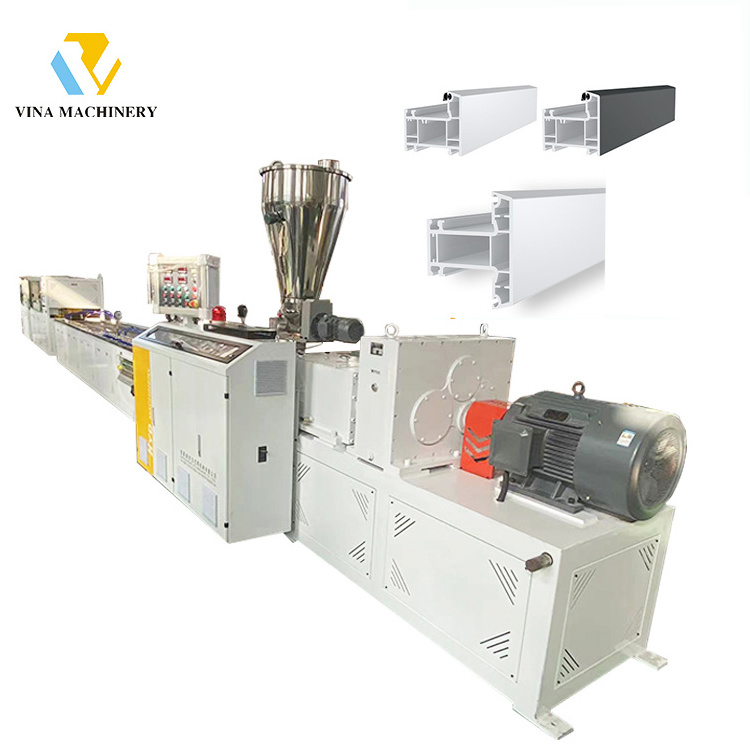

PVC window door machine ( 4 in 1) is made of a 65/132 conical twin screw extruder, one set of 4 in 1 mould, one set of
calibration table , haul-off & cutting combination (dust free) and stacker.
The best production profile is within 40*30mm.
PVC window door machine ( 2 in 1) is made of extruder, one set of 2 in 1 mould, one set of calibration table , haul-off &
cutting combination (dust free) and stacker.
The best production profile is within 60*40mm.
PVC window door machine ( 1 in 1) is made of extruder, one set of 1 in 1 mould, one set of calibration table , haul-off &
cutting combination (dust free) and stacker.
Main features:
high capacity, low power consumption, low water gas consumption, low occupation, low noise, low dust, etc.
PVC window door machine ( 4 in 1) is made of a 65/132 conical twin screw extruder, one set of 4 in 1 mould, one set of
calibration table , haul-off & cutting combination (dust free) and stacker.
The best production profile is within 40*30mm.
PVC window door machine ( 2 in 1) is made of extruder, one set of 2 in 1 mould, one set of calibration table , haul-off &
cutting combination (dust free) and stacker.
The best production profile is within 60*40mm.
PVC window door machine ( 1 in 1) is made of extruder, one set of 1 in 1 mould, one set of calibration table , haul-off &
cutting combination (dust free) and stacker.
Main features:
high capacity, low power consumption, low water gas consumption, low occupation, low noise, low dust, etc.
|
Item/Spec
|
SJSZ-51/105
|
SJSZ-55/110
|
SJSZ-65/132
|
SJSZ-80/156
|
SJSZ-92/188
|
|
Screw quantity
|
2
|
2
|
2
|
2
|
2
|
|
Screw rotating speed(r/min)
|
0-37
|
0-37
|
0-37
|
0-37
|
0-35
|
|
Central height(mm)
|
1000
|
1000
|
1000
|
1000
|
1200
|
|
screw length(mm)
|
1200
|
1440
|
1440
|
1800
|
2500
|
|
motor power(kw)
|
18.5
|
22
|
37
|
55
|
90
|
|
barrel heating power(kw)
|
15
|
18
|
22
|
28
|
36
|
|
capacity（kg/hr)
|
80-120
|
100-150
|
120-200
|
350-400
|
500-650
|
|
Dimension(L*W*H)(mm）
|
3260*1050*2157
|
3920*1530*2250
|
4235*1520*2450
|
4750*1550*2460
|
6725*1550*2814
|
PRODUCT CONFIGURATION
Siemens motor optional
Siemens smart PLC
Siemens electric part
ABB inverter
hard teeth gear box
Bi-metallic screw and barrel
Detailed Images
High Speed Mixer
.
Composed of hot mixing and cold mixing,
Can evenly mix materials.
It can make and adjust the raw material formula of PVC profiles.
Extruder
.
SJSZ65/132 conical twin screw extruder.
1)Screw and barrel are all from Zhoushan,with good quality.
2)Motor:Siemens
3) Heating method: Electric heating of cast aluminum.
4)Electric contactor:Siemens
5)Frequency inverter:ABB
2)Motor:Siemens
3) Heating method: Electric heating of cast aluminum.
4)Electric contactor:Siemens
5)Frequency inverter:ABB
Mould
.
Material 40Cr, anti rust treatment on the outer surface of the mold, polishing and electroplating treatment on the internal flow channel of the mold.
Depending on the size of the product, it can be made into single or double chambers
Calibration table
Motor-driven height and side movement
Motor-driven longitudinal movement
Manuel tilting movement
All parts that are in contact with water is made of stainless steel
Low maintenance cost
Hall off
.
1)Effective traction length:1.8-2.5meter
2)Motor power:3-7.5KW
3)Traction speed:2-15m/min
4)Speed control:by ABB inverter
Flexibility in pad dimensions
Two independent tracks with gearboxes
Speed adjustment by inverter
Pad width range from 220 to 500 mm
Tracks length from 1400 to 2000 mm
Pad dimensions can be modifed upon reques
Two independent tracks with gearboxes
Speed adjustment by inverter
Pad width range from 220 to 500 mm
Tracks length from 1400 to 2000 mm
Pad dimensions can be modifed upon reques
Cutter
.
Special design for profiles
Dust and chip-free cutting system
Improved cutting quality
Low maintenance cost
Knife heating system
Adjustable cutting speed
Dust and chip-free cutting system
Improved cutting quality
Low maintenance cost
Knife heating system
Adjustable cutting speed
Tripping table
.
Length 4-9 meters, pneumatic automatic flipping.
Table material is stainless steel .
Final product
