Quick Details
-
Motor design:
-
Single axle out without rim
-
Magnet Height:
-
45MM
-
Rated Power:
-
5000W
-
Speed:
-
80km/h (30-80km/h can be customized)
-
Max No-load RPM:
-
1000RPM
-
Continious current:
-
80A
-
Color:
-
Black
Quick Details
-
Voltage:
-
72V( 60V-144V Can be optional)
-
Place of Origin:
-
China
-
Motor Type:
-
BLDC Hub Motor with Permanent Magnet
-
Motor design:
-
Single axle out without rim
-
Magnet Height:
-
45MM
-
Rated Power:
-
5000W
-
Speed:
-
80km/h (30-80km/h can be customized)
-
Max No-load RPM:
-
1000RPM
-
Continious current:
-
80A
-
Color:
-
Black

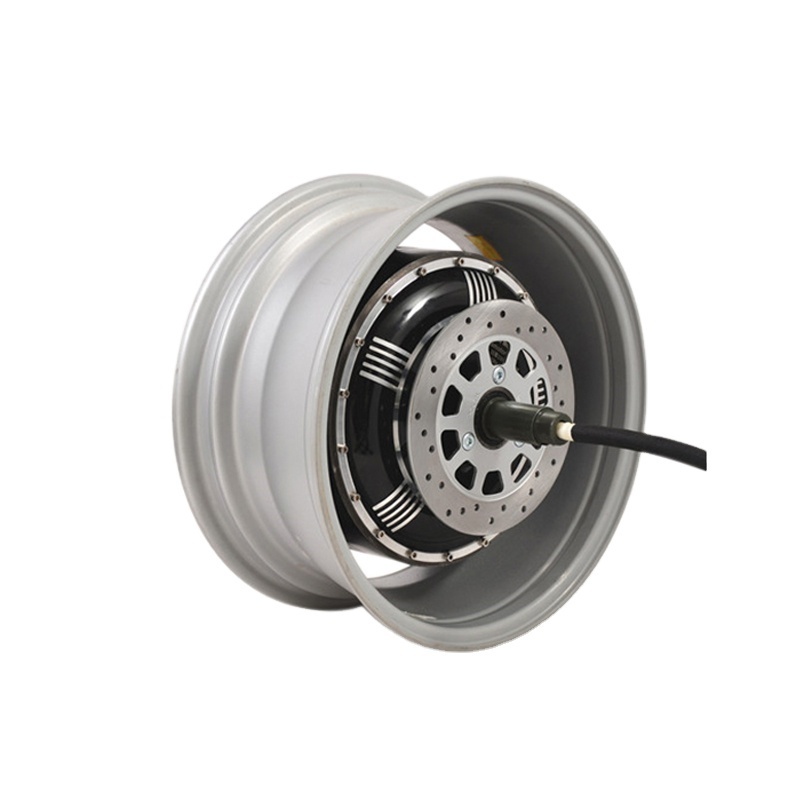

273 Car Hub Motor(45H) 5000W V2 Type
273 Single Shaft Car Hub Motor specially designed for Electric Car or 4-wheel electric vehicles, the rated power can be made 5000W,6000W OR 8000W for options.
Motor Type: BLDC Hub Motor with Permanent Magnet
Motor design: Single axle out without rim
PCD for rim installation: 4 x100mm, 5×114.3
CB:60MM/70MM
Magnet Height:45MM
of Pole Pairs: 28 pairs
Rated Power: 5000W V2
Peak Power: 7576W(Peak 1000W)
Rated Voltage: 72V( 60V-144V Can be optional)
Speed: 80km/h (30-80km/h can be customized)
Max. No-load RPM: 1000RPM
Max Torque: 200N.M
Max Efficiency: 88%
Continious current:80A
Max current:120A (Peak 170A in short time)
Brake type: Disc brake
Winding Core material: Aluminium
Cross Section of Phase wire: 16 mm2
Hall sensor phasing angle: 120 degree
Temperature Sensor: Optional
Working Temperature: 70 degree, Peak 120 degree
Waterproof Grade: IP54
Color: Black
W./ G..W. : 25kgs /26kgs
Package Size: 44*43*34CM
