Quick Details
-
Voltage:
-
380v
-
Power (kW):
-
1.5 kW
-
Weight (KG):
-
1200 KG
-
Applicable Industries:
-
Toy Factory, Tire Factory, Plastic Processing Plant, Rubber Processing Plant
-
Product name:
-
rubber 25T vulcanizing press test meter instrument laboratory machine
-
Total pressure:
-
25T
-
Hydraulic working pressure:
-
14.5 MPa
-
The maximum stroke of piston:
-
150 mm
-
Lift speed of the piston:
-
23mm/s
-
Heating method:
-
Electric heating
-
Hot plate spacing:
-
75 mm
-
Hot plate number:
-
2 layer
-
Motor Power:
-
1.5KW
-
Dimensions:
-
1.3m*0.55m*1.5m
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SKZ
-
Core Components:
-
other
-
Voltage:
-
380v
-
Power (kW):
-
1.5 kW
-
Weight (KG):
-
1200 KG
-
Applicable Industries:
-
Toy Factory, Tire Factory, Plastic Processing Plant, Rubber Processing Plant
-
Product name:
-
rubber 25T vulcanizing press test meter instrument laboratory machine
-
Total pressure:
-
25T
-
Hydraulic working pressure:
-
14.5 MPa
-
The maximum stroke of piston:
-
150 mm
-
Lift speed of the piston:
-
23mm/s
-
Heating method:
-
Electric heating
-
Hot plate spacing:
-
75 mm
-
Hot plate number:
-
2 layer
-
Motor Power:
-
1.5KW
-
Dimensions:
-
1.3m*0.55m*1.5m
Products Description

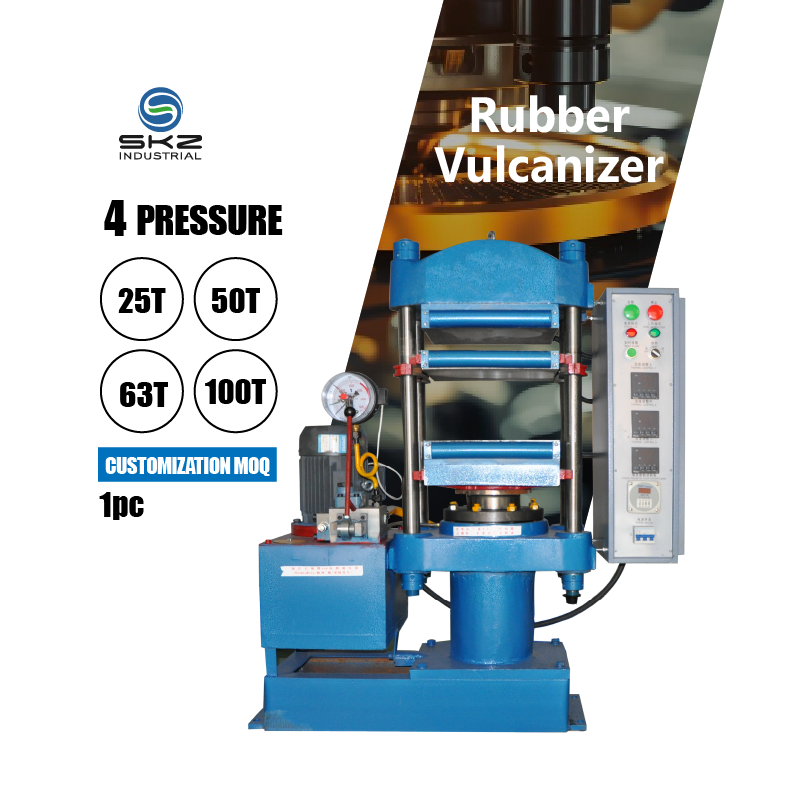

SKZ401 25T auto rubber parts making machine rubber tire car parts making machine
Rubber Vulcanizer is mainly used for rubber vulcanization, thermosetting plastics and insulation products of pression, This test machine has device of pressure, time, temperature automatic control device, can be realized clamping, regular work cycle, and can automatically pressure compensating
Features
1.Mainly consists of three parts: the host, hydraulic systems, electrical control system
2.It has device of pressure, time, automatic temperature control device, can be clamping, the timing of the work cycle, and can automatically pressure compensating
Specification
|
Total pressure
|
25T
|
50T
|
|
|
Hydraulic working pressure
|
14.5 MPa
|
16MPa
|
|
|
The maximum stroke of piston
|
150 mm
|
250mm
|
|
|
Lift speed of the piston
|
23mm/s
|
26mm/s
|
|
|
Heating method
|
Electric heating
|
|
|
|
Hot plate spacing
|
75 mm
|
125mm
|
|
|
Hot plate number
|
2layer
|
|
|
|
Hot plate size
|
350 mm×350 mm
|
400 mm×400 mm
|
|
|
Hot plate heating power
|
7.2 kW
|
9KW
|
|
|
Maximum Vapor pressure
|
0.6-0.8MPa
|
0.8MPa
|
|
|
Maximum Working Temprature
|
200℃
|
|
|
|
Maximum Vapor Temprature
|
170℃
|
|
|
|
Motor Power
|
1.5KW
|
|
|
|
Dimensions
|
1.3m×0.55m×1.5m
|
1.450m×0.650m×1.6m
|
|
|
Total weight
|
1.2T
|
2T
|
|
