Quick Details
-
name:
-
steel cable drum for wire
-
material:
-
Q235 steel
-
color:
-
silver , golden yellow
-
usage:
-
stranding wire or drawing wire
-
flange OD:
-
mainly 140-800mm
-
note:
-
special size made to order
Quick Details
-
Brand Name:
-
changhong
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
140-800mm
-
name:
-
steel cable drum for wire
-
material:
-
Q235 steel
-
color:
-
silver , golden yellow
-
usage:
-
stranding wire or drawing wire
-
flange OD:
-
mainly 140-800mm
-
note:
-
special size made to order

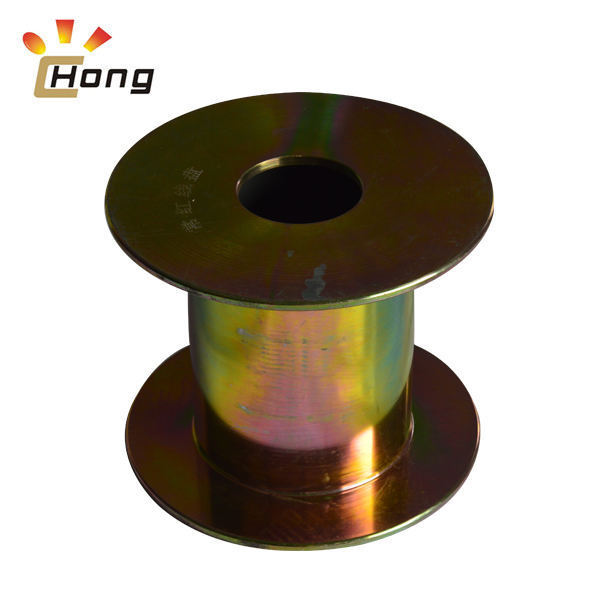

Galvanize Steel Drum For Wire Drawing Or Stranding
1.model 140-630mm,color: silver , golden yellow
2.we can provide standard dimension and we can made to order for special dimension
3.good dynamic balance
4.we can provide professional drawing and suggestion
5.application: wire stranding or wire drawing use.
Product dimension
| Model |
D1 Flange OD |
D2 Barrel OD |
L2 Traverse Width |
L1 Overall Height |
D3 Center-hole dia. |
| 140 | 140 | 64 | 94 | 110 | 28 |
| 260 | 260 | 180 | 240 | 260 | 100 |
| 300 | 300 | 219 | 270 | 290 | 127 |
| 400 | 400 | 245 | 280 | 304 | 127 |
| 500 | 500 | 273 | 300 | 324 | 127 |
| 630 | 630 | 351 | 400 | 432 | 127 |
Steel Bobbin 400mm
Steel Bobbin 500mm
Steel Bobbin 630mm
Steel Bobbin 300mm
Steel Bobbin 260mm
Usually we use iron shelf,we will advise suitable packing method.
