Quick Details
-
Dimension:
-
185*110*100CM
-
Place of Origin:
-
Zhejiang, China
-
Standard Color:
-
yellow,red,green,blue,black,white
-
Optional Color:
-
Army green,Camo,white, red,blue,black
-
Piston displacement:
-
200cc with gy6 engine
-
Gearbox:
-
1 Forward and 1 Reverse,plus 1 Nuetral gear
-
size:
-
185*100*110cm
-
Battery:
-
12V 9Ah
-
Brake:
-
Hydraulic Disc Brake
-
Transmission:
-
Manual Cluth
-
Max speed:
-
85km/h
Quick Details
-
Displacement:
-
150CC
-
Brand Name:
-
SIHAO
-
Tire Size:
-
10inch
-
Dimension:
-
185*110*100CM
-
Place of Origin:
-
Zhejiang, China
-
Standard Color:
-
yellow,red,green,blue,black,white
-
Optional Color:
-
Army green,Camo,white, red,blue,black
-
Piston displacement:
-
200cc with gy6 engine
-
Gearbox:
-
1 Forward and 1 Reverse,plus 1 Nuetral gear
-
size:
-
185*100*110cm
-
Battery:
-
12V 9Ah
-
Brake:
-
Hydraulic Disc Brake
-
Transmission:
-
Manual Cluth
-
Max speed:
-
85km/h

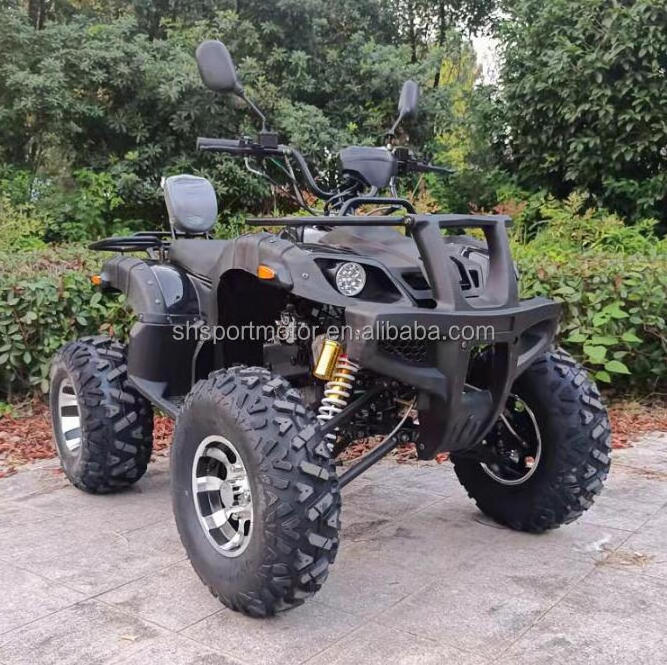

SIHAO ATV SERIES 150CC GY6
|
IDENTIFICAION |
|
|
Warranty |
24 Month |
|
Free Parts |
Free parts valued 0.1% full amount |
|
Certificaion |
CE |
|
ENGINE |
|
|
Engine Type |
Single cylinder,air cooled,4 stroke,fully automatic with reverse |
|
Bore & Stroke |
57.40x57.80mm(200cc:62.5x65.2mm) |
|
Compression Ratio |
10:1 |
|
Carburetor |
200cc carburetor |
|
Max.Torque |
9.0N.m/(6000r/min)(200cc:10.5N.m/(5500r/min)) |
|
Max. Power Output |
6.4KW/(7000r/min)(200cc:7.5kw/(7500r/min)) |
|
Ignition |
CDI |
|
Starter |
Electric start+kick start |
|
Starting Current |
9AH |
|
TRANSMISSION |
|
|
Clutch |
Automatic without clutch |
|
Gearbox |
1 forward and 1 reverse gear,plus 1 neutral gear |
|
Primary Drive |
Chain Drive |
|
Max. Speed |
85km/h |
|
BRAKE SYSTEM |
|
|
Front Brake |
Double drum brake(hand operated,optional term:foot operated) |
|
Rear Brake |
Hydraulic disc brake(hand operated,optional term:foot operated) |
|
SUSPENSIOIN |
|
|
Front Suspension |
Bold independent double-wishbone&real airbag shock |
|
Rear Suspension |
Length rear fork and swing arm with single airbag shock |
|
Middle Suspension |
Spring-shock&damping piece |
|
WHEEL |
|
|
Front Wheels |
10 inch aluminum rim |
|
Rear Wheels |
10 inch aluminum rim |
|
Front Tyres |
23x7-10 |
|
Rear Tyres |
22x10-10 |
|
TECHNOCAL SPECIFICATION |
|
|
LengthxWidthxHeight |
1850x1100x1000mm |
|
Wheelbase |
1100mm |
|
Front Tread |
760mm |
|
Number of Seat |
1 |
|
Seat Height to Ground |
870mm |
|
Foot Step to Seat |
480mm |
|
Fuel Capacity |
8L |
|
Net Weight |
190KGS |
|
Gross Weight |
210KGS |
|
Max. Loading Capacity |
250KGS |
|
Ground Clearance |
240mm |
|
PAC KING |
|
|
Packing Dimensions |
1520x820x825mm |
|
MOQ |
1 PCS |
|
accessory |
front light, turn lights,wingmirror |
|
Container Loading Capacity |
Qty/20Fcl:20PCS Qty/40HQ:48PCS |
