Quick Details
-
Marketing Type:
-
Other
-
Engine Brand:
-
Bada
-
Weight:
-
480 KG
-
Name:
-
Farmer Tractor
-
Product name:
-
Walking tractor
-
Minimum ground clearance(mm):
-
210/260
-
Engine:
-
Diesel engine
-
Model Number:
-
TK15/18/20
-
The wheel base(mm):
-
680 ~1000 (Stepless adjustment)
-
Tire size:
-
6.00-16( w-tire)
-
Overall dimensions (L*W*H)mm:
-
2170x 845 x 1150/2220x 1250 x 1220
-
The steering mode:
-
rodents nested together
-
Structure weight(KG):
-
290/480/480
Quick Details
-
Rated Power (HP):
-
15HP/18HP/20HP
-
Brand Name:
-
BADA
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
Other
-
Engine Brand:
-
Bada
-
Weight:
-
480 KG
-
Name:
-
Farmer Tractor
-
Product name:
-
Walking tractor
-
Minimum ground clearance(mm):
-
210/260
-
Engine:
-
Diesel engine
-
Model Number:
-
TK15/18/20
-
The wheel base(mm):
-
680 ~1000 (Stepless adjustment)
-
Tire size:
-
6.00-16( w-tire)
-
Overall dimensions (L*W*H)mm:
-
2170x 845 x 1150/2220x 1250 x 1220
-
The steering mode:
-
rodents nested together
-
Structure weight(KG):
-
290/480/480
2022 year Mini 12 hp 18hp 15hp 20hp hand walking agricultural two wheel plough tractor
walking tractor kenya
two wheel tractors china walking tractor
Product Description

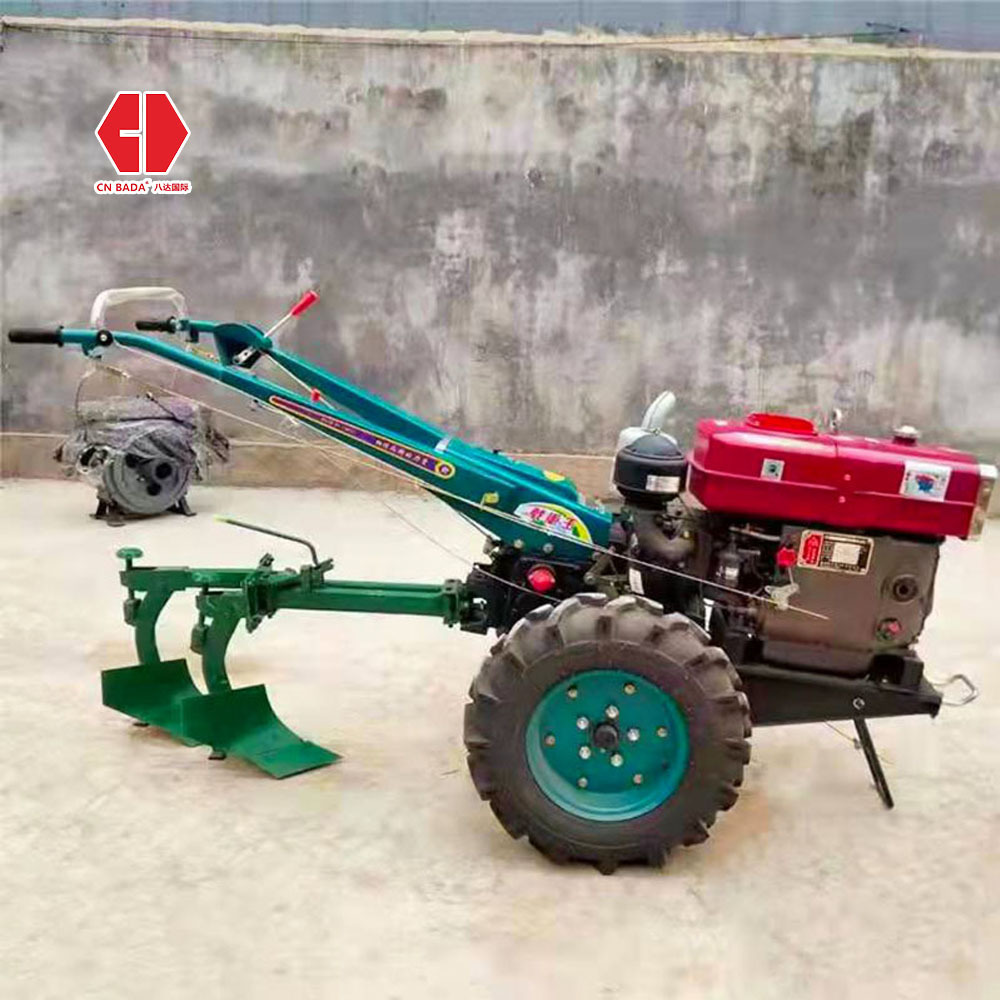

The Walking Tractoris a small tractor, a means of transportation and agricultural machinery popular in Chinese villages and towns. It is powered by a diesel engine. Its compact, flexible and powerful features make it very popular with farmers.
Advantages:
• High work efficiency.
• Easy for operation,easy to control.
• Competive price with excellent quality
• Small volume, light weight,compact structure and perfect cultivate performance
• Powered by water-cooling diesels engine. Low fuel consumption for higher power.
• Multifunctional,it can be matched with kinds of accessories.
|
Model
|
|
|
BD-15
|
BD-18 (181chassis)
|
BD-20 (181chassis)
|
||
|
Structure weight（KG）
|
|
|
290
|
480
|
480
|
||
|
Overall dimensions (L*W*H)mm
|
|
|
2170x 845 x 1150
|
2220x 1250 x 1220
|
2220x 1250 x 1220
|
||
|
Type
|
|
|
single cylinder, horizontal
|
single cylinder, horizontal
|
single cylinder, horizontal
|
||
|
Power
|
|
|
10.5KW/15HP
|
13.2KW/18HP
|
14.4KW/20HP
|
||
|
Traveling speed
|
|
Forward km/h
|
I 2-3, II 5-7, III 14-18
|
I 2-3, II 5-7, III 14-18
|
I 2-3, II 5-7, III 14-18
|
||
|
|
|
Reverse km/h
|
R 11-13.5
|
R 11-13.5
|
R 11-13.5
|
||
|
The wheel base（mm）
|
|
|
680 ~ 740 （Stepless adjustment）
|
680 ~ 1000 （Stepless adjustment）
|
680 ~ 1000 （Stepless adjustment）
|
||
|
Tire size
|
|
|
6.00-12（ w-tire）
|
6.00-16（ w-tire）
|
6.00-16（ w-tire）
|
||
|
Minimum ground clearance（mm）
|
|
|
210
|
260
|
260
|
||
|
Transmission
|
|
|
two belt
|
three belt
|
three belt
|
||
|
The central drivetrain Transmission
|
|
|
cylindrical gear
|
cylindrical gear
|
cylindrical gear
|
||
|
Drivetrain final drive
|
|
|
single-stage spur gear circle column wheel drive
|
single-stage spur gear circle column wheel drive
|
single-stage spur gear circle column wheel drive
|
||
|
The steering mode
|
|
|
rodents nested together
|
rodents nested together
|
rodents nested together
|
||
|
Rodents nested together
|
|
|
ring-up
|
ring-up
|
ring-up
|
||
|
Fuel tank pressure（MPa）
|
|
|
0.098
|
0.098
|
0.098
|
||
|
The fuel tank volume（L）
|
|
|
11
|
13
|
13
|
||
|
Engine lubricating oil(L)
|
|
|
1.5-2
|
2.5-3.2
|
2.5-3.2
|
||
|
Gearbox lubricants
|
|
|
3-3.3
|
3.5-4.5
|
3.5-4.5
|
||
|
The cooling water injection amount
|
|
|
12-13
|
13.5-15
|
13.5-15
|
||
|
Type of tractor
|
Gearbox style
|
|
triple-plate,single-action,standard,dry-friction,long engaging friction
|
triple-plate,single-action,standard,dry-friction,long engaging friction
|
triple-plate,single-action,standard,dry-friction,long engaging friction
|
||
|
|
Gearbox style
|
|
main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift, (3 + 1)×2 composition formula
circular gear wheel column |
main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift, (3 + 1)×2 composition formula
circular gear wheel column |
main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift, (3 + 1)×2 composition formula
circular gear wheel column |
||
|
Type of tractor
|
|
|
dual-purpose for both traction & drive
|
dual-purpose for both traction & drive
|
dual-purpose for both traction & drive
|
||
It can be equipped with a variety of agricultural aids and accessories：
Disc Plough, Driving Disk, Two-way disc plough, Opposed Light Disc Harrow, Mounted Light Duty Disc Harrow, Mounted Middle Duty Disc Harrow, Compact Model Disc Harrow, Heavy Duty Hydraulic Disc Harrow, Hydraulic Furrow Plough etc
Details Images
Recommended Products
Application
Large horsepower, high efficiency, suitable for farming in wasteland, dry land, hills, orchards, vegetable gardens and greenhouses.
