Quick Details
-
Place of Origin:
-
Guangdong, China
-
Input Voltage:
-
AC 100~240 V, 50/60 Hz
-
PoE Standard:
-
IEEE802.3 Af/at
-
Customize:
-
accept
-
Network distance:
-
100 meters
-
Transmission Method:
-
store-and-forward
-
Operating temperature:
-
-20°~ 55°C
-
Safty:
-
CE Mark, commercial
-
Warranty:
-
1 Year
-
PoE Ports:
-
1-16 Port Support PoE
-
Connector Type:
-
10/100/1000M Copper RJ-45 Ports
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
48 G
-
Place of Origin:
-
Guangdong, China
-
Input Voltage:
-
AC 100~240 V, 50/60 Hz
-
PoE Standard:
-
IEEE802.3 Af/at
-
Customize:
-
accept
-
Network distance:
-
100 meters
-
Transmission Method:
-
store-and-forward
-
Operating temperature:
-
-20°~ 55°C
-
Safty:
-
CE Mark, commercial
-
Warranty:
-
1 Year
-
PoE Ports:
-
1-16 Port Support PoE
-
Connector Type:
-
10/100/1000M Copper RJ-45 Ports

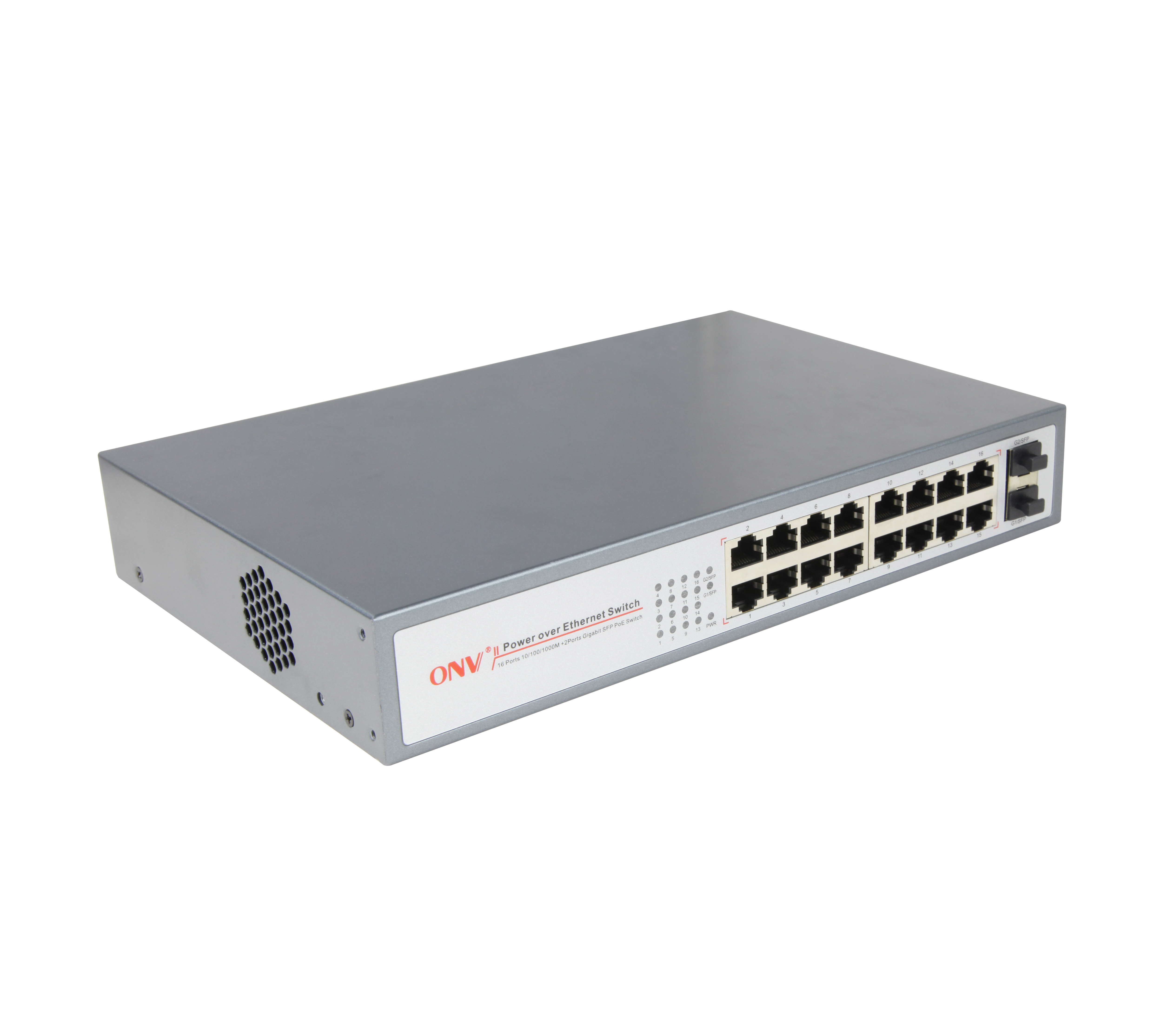

The ONV-POE33016PF series is a gigabit PoE fiber switch independently developed by ONV. It has 16*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber slot ports. Port 1-16 can support IEEE 802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 250W(at-400W).
Gigabit access, Gigabit SFP fiber port uplink
—
All series support “Gigabit Ethernet port and Gigabit SFP port”combination, which enables users to
flexibly build networking to meet the needs of various scenarios.
— Support non-blocking wire-speed forwarding.
—
Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply
— 16*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
— IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
— Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
— Low power consumption, galvanized steel casing, The Fan active cooling.
— Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
— CE, FCC, RoHS.
— The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link, PoE.
|
Model
|
ONV-IPS33016PF
|
ONV-IPS33016PF-at
|
||
|
Interface Characteristics
|
|
|
||
|
Fixed Port
|
16*10/100/1000Base-T PoE ports (Data/Power)
2*100/1000Base-X uplink SFP slot ports(Data) |
|
||
|
Ethernet Port
|
10/100/1000Base-T,Auto-sensing,Full/half duplex MDI/MDI-X self-adaption
|
|
||
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
||
|
Optical Cable
|
Multi mode: 850nm 0 ~ 550M,single mode: 1310nm 0 ~ 40KM,
1550nm 0 ~ 120KM.
|
|
||
|
SFP Slot Port
|
Gigabit SFP optical fiber interface, default matching optical modules
(optional
order single-mode / multi-mode, single fiber / dual fiber optical
module. LC)
|
|
||
|
Chip Parameter
|
|
|
||
|
Network Protocol
|
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-TX IEEE802.3z 1000Base-X; IEEE802.3x |
|
||
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
||
|
Switching Capacity
|
48Gbps
|
|
||
|
Forwarding Rate@64byte
|
26.78Mpps
|
|
||
|
MAC
|
8K
|
|
||
|
Buffer Memory
|
4M
|
|
||
|
LED Indicator
|
Power:PWR(yellow), system :SYS(yellow), network ;Link/Act(yellow),
POE: PoE (green), ,Fiber port: L/A(green)
|
|
||
|
Reset Switch
|
Yes, One-button factory reset
|
|
||
|
PoE & Power
|
|
|
||
|
PoE Port
|
Port 1 to Port 16 IEEE802.3af/at @ POE
|
|
||
|
Power Supply Pin
|
Default: 1/2 (+), 3/6 (-)
|
|
||
|
Max Power Per Port
|
30W; IEEE802.3af/at
|
|
||
|
Total PWR / Input Voltage
|
250W (AC100-240V)
|
400W (AC100-240V)
|
||
|
Power Consumption
|
Standby:<18W;Full load:<240W
|
Standby:<22W;Full load:<400W
|
||
|
Power Supply
|
Built-in power supply, AC 100~240V 50-60Hz 5.0A
|
Built-in power supply, AC 100~240V 50-60Hz 6.6A
|
||
|
Physical Parameter
|
|
|
||
|
Operation TEMP / Humidity
|
-20~+55°C;5%~90% RH Non condensing
|
|
||
|
Storage TEMP / Humidity
|
-40~+75°C;5%~95% RH Non condensing
|
|
||
|
Dimension (L*W*H)
|
270.5*181*44.5mm
|
|
||
|
Net /Gross Weight
|
<1.7kg / <2.2kg
|
<1.7kg / <2.2kg
|
||
|
Installation
|
Desktop, 19 inch 1U cabinet
|
|
||
|
Certification & Warranty
|
|
|
||
|
Lightning protection
|
Lightning protection: 4KV 8/20us; Protection level: IP30
|
|
||
|
Certification
|
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;
|
|
||
|
Warranty
|
3 years , lifelong maintenance.
|
|
||
|
Model
|
Description
|
|
ONV-POE33016PF
|
PoE fiber switch with 16* 10/100/1000M RJ45 ports and
2*100/1000M SFP fiber slot ports2, Port 1-16 can
support IEEE 802.3af/at PoE standard, Built-in 250W power supply.
|
|
ONV-POE33016PF-at
|
PoE fiber switch with 16* 10/100/1000M RJ45 ports and
2*100/1000M SFP fiber slot ports , Port 1-16 can
support IEEE 802.3af/at PoE standard, Built-in 400W power supply.
|
|
PACKING LIST
|
CONTENT
|
|
QTY
|
UNIT
|
||||
|
|
26-port full gigabit managed PoE switch
|
|
1
|
SET
|
||||
|
|
AC Power Cable
|
|
1
|
PC
|
||||
|
|
Mounting Kits(Hanging Ear)
|
|
1
|
SET
|
||||
|
|
User Guide
|
|
1
|
PC
|
||||
|
|
Warranty Card
|
|
1
|
PC
|
||||
|
Note:
PoE switch does not match the SFP module.
|
|
|
|
|
||||
