line array truss line array speaker truss speaker tower truss

line array truss line array speaker truss speaker tower truss

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Height:: 8m

truss:: 290x290mm

Type:: spigot Truss

Color:: Silver

main tube:: 50x3mm

Brace tube:: 20X2MM

Packing:: Carton ,Air Bubble Film

Advantages:: light weight and large load

Quick Details

Place of Origin:: Guangdong, China

Material of curved truss:: Aluminum 6082-T6

Name:: aluminum studio truss

Height:: 8m

truss:: 290x290mm

Type:: spigot Truss

Color:: Silver

main tube:: 50x3mm

Brace tube:: 20X2MM

Packing:: Carton ,Air Bubble Film

Advantages:: light weight and large load

Specification

Speaker truss system.

Aluminum truss ,Lighting truss , Project truss , Trussing , Trusses ,. Stage truss , Folding truss ,Square truss , Triangle truss , Exhibition truss . Circular truss ,Spigot truss ,Display truss , Foldable truss . 290*290mm truss ,390*390mm truss , Stage truss system equipments . Performance equipments, Stage , Folding stage . Assemble stage , LED stage . Stage system , Glass stage .Aluminum truss china suppliers ,Aluminum truss China ,Aluminum truss Guangzhou ,Auminum truss factory, Export truss, aluminum truss manufactures .

Truss type ----Spigot truss and bolt truss

Speaker design
Height	8m
Use	Hanging speaker,audio ,array line
Material	Aluminum 6082-T6
Truss color	silver
Use truss size	290x290mm
Max .load	2000kg

Product Description

We usually make the following size:

6m speaker truss,made of 290x290mm spgiot square truss or bolt truss

8m speaker truss ,made of 400x400mm, spigot square truss or bolt truss

10m speaker truss,made of 400x400mm,spigot square truss or bolt truss

12m speaker truss,made of 400x400mm ,spigot square truss or bolt truss

Height	Loading	Wind load	Weight
6M	600GK	20M/S	220KG
8M	800GK	20M/S	270KG
10M	1000KG	20M/S	420KG
12M	1400GK	20M/S	530KG
16M	2300KG	20M/S	693KG

X-3004C (T3.0MM) ----- Screw truss

300X300MM

Pipe diameter:50mm

Wall thickness :3mm

Material:alu alloy-6082-T6

Brace diameter:25x2mm

X-HT44 ----- Spigot truss

400X400MM
Pipe diameter:50mm
Wall thickness :3mm
Material:alu alloy-6082-T6
Brace diameter:25x2mm

Spigot ladder truss.

Any size ladder bolt or spigot truss..

Spigot triangle truss .

Any size triangle truss

Truss lift sytem

Installation Process

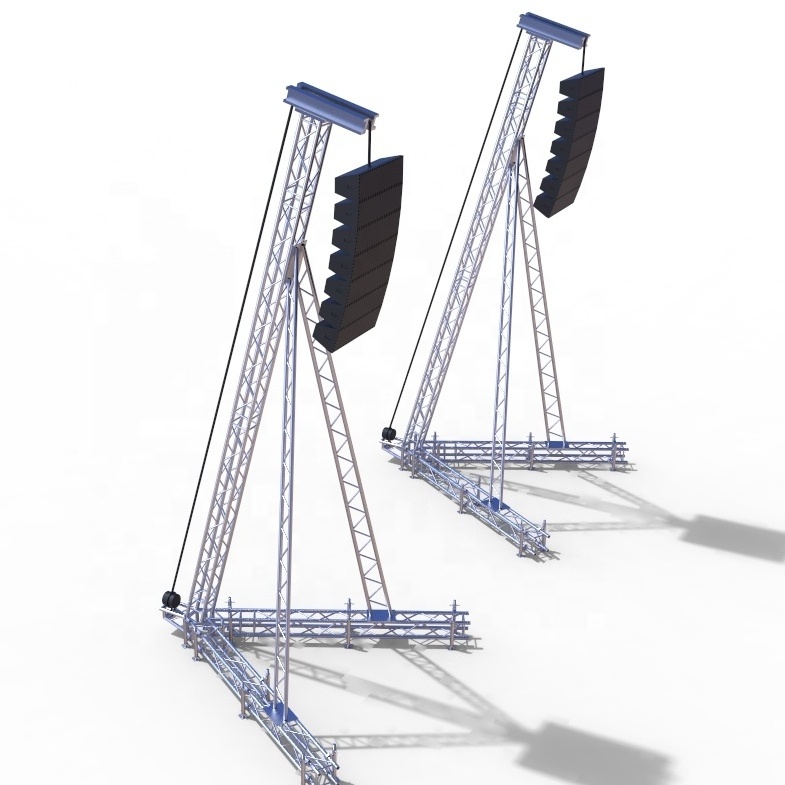

A" speaker truss , mainly used for flying line arrays speaker , the highest height is 8m , and load 2000kg at most . its advantage is only use some accesseries to concert nomal specification truss togther.

The other audio speaker truss design:

X-PA-01.

max.load 2000kg

Height:5-8m

HT34 TRUSS

X-PA-04.

max.load 2000kg

Height:5-8m

HT34 TRUSS

X-PA-03.

MAX,LOAD 3000KG

Height:5-8m

HT34 TRUSS

truss base and long outrigger.

aluminum sleeve block.

steel top section.

A part of roof truss design and use truss detail.

This Roof truss is an arch roof system designed to cover Large Stage , It`s attractive look is great for middle or large size events such as concerts,fashion and entertainment shows ,theatrical performances and many others.However,it`s design can allow big loads to be placed on the structrue.
