Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EMC
-
Model Number:
-
EMC2012A EMC2012B EMC2012C
-
Main body shell:
-
Zinc die cast housing
-
Frequency:
-
950-2150MHz
-
Gain:
-
10dB 20dB 30dB ±2 dB
-
Return Loss::
-
12dB
-
Working voltage:
-
DC10-20V
-
Power pass:
-
500mA
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EMC
-
Model Number:
-
EMC2012A EMC2012B EMC2012C
-
Main body shell:
-
Zinc die cast housing
-
Frequency:
-
950-2150MHz
-
Gain:
-
10dB 20dB 30dB ±2 dB
-
Return Loss::
-
12dB
-
Working voltage:
-
DC10-20V
-
Power pass:
-
500mA

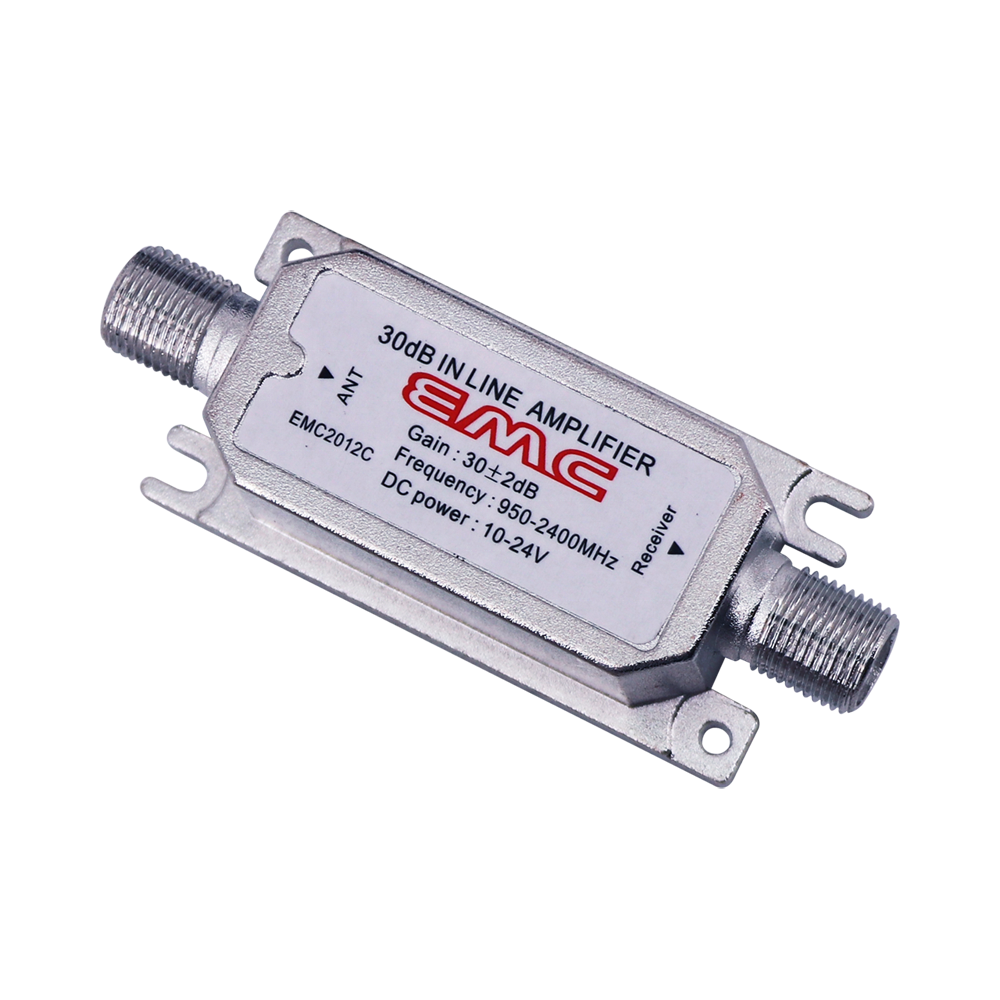

Satellite IF in-line Amplifier 950-2150MHz
Features:
1.SAT band line amplifiers,Frequency 950-2400MHz
2.Zinc die cast housing.
3.Design for in-line boosting SAT IF
4.Powered by the receiver via coaxial cable
5.500mA power pass for LNB operation requirement
Specifications:
| Product model | EA2012A | EA2012B | EA2012C |
| Frequency Range: | 950-2400MHz | 950-2400MHz | 950-2400MHz |
| Gain | 10 ±2dB | 20 ±2dB | 30 ±2dB |
| Return loss | 10dB | 12dB | 12dB |
| DC Current Consumption: | 18(mA) | 20(mA) | 25(mA) |
| DC power pass : | 500mA | ||
| Working Voltage: | 12-20(V) | ||
| Working temperature: | -40~80 (℃) | ||
| Product size: | 27X67X16mm | ||
| Packing: | 200PCS/CTN (40x19x28 CM) | ||
Our factory series of similar products
Trade patterns:
1.Normal lead time: 3days for sample order;10~30 days for production order.
2.Payment: T/T,
3.DHL/ Fedex/ UPS/ TNT/ EMS /Air shipping/ Sea shipping is available
4.Shipping port: Guangzhou/ ShenZhen/ ZhuHai.
5.Payment condition: 30% before production, 70% before delivery.
