Quick Details
-
Filter Type:
-

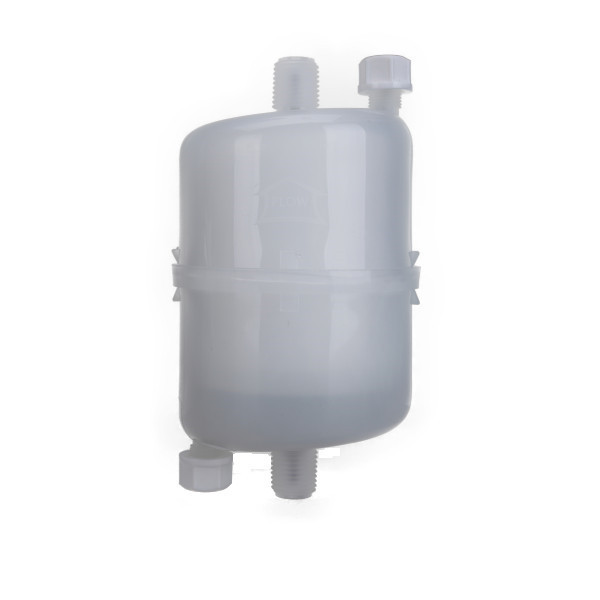

2 Micron Capsule Filter
-
Filter Media:
-
Polypropylene Membrane
-
Micron:
-
0.2, 0.45, 0.65, 1.0, 2.0, 5.0, 10, 25, 50 um
-
Housing Material:
-
Polypropylene
-
Filtration Efficiency:
-
99%
-
Length:
-
2.5 inch, 5 inch, 10 inch
-
Filtration Area:
-
0.1, 0.2, 0.4 m2
-
Max. P:
-
5 bar
-
Connection:
-
1/4" , 1/2" NPT, Hose Barb, Tri Clamp, etc
-
Application 1:
-
APIs, culture media, etc
Quick Details
-
Weight (KG):
-
0.5
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS Filter
-
Filter Type:
-
2 Micron Capsule Filter
-
Filter Media:
-
Polypropylene Membrane
-
Micron:
-
0.2, 0.45, 0.65, 1.0, 2.0, 5.0, 10, 25, 50 um
-
Housing Material:
-
Polypropylene
-
Filtration Efficiency:
-
99%
-
Length:
-
2.5 inch, 5 inch, 10 inch
-
Filtration Area:
-
0.1, 0.2, 0.4 m2
-
Max. P:
-
5 bar
-
Connection:
-
1/4" , 1/2" NPT, Hose Barb, Tri Clamp, etc
-
Application 1:
-
APIs, culture media, etc
PRODUCT CATEGORIES
PARAMETER INFORMATION
|
Materials Of Construction
|
Filter Media:
|
Polypropylene Membrane
|
|
|
Support Layers:
|
Polypropylene
|
|
|
Outer Cage, Core:
|
Polypropylene
|
|
|
Micron:
|
0.20, 0.45, 0.65, 1.0, 5.0, 10, 20, 50 um
|
|
Dimensions
|
Outer Diameter:
|
68mm
|
|
|
Length:
|
2.5 Inch, 5 Inch, 10 Inch
|
|
|
Connectors:
|
1/4", 1/2"MNPT; 1/4", 3/8", 1/2" Hose Barb; 1.5", 1/2" TC
|
|
|
Filtration Area(m2)
|
0.12 m2, 0.22 m2 , 0.44 m2
|
|
Operating Conditions
|
Normal Operating Temperature:
|
Up to 60℃ (140℉)
|
|
|
Max.Operating Temperature.:
|
80℃ (176℉) at P≤1.0 bar (14psi)
|
|
|
Max. Differential Pressure
|
|
|
|
Normal Flow direction:
|
4.2 bar (60 psi) at 25℃ (77℉)
|
|
|
Reverse flow direction:
|
2.1 bar (30psi) at 25℃ (77℉).
|
|
|
Sterilization:
|
Autoclave sterilization 30 minutes
|
APPLICATION
COMPANY PROFILE
EXHBITION
WHY CHOOSE US
PACKING AND SHIPPING
FAQ
1. How can we get the quotation of filters?
Kindly please let us know the specifications, such as the material, micron, length, adapter/connector, etc,
2. What's the minimal order quantity?
We don't have MOQ on filters, sample order is available,
3 . How long about your delivery ?
Sample order is about 4 days, formal order depends on your quantity, please contact us,
Kindly please let us know the specifications, such as the material, micron, length, adapter/connector, etc,
2. What's the minimal order quantity?
We don't have MOQ on filters, sample order is available,
3 . How long about your delivery ?
Sample order is about 4 days, formal order depends on your quantity, please contact us,
