Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
S2600WP-16G-2TS
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
16+2+2sfp full gigabit managed poe switch
-
POE ports:
-
16 10/100/1000Mbps POE
-
Uplink ports:
-
2 gigabit sfp+2gigabit rj45
-
POE type:
-
IEEE802.3af/at compliant
-
Power:
-
300w built-in
-
Size:
-
295mm*195mm*45mm
-
Flash:
-
16MB
-
Ram:
-
128MB
-
Warranty:
-
1 year
-
Certification:
-
CE RoHS FCC
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
128Gbps
-
Brand Name:
-
OEM
-
Model Number:
-
S2600WP-16G-2TS
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
16+2+2sfp full gigabit managed poe switch
-
POE ports:
-
16 10/100/1000Mbps POE
-
Uplink ports:
-
2 gigabit sfp+2gigabit rj45
-
POE type:
-
IEEE802.3af/at compliant
-
Power:
-
300w built-in
-
Size:
-
295mm*195mm*45mm
-
Flash:
-
16MB
-
Ram:
-
128MB
-
Warranty:
-
1 year
-
Certification:
-
CE RoHS FCC

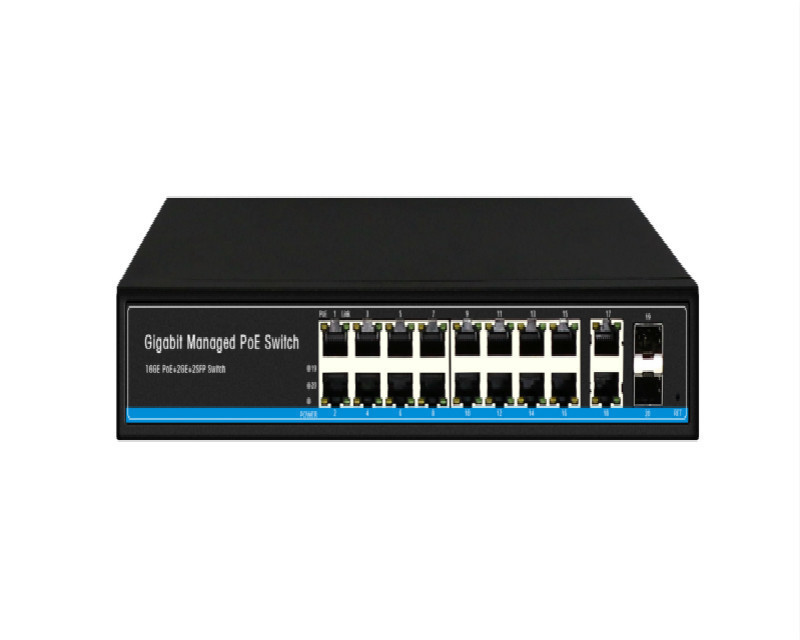

20 port network switch L2 managed 300w 16 port gigabit poe switch with 2 sfp 2 utp
S2600WP-16G-2TS is a fully Gigabit L2 network management 16 port gigabit poe switch,designed and developed solely for the purpose of building high-performance gigabit network requirements.16 full Gigabit POE RJ45 ports and 2 Gigabit RJ45 and 2 Gigabit SFP (Mini GBIC),Provide a comprehensive security protection system.Perfect QoS strategy and rich VLAN function.Management and maintenance are simple and can be applied to small and medium enterprises,core layer of community and school.
Provides 16 10/100/1000M adaptive RJ45 port, all the ports with line speed forwarding capacity,provide 2 Gigabit rj45 2 SFP (Mini GBIC) expansion slot, fully protecting user investment, convenient and flexible.
Comprehensive safety protection system
Simple operation,simplifying the management of network;combination of ARP attack protection function,completely solve the network ARP spoofing attacks,supporting port security,can limit the number of port MAC address.MAC address effective defense attack,support DoS attack protection,effectively guarantee the network security.
Powerful VLAN capabilities
IEEE802.1Q VLAN,meets the needs of different users,making the network more convenient,efficient and safe.
Rich QoS strategy
3 priority modes based on port,IEEE802.1p and DSCP to guarantee the priority processing of key business data,support traffic control function, and can reasonably allocate bandwidth.
Multilevel access control policy
Powerful hardware ACL capacity, support L2~L4 data stream classification.easy network monitoring,traffic regulation,priority weight markers and data forwarding control,support time based ACL control,easy to realize the time accurate access control needs,support port and MAC 802.1x based authentication based on user access,easy setup.
Reliable design
STP/RSTP/MSTP two layer link protection technology, greatly improve the ability of fault tolerance,redundancy link,to ensure stable operation of the network,provide static convergence and dynamic aggregation of two kinds of convergence pattern,effectively increase the link bandwidth, improve link reliability,while achieving load balancing,link backup,support multicast management,through the IGMP Snooping technology,effective inhibition of multicast overload caused by network congestion.
Secure network management and maintenance
Advanced watchdog Technology
System integration against false halt system,when the system resources exhausted or the system suspended tasks and other unexpected circumstances,the system will automatically restart, to ensure reliable operation of the network.
Features
16 10/100/1000Mbps gigabit POE Ethernet ports,2 gigabit rj45 2 gigabit fiber sfp uplink
300w power built-in
16MB flah 128MB ram memory
Packet forwarding 14.44Mpps
4.1M buffer,500Mhz CPU
Integrates address look-up engine, supporting 8K absolute MAC addresses
Automatic address learning and address aging
Layer 2 Features
Auto-MDI/MDI-X detection on each RJ45 port
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Supports broadcast storm control
Supports VLAN
- IEEE 802.1Q tag-based VLAN, up to 30 VLANs groups, out of 4094 VLAN IDs
- Port-based VLAN, up to 10 VLAN groups
- MTU VLAN (Multi-tenant Unit VLAN)
Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Maximum 3 trunk / LACP groups, up to 4 ports per trunk / LACP group
Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol
- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
Port mirroring to monitor the incoming or outgoing traffic on a particular port, many-to-1
Loopback protection to avoid broadcast loops
Quality of Service
Ingress / Egress Rate Limit per port bandwidth control
2 priority queues on all switch ports
Traffic classification
- Port-based priority
- IEEE 802.1p-based priority
- IP TOS / DSCP-based priority
- TCP / UDP port-based QoS
Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
Supports IGMP Snooping v1,v2,v3
Security
Physical port to MAC address binding
TCP/UDP port number filter: Forwarding or discarding typical network applications
Management
Switch Management Interfaces
Web smart management
SNMP v1 / v2 / v3 switch management
SSH v1/v2 management
Supports DHCP Option and DHCP Relay
Firmware upload/download via HTTP
Configuration upload/download through HTTP
Hardware reset button for system reboot or reset to factory default
|
Hardware Specifications
|
|
|
|
|||
|
POE Ports
|
16 10/100/1000BASE-TX RJ45 Auto-MDI/MDI-X ports
|
|
|
|||
|
SFP/mini-GBIC Slots
|
2 1000BASE-X RJ45 and 2 SFP interfaces, shared with Port-9 to Port-12
|
|
|
|||
|
Switch Architecture
|
Store-and-Forward
|
|
|
|||
|
Switch Fabric
|
128Gbps / non-blocking
|
|
|
|||
|
MAC Address Table
|
8K entries, automatic source address learning and ageing
|
|
|
|||
|
Shared Data Buffer
|
4.1M embedded memory for packet buffers
|
|
|
|||
|
Memory
|
16MB flash 128MB ram
|
|
|
|||
|
Flow Control
|
Back pressure for half-duplex; IEEE 802.3x pause frame for full-duplex
|
|
|
|||
|
Reset Button
|
< 5 sec: System reboot
> 5 sec: Factory default |
|
|
|||
|
Voltage input
|
100-265V AC 50/60Hz, 52v 2.5a DC
|
|
|
|||
|
ESD Protection
|
Contact Discharge 8KV DC
Air Discharge 8KV DC
|
|
|
|||
|
Dimensions (W x D x H)
|
295mm*195mm*45mm
|
|
|
|||
|
Weight
|
2.9kg
|
|
|
|||
|
Layer 2 Functions
|
|
|
|
|||
|
|
Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Bandwidth Control / Broadcast Storm Control |
|
|
|||
|
|
Display each port's speed duplex mode, link status, flow control status, auto negotiation status
|
|
|
|||
|
|
TX / RX / Both
Many-to-1 monitor |
|
|
|||
|
|
802.1Q tagged-based VLAN, up to 30 VLAN groups, out of 4094 VLAN IDs
Port-based VLAN, up to 10 VLAN groups MTU VLAN |
|
|
|||
|
|
Allow to assign low / high priority on each port
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy |
|
|
|||
|
|
Control MAC address binding
TCP & UDP Filter |
|
|
|||
|
|
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol |
|
|
|||
|
Link Aggregation
|
1 group of 4-Port 10/100/1000BASE-T trunk supported
|
|
|
|||
|
Configuration Back / Restore
|
Configuration backup / restore through Web interface
|
|
|
|||
|
IGMP Snooping
|
IGMP (v1 / v2 / v3) Snooping, up to 32 multicast groups
|
|
|
|||
|
Management Functions
|
|
|
|
|||
|
Basic Management Interfaces
|
Telnet/Console based CLI,Web browser smart management, SNMP v1 / v2 / v3,SSH v1/v2
|
|
|
|||
|
Network Media
|
Twisted-Pair
10BASE-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters 100BASE-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters 1000BASE-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters Fiber-Optic Cable 1000BASE-SX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module) 1000BASE-LX : 9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/60/70/120 kilometers (varying on SFP module) |
|
|
|||
|
Standard Conformance
|
|
|
|
|||
|
Regulation Compliance
|
FCC Part 15 Class A, CE, RoHS
|
|
|
|||
|
Standard Compliance
|
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE802.3af/at standard POE
IEEE 802.1Q VLAN
IEEE 802.1p QoS
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
|
|||
|
Environment
|
|
|
|
|||
|
|
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
|
|
|||
|
|
|
|
|
|||
|
|
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
|
|
|||
|
|
|
|
|
|||
Shipped by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
10pcs/ctn,kraft paper box or OEM package.
How about the quality?
All our products manufactured with new brand materials,best design with strict old-aging testing and qc tested.
Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.
Do you provide only PCBA?
Sure,PCBA is welcome here.
Is there MOQ limit?
Welcome to place sample order to check the quality before bulk orders.
Any qty welcome,but as you know,different qty with different price.
Large qty means low cost.
How about warranty?
All products provided by CCTECH provide 1 year warranty.
