Quick Details
-
Max. Spindle Speed (r.p.m):
-
3500 r.p.m
-
Max. Weight of Workpiece(kg):
-
500
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
2000
-
Travel (X Axis)(mm):
-
250 mm
-
Travel (Z Axis)(mm):
-
2050 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
4850*2030*2375
-
Brand Name:
-
handemo
-
Model Number:
-

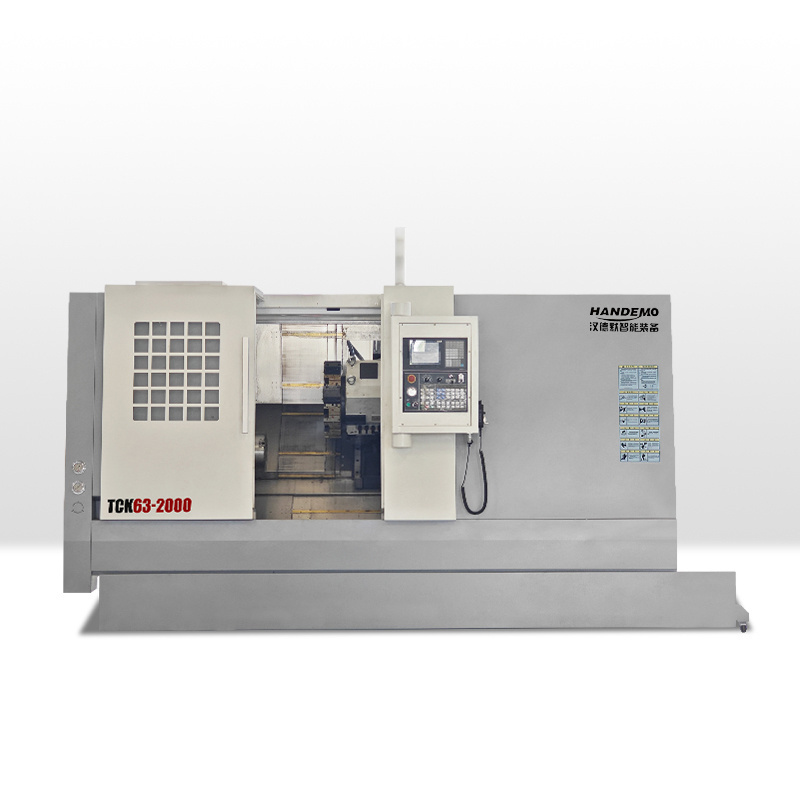

TCK63-2000
-
Voltage:
-
AC380V
-
Weight (KG):
-
7000
-
Marketing Type:
-
New Product 2021
-
Product name:
-
TCK63-2000
Quick Details
-
Type:
-
TURNING CENTER
-
Max. Length of Workpiece (mm):
-
2000
-
Year:
-
2024
-
Max. Spindle Speed (r.p.m):
-
3500 r.p.m
-
Max. Weight of Workpiece(kg):
-
500
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
2000
-
Travel (X Axis)(mm):
-
250 mm
-
Travel (Z Axis)(mm):
-
2050 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
4850*2030*2375
-
Brand Name:
-
handemo
-
Model Number:
-
TCK63-2000
-
Voltage:
-
AC380V
-
Weight (KG):
-
7000
-
Marketing Type:
-
New Product 2021
-
Product name:
-
TCK63-2000
|
Project |
Units |
Specifications |
Remarks |
|
|
Maximum turning diameter on bed |
mm |
720 |
|
|
|
Maximum cutting length |
mm |
2000 |
|
|
|
Maximum cutting diameter |
mm |
500 |
12 stations (cutter head opposite side diameter 450, cutter tower center height 125) |
|
|
Standard cutting diameter |
mm |
380 |
||
|
Maximum turning diameter on a skateboard |
mm |
420 |
|
|
|
Spindle end type and co de |
|
A2-8(optional A2-11) |
Spindle unit |
|
|
Main shaft hole diameter |
mm |
80 |
|
|
|
Maximum pass bar diameter |
mm |
70 |
|
|
|
Single spindle headstock |
Spindle speed range / Maximum spindle output torque |
r/min/Nm |
50 ~ 3500/215 |
|
|
Main motor Output power |
30 minutes/continuo us |
kW |
18.5/15 |
|
|
Standard chuck |
Chuck diameter |
inch |
10( optional 12) ”” |
|
|
X axis fast shift speed |
m/min |
12 |
|
|
|
Z-axis fast shift speed |
m/min |
16 |
|
|
|
X-axis stroke |
mm |
250 |
|
|
|
Z-axis stroke |
mm |
2050 |
|
|
|
Standard knife holder form |
|
Horizontal 12 station servo |
|
|
|
Tailstock travel |
mm |
1950 |
|
|
