- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Pantera
-
Engine Type:
-
4-Stroke
-
Displacement:
-
110cc
-
Max. Speed:
-
> 80km/h
-
Compression Ratio:
-
9.1:1
-
Max. Speed (Km/h):
-
≥85
-
Ignition:
-
CDI
-
Starting System:
-
E-start
-
Transmission System:
-
Chain drive
-
Product Name:
-
Hot Selling Spoke Wheel Cub Motocicleta 110 from China
-
Brake(F/R):
-
Drum/Drum
Quick Details
-
Color:
-
Blue
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
PT110-5B
-
Brand Name:
-
Pantera
-
Engine Type:
-
4-Stroke
-
Displacement:
-
110cc
-
Max. Speed:
-
> 80km/h
-
Compression Ratio:
-
9.1:1
-
Max. Speed (Km/h):
-
≥85
-
Ignition:
-
CDI
-
Starting System:
-
E-start
-
Transmission System:
-
Chain drive
-
Product Name:
-
Hot Selling Spoke Wheel Cub Motocicleta 110 from China
-
Brake(F/R):
-
Drum/Drum

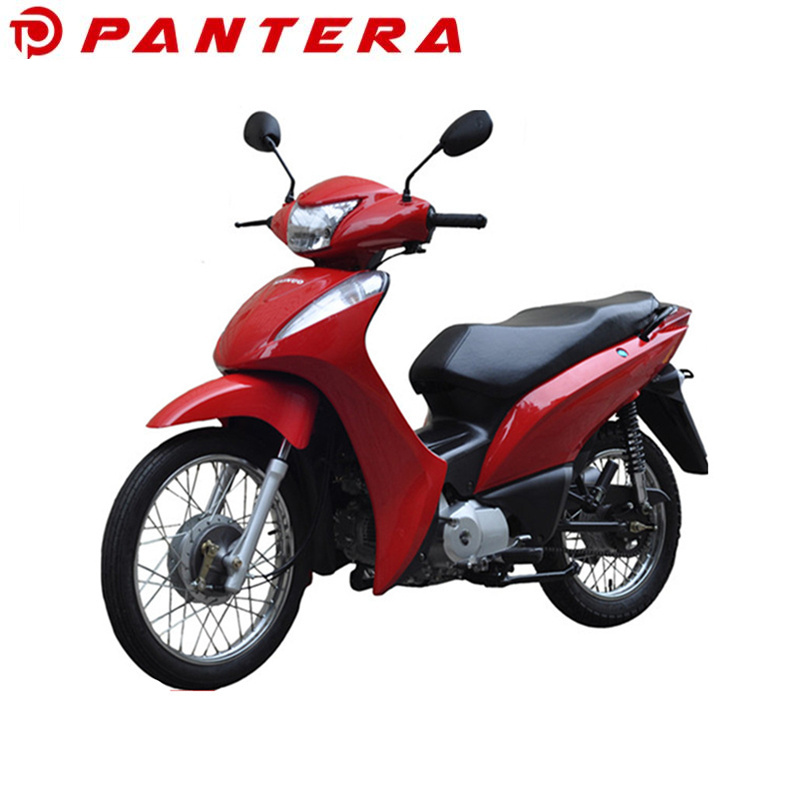

Hot Selling Spoke Wheel Cub Motocicleta 110cc Mini Moto from China
| Technical | |
| Engine Type: | Single cylinder,wind-cooled, four stroke |
| Displacement (ml): | 107 |
| Bore X Stroke(mm): | 52.4x49.5 |
| Compression Ratio: | 9.1:1 |
| Max. Power(kw/r/min) | 5.2/8000 |
| Max. Torque (N.m/r/min): | 7.2/5000 |
| Max. Speed (Km/h): | ≥85 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: | E-start |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front Brake: | disk brake |
| Rear Brake: | Drum brake |
| Front Tire: 2 | 2.50-17 |
| Rear Tire: | 3.00-14 |
| Battery: | 12V/5Ah |
| DIMENSIONS | |
| L X W X H (mm): | 1830*690*1010 |
| Seat Height (mm): | 710 |
| Wheelbase (mm): | 1270 |
| Min. Ground Clearance(mm): | 120 |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 1 Person |
| Dry. Weigth (kg): | 92 |
| Engine Oil(L): | 1L SAE15W/40 |
| Fuel Tank Capacity (L): | 4.3 |
| Others | |
| Packing Size (mm): | 1700×460×860 |
| Packing Weight (kg): | 112 |
| Container Loading(40HQ): | 105 |
Motorcycle Selling Points:
1.The new gearshift structure design make the gearshift is easy to operate, and with clear gear,
to prevent the possibility of chaos gear and cross-gear from the structure.
2.We can assure you of both the price and quality are the best.
3.Prompt delivery time.
4.We are a company with strong strength, we not only have Alibaba platform being a golden supplier,
but also have been made-in-china.
5.Our products are will received at home and abroad. Mainly exported to more than 100 countries
and regions in Europe, Africa, Middle East and south Ease Asia
6.Despite the fine quality, our prices are always competitive, being an experienced manufacturer,
we know how to guarantee the quality, and control the cost at the same time.
Different Angle View
we can provide all the colors according to the costomers requirements:
Warrenty
1. We offer one year warranty or engine 6000 kms on the basis of normal riding.
2. 1% easy broken spare parts are provided freely.
| Accessory Name |
| Lock sets |
| Headlight |
| Rear light |
| Front and rear turn signals |
| A full set of rubber parts |
| A full set of standard parts |
| Carburettor |
| Ignition / ignition coil |
| Rectifier |
| Side cover, tail cover |
| meter |
| tank |
| Clutch line |
| Throttle cable |
| Mileage Line |
| Double throttle cable |
| Front brake line |
Production Line
Finished Products
Loading
