Tank internal and external wall are made of international quality standards of sanitary 304 stainless steel, the Polyurethane
insulation thickness between the inner and outer is 50-200mm. Conic bottom install inlet and outlet pipes. Tank installation
cleaning system, tank roof device, tank bottom device, rotating wine outlet tube, inflatable device, liquid level meter, sampling
valve and other supporting valves, equipped with temperature sensor, with the help of PLC auto-control, the equipment can reach to
automatic and semi-automatic control. The height of conic bottom is quarter of the total height. The ratio of tank diameter and
height of tank is a quarter of the total height. The ratio of tank diameter and height of tank is 1:2-1:4, the cone angle usually
between 60°-90°.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
Customer's Requests
-
Weight:
-
200 KG
-
Machinery Capacity:
-
200-2000kg
-
Product Name:
-
High-end beer equipment
-
Material:
-
SUS304/SUS316/red Copper
-
Heating method:
-
Electricity/Steam/Direct fire
-
Application:
-
Restaurant/Brewery/Bar
-
Control system:
-
Manual/Semi-automated
-
Function:
-
Brewing and Fermenting Beer
-
Raw material:
-
Water/malt/rice/hops
-
Thickness:
-
Inner:3mm Outside:2mm
-
Insulation:
-
Polyurethane/rockwool
-
Insulation thickness:
-
80mm
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tonsen
-
Voltage:
-
220V 380V
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
Customer's Requests
-
Weight:
-
200 KG
-
Machinery Capacity:
-
200-2000kg
-
Product Name:
-
High-end beer equipment
-
Material:
-
SUS304/SUS316/red Copper
-
Heating method:
-
Electricity/Steam/Direct fire
-
Application:
-
Restaurant/Brewery/Bar
-
Control system:
-
Manual/Semi-automated
-
Function:
-
Brewing and Fermenting Beer
-
Raw material:
-
Water/malt/rice/hops
-
Thickness:
-
Inner:3mm Outside:2mm
-
Insulation:
-
Polyurethane/rockwool
-
Insulation thickness:
-
80mm
-
Certification:
-
CE ISO
Video Description

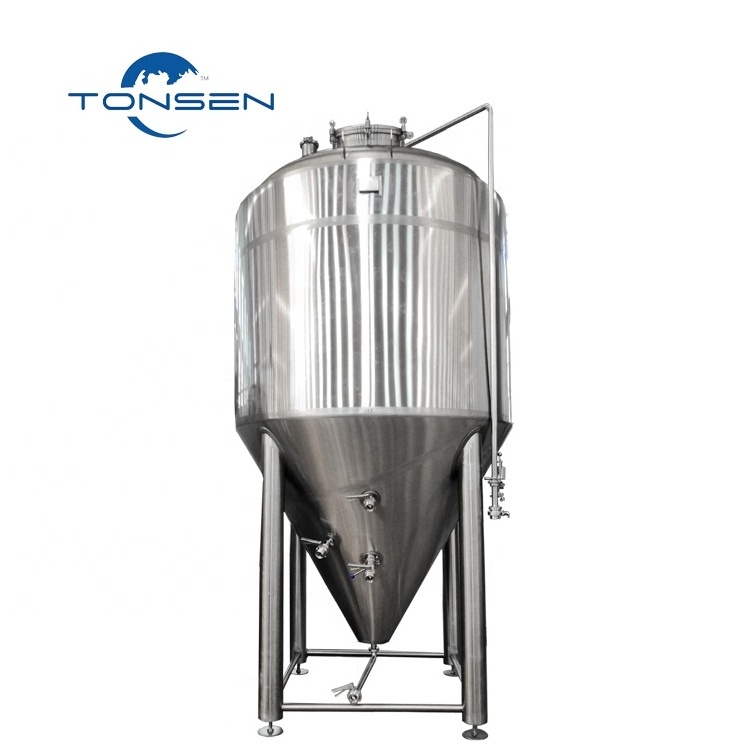

Fermentation systems is made up of Fermentation Tank and Bright Beer Tank quantities are based on customer's request. According to
different fermenting request, structure of fermentation tank be be designed accordingly.Generally Fermentation Tank structure is
dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .There is a cooling jacket on tank cone
section,columnar part has two or three cooling jackets.This not only can meet the relevant requirements of cooling, guarantee
cooling rate of fermentation tank, also help to precipitation and storage the yeast.
different fermenting request, structure of fermentation tank be be designed accordingly.Generally Fermentation Tank structure is
dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .There is a cooling jacket on tank cone
section,columnar part has two or three cooling jackets.This not only can meet the relevant requirements of cooling, guarantee
cooling rate of fermentation tank, also help to precipitation and storage the yeast.
Products Description
|
Fermenter
|
SUS304
|
0-20000L
|
|
Interior
|
SUS304
|
Thickness 3mm
|
|
Exterior
|
SUS304
|
Thickness 2mm
|
|
Bottom cone
|
60 degree
|
Yeast outlet
|
|
Cooling method
|
Glycol cooling
|
Dimple jacket
|
|
Temperature control
|
PT100
|
|
|
Pressure display
|
Pressure gauge
|
|
|
Pressure relie
|
pressure relief valve
|
|
|
Cleaning
|
SUS304
|
CIP arm with 360 spary cleaning ball
|
|
Insulation layer
|
Polyurethane
|
70~80mm
|
|
Manway
|
SUS304
|
Clamp or flange manway
|
|
Sampling valve
|
SUS304
|
Aseptic type, no dead coner
|
|
Dry hops adding port
|
SUS304
|
Optional, clamp type
|
|
Carbonation device
|
SUS304
|
Optional
|
|
Yeast adding tank
|
SUS304
|
1L/2L
|
|
Bright beer tank
|
SUS304
|
0-20000L, single or double walled available
|
2. The details of fermentation tanks.
3. Main features of fermentation tanks.
1) Capacity:100 liter to 100000 liter as requirement.
2) Material: stainless steel 304/316 or red copper, as requirement.
3) General configuration: mill, brew house, fermentation, cooling and cleaning etc.
4) Heating principle: electric heating, steam heating, gas fire etc.
5) Electricity voltage/frequency can be customized.
6) Running in a high automatization and intellectualization,no pollution.
2) Material: stainless steel 304/316 or red copper, as requirement.
3) General configuration: mill, brew house, fermentation, cooling and cleaning etc.
4) Heating principle: electric heating, steam heating, gas fire etc.
5) Electricity voltage/frequency can be customized.
6) Running in a high automatization and intellectualization,no pollution.
Parameters
1. Effective capacity: 500L/1000L/2000L
2. Dimple plate cooling jacket on tank body and conical bottom
3. Insulation: polyurethane, TH=80mm
4. Interior thickness: 3mm; Exterior thickness: 2mm
5. Dished head and taper angle 60°
6. Temperature sensor TP100
7. Side manhole with pressured door
8. With solenoid valve, breathing valve, pressure relief valve, sample valve, beer outlet valve, drain valve and accessories
matched
9. Hops adding port
10. Inner tank mechanical polishing and out plate surface protection ribbon polished on welds
11. CIP 360°rotating spray device
12. Material: SUS304, brushed outer shell
13.4pcs completely SUS304 heavy duty legs with leveling pad
2. Dimple plate cooling jacket on tank body and conical bottom
3. Insulation: polyurethane, TH=80mm
4. Interior thickness: 3mm; Exterior thickness: 2mm
5. Dished head and taper angle 60°
6. Temperature sensor TP100
7. Side manhole with pressured door
8. With solenoid valve, breathing valve, pressure relief valve, sample valve, beer outlet valve, drain valve and accessories
matched
9. Hops adding port
10. Inner tank mechanical polishing and out plate surface protection ribbon polished on welds
11. CIP 360°rotating spray device
12. Material: SUS304, brushed outer shell
13.4pcs completely SUS304 heavy duty legs with leveling pad
Packing & Delivery
1) All tanks will be packed with soft protection material and mounted on steel frame
2) All accessories and spare parts will be packed with soft protection material and then put into iron box
3) After loaded into containers, all equipment will be fixed to the containers.
2) All accessories and spare parts will be packed with soft protection material and then put into iron box
3) After loaded into containers, all equipment will be fixed to the containers.
Our Company
Our company is a
professional beer equipment manufacturer
. We are specialized in professional design,manufacture,installation and
commissioning of various beer equipments and supporting facilities.
We pay a lot attention to details and we have excellent after sales service.
We can supply all equipments for beer.
commissioning of various beer equipments and supporting facilities.
We pay a lot attention to details and we have excellent after sales service.
We can supply all equipments for beer.
Achievement
With years experience, we have export our equipment to over 20 countries, such as USA, UK, Germany, France, Mexico, Italy, India,
and so on.
Our enginners could help equipment installation, adjusting and worker training overseas.
and so on.
Our enginners could help equipment installation, adjusting and worker training overseas.
FAQ
1.Q:Are you a manufacturer?
A: Yes,we have been in providing the professional products in this field for 15 years.
2.Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio, email ,picture.....if large project , we can arrange the worker help you
to install it in your country .
3.Q :How you pack the products ?
A: Normally as the export standard packaging or as you required.
4.Q: What is your available port of shipment?
A:Qingdao port,shanghai etc.
5.Q: Is customized available ?
A: Yes, according to your detailed drawings you provide
6.Q:Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio, email ,picture.....if large project , we can arrange the worker help you
to install it in your country .
7.Q:After Sale Service
1. Warranty policy three years from shipment
2. We will send you the replacement after received the broken part
8.Q: Are you trading company or manufacturer ?
A: We are factory and welcome to visit us at any time.
9.Q: How long is your delivery time?
A: Generally single tanks need 20-30 days, for whole plant need 40-50days.
10.Q: Do you have CE and UL certification?
A: Yes.
11.Q: What is your terms of payment ?
A: 50% deposit and 50% before delivery.
A: Yes,we have been in providing the professional products in this field for 15 years.
2.Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio, email ,picture.....if large project , we can arrange the worker help you
to install it in your country .
3.Q :How you pack the products ?
A: Normally as the export standard packaging or as you required.
4.Q: What is your available port of shipment?
A:Qingdao port,shanghai etc.
5.Q: Is customized available ?
A: Yes, according to your detailed drawings you provide
6.Q:Ask:how to install the machine ?
Answer:we can intrust the install the machine by vedio, email ,picture.....if large project , we can arrange the worker help you
to install it in your country .
7.Q:After Sale Service
1. Warranty policy three years from shipment
2. We will send you the replacement after received the broken part
8.Q: Are you trading company or manufacturer ?
A: We are factory and welcome to visit us at any time.
9.Q: How long is your delivery time?
A: Generally single tanks need 20-30 days, for whole plant need 40-50days.
10.Q: Do you have CE and UL certification?
A: Yes.
11.Q: What is your terms of payment ?
A: 50% deposit and 50% before delivery.
