Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB19A-Q10Y
-
Mounting Hole Size:
-
8/10/12/16/19/22MM
-
Product Name:
-
Push button switch
-
Operation Type:
-
Momentary/Latching
-
Switch Combination:
-
1NO/ 1NO1NC/ 2NO2NC
-
Head Type:
-
Flat/High/Domed Head
-
Terminal type:
-
2/3/4/6/8 Pin Terminal
-
Enclosure Material:
-
Stainless Steel
-
Led color & voltage:
-
/
-
Connector Customized:
-
Acceptable
-
Product Type:
-
Metal push button switch
-
Certification:
-
CE ROHS
Quick Details
-
Protection Level:
-
IP65/IP67
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB19A-Q10Y
-
Mounting Hole Size:
-
8/10/12/16/19/22MM
-
Product Name:
-
Push button switch
-
Operation Type:
-
Momentary/Latching
-
Switch Combination:
-
1NO/ 1NO1NC/ 2NO2NC
-
Head Type:
-
Flat/High/Domed Head
-
Terminal type:
-
2/3/4/6/8 Pin Terminal
-
Enclosure Material:
-
Stainless Steel
-
Led color & voltage:
-
/
-
Connector Customized:
-
Acceptable
-
Product Type:
-
Metal push button switch
-
Certification:
-
CE ROHS
Recommend Products
Products Description

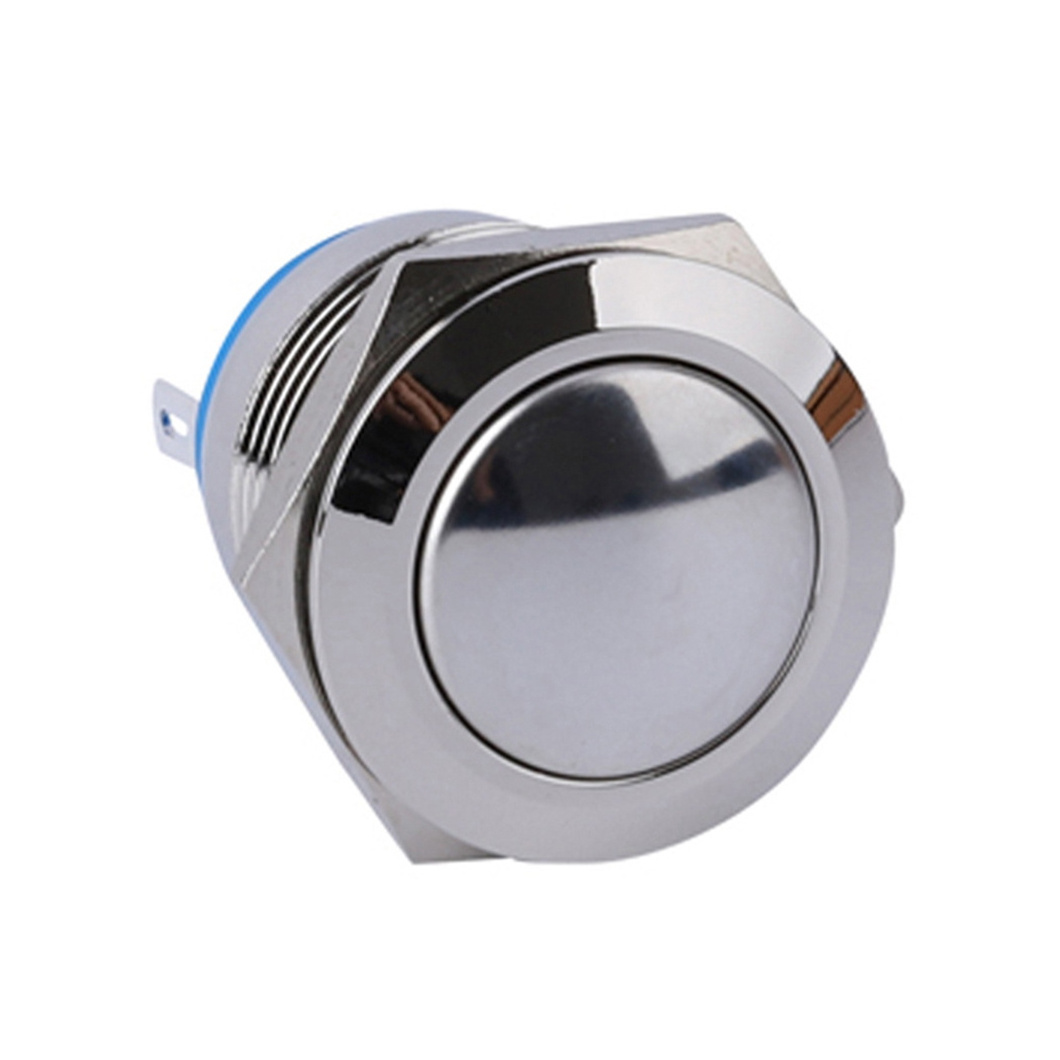

22mm 1NO Flat Round Head Super Short Housing Waterproof Momentary Stainless Steel Push Button Switch
|
Product Name
|
Meatl Push Button Switch
|
|
Mounting Hole
|
8/10/12/16/19/22mm
|
|
Operation Type
|
Momentary/ Latching
|
|
Switch Combination
|
1NO/ 1NO1NC/ 2NO2NC
|
|
Head Type
|
Flat/High/Domed Head
|
|
Terminal type
|
Solder Terminal
|
|
Enclosure Material
|
Brass nickel/ Stainless steel
|
|
Delivery Days
|
7-13 days after payment received
|
|
Contact Resistance
|
50 mΩ max
|
|
Insulation Resistance
|
1000MΩ Min
|
|
Dielectric Intensity
|
2000VAC
|
|
Operating Temperature
|
-20°C ~+55°C
|
|
Wire Connector / Wire soldering
|
Acceptable and with fast shipping
|
|
Accessories
|
Nut, Rubber ,Waterproof O-ring
|
