Quick Details
-
Brand Name:
-
C-Tech
-
Model Number:
-
FT-A
-
Product name:
-
concrete flow table
-
Type:
-
motorized
-
Application:
-
concrete flow testing
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
C-Tech
-
Model Number:
-
FT-A
-
Product name:
-
concrete flow table
-
Type:
-
motorized
-
Application:
-
concrete flow testing
Product Description

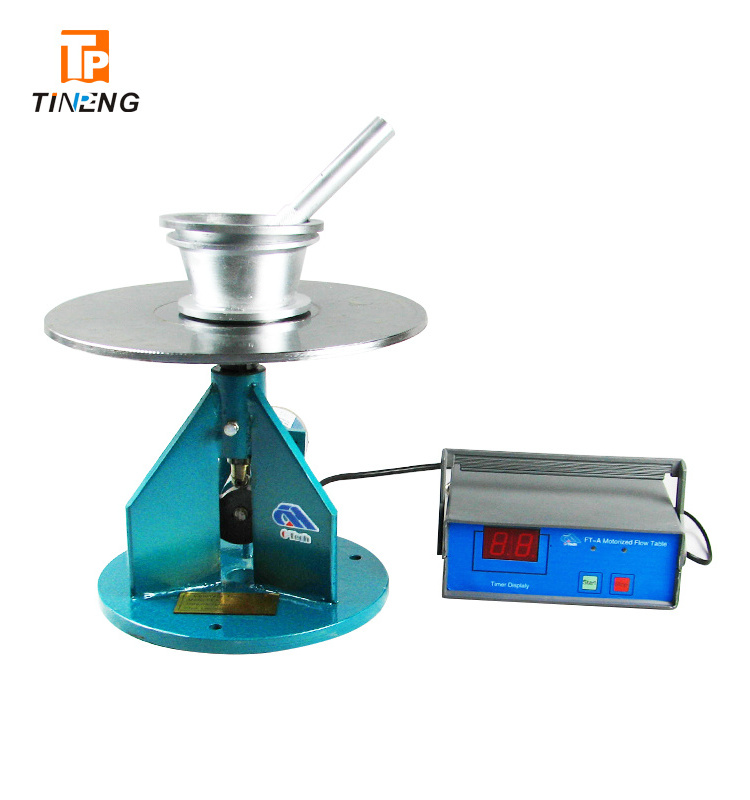

Motorized concrete flow table
It is used for determining the consistency of cement mortars. The motor operated models are driven by a motor
speed reducer and the number of drops are shown on the counter, which stops automatically the machine at the
end of the cycle. Supplied complete with flow mould and tamper.
FT-A flow table
| Weight of vibrating part | 4.35±0.15 kg |
| Height of drop: | 10±0.1 mm |
| Vibrating frequency: | 1 HZ |
| Working cycle: | 25 S |
| Table diameter: | 300±1 mm |
| Flow mould dimension: |
100 mm base dia. x 70 mm
top dia. x 60 mm high |
| Motor Power: | 220V, 50Hz |
| Dimension: | 400×400×690 mm |
| Net weight: | 25 kg |
