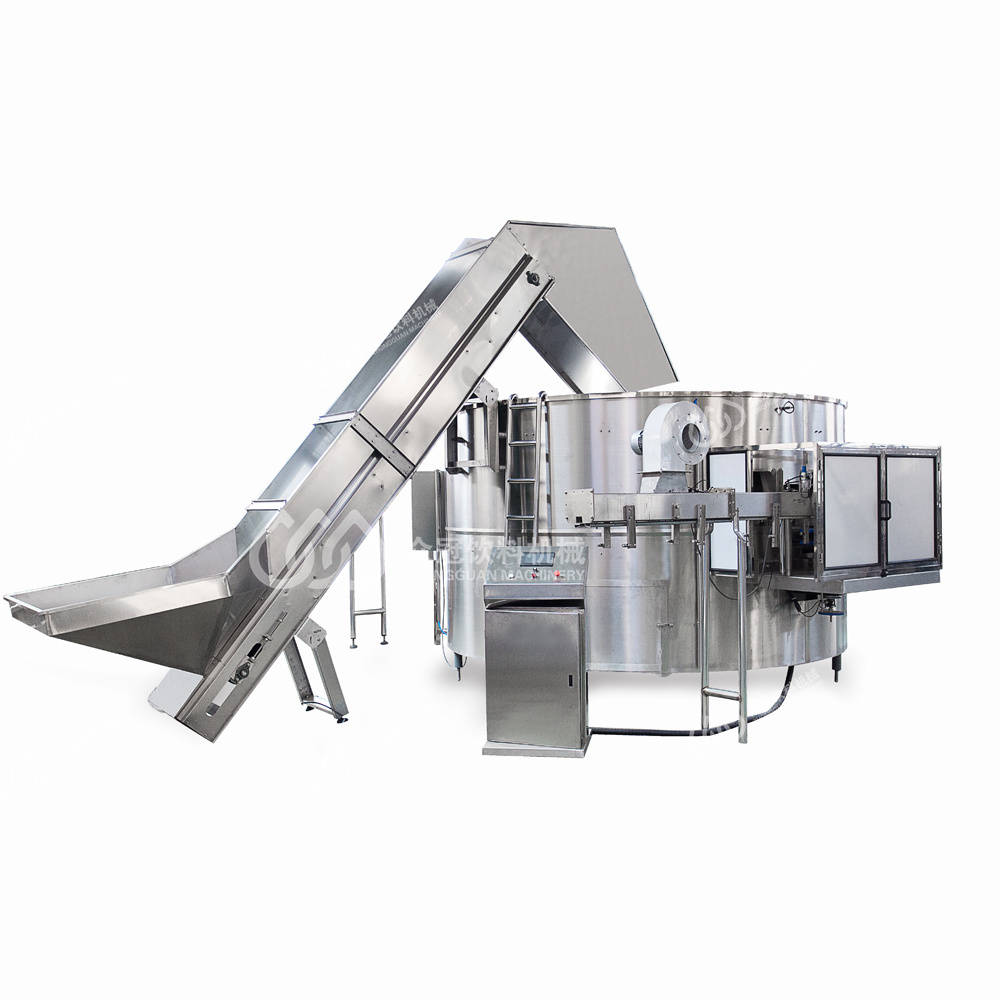

The machine is used for ordering disordered polyester bottles.The disordered bottles are carried into the storing bottle section by elevator.With the help of the rotating disk,the bottles enter their position.With the function of the turning bottle device and the air-flow,the bottles are ordered into bottle mouth-up-position and are carried into the next process with the air-transferring type conveying bottle system.
The machine adopts PLC computer control,frequency control to adjust its production capacity.It has a screener to automatically remove non-standard bottles.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SinoPak TEC
-
Weight:
-
2500 KG
-
Dimension(L*W*H):
-
2800*2800*2450MM
-
Product name:
-
bottle unscrambler
-
Function:
-
High Effieciency
-
Keyword:
-
bottle setting machine
-
Usage:
-
Beverage
-
Machine type:
-
Auto
-
Suitable for:
-
beverage production
-
Advantage:
-
High Stability
-
Speed:
-
400 Bottle/min
-
After-sales Service Provided:
-
Avaliable
Quick Details
-
Voltage:
-
380V/220V
-
Power:
-
5.5KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SinoPak TEC
-
Weight:
-
2500 KG
-
Dimension(L*W*H):
-
2800*2800*2450MM
-
Product name:
-
bottle unscrambler
-
Function:
-
High Effieciency
-
Keyword:
-
bottle setting machine
-
Usage:
-
Beverage
-
Machine type:
-
Auto
-
Suitable for:
-
beverage production
-
Advantage:
-
High Stability
-
Speed:
-
400 Bottle/min
-
After-sales Service Provided:
-
Avaliable
Products Description
Bottle Unscrambler
|
Model
|
LP--16
|
LP--18
|
LP--21
|
|
Work position
|
16
|
18
|
21
|
|
Production capacity (b/h)
|
8000--10000
|
12000--15000
|
18000--24000
|
|
Gas source pressure (Mpa)
|
0.7
|
0.7
|
0.7
|
|
Gas consuming volume(m3/min)
|
0.5
|
0.5
|
0.5
|
|
Suitable bottle type(mm)
|
350-1200ml
φ50--90 |
350-1250ml
H=150--290 |
350--1250ml
H=150-290 |
|
Main motor power (kw)
|
2.2
|
3.0
|
5.5
|
|
Fan power(kw)
|
2.2
|
2.2
|
2.2
|
|
Dimension(mm)
|
φ2100*2150
|
φ2650*2290
|
φ2800*2450
|
|
Weight(kg)
|
3500
|
4200
|
5200
|
