Quick Details
-
Product Weight（kg）:
-
4.3
-
Input Voltage(V):
-
AC220V/DC12V
-
Lamp Luminous Flux(lm):
-
12000
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lampsuite
-
Corrosion Resistant:
-
WF2
-
Rated Power:
-
10W/40W
-
Peak light intensity:
-
>2000cd
-
Ex-proof Mark:
-
Ex db IIC T6 Gb;Ex tb IIIC T80°C Db
Quick Details
-
Warranty(Year):
-
1-Year
-
Lamp Body Material:
-
Aluminum
-
Light Source:
-
LED
-
Product Weight（kg）:
-
4.3
-
Input Voltage(V):
-
AC220V/DC12V
-
Lamp Luminous Flux(lm):
-
12000
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lampsuite
-
Corrosion Resistant:
-
WF2
-
Rated Power:
-
10W/40W
-
Peak light intensity:
-
>2000cd
-
Ex-proof Mark:
-
Ex db IIC T6 Gb;Ex tb IIIC T80°C Db
Product Description
Equipped with advanced features such as automatic dusk-to-dawn sensors and weatherproof housing, our obstruction lights are reliable and efficient. They adhere to stringent aviation regulations and standards, providing peace of mind to operators and pilots alike.
Whether installed atop skyscrapers, wind turbines, bridges, or other elevated structures, our obstruction lights play a crucial role in preventing collisions and ensuring the safety of both air and ground personnel. Trust in our obstruction lights for dependable performance and enhanced aviation safety.
Detailed Images
Hardware facilities
The shell is made of aluminum alloy die-casting, and the surface is sprayed with high-voltage electrostatic spraying after shot blasting; the structure is light and the appearance is beautiful; the exposed fasteners are made of stainless steel; it is controlled by a light-controlled automatic switch, which automatically opens and closes according to the brightness of the environment, ensuring reliability high.
High standard
fittings
The Class IIB aviation obstruction light has 6 built-in screw bulbs as light sources, and adopts an automatic switching bulb circuit. Normally, only one bulb is working, and the other bulbs are in reserve. When the current bulb is damaged at the end of its life, the control circuit automatically starts the backup bulb and puts it into work; Class IIC aviation obstruction lights use high-brightness energy-saving LEDs as light sources, which have low power consumption, long life, maintenance-free use, energy saving and environmental protection; Class IIC aviation obstruction lights can be equipped with solar panels, eliminating the need for wiring and wiring.
Various functions
The flash frequency is adjustable and can also be customized according to user requirements; it uses optimized control circuits and advanced and reliable integrated components internally; it can run multiple lights synchronously, with one lamp as the master lamp and multiple desk lamps as sub-lights, supplemented by specially designed circuits Realize multiple lights flashing synchronously
Product Presentation
|
|

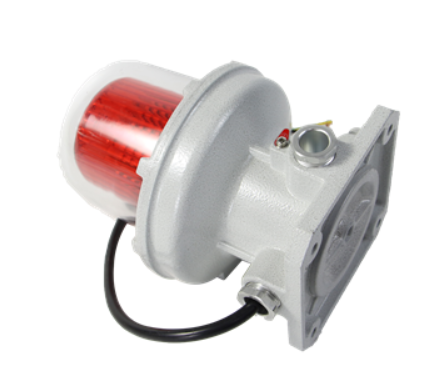

Aviation obstruction light
|
|
|
10w/40w
|
|
|
AD220V/DC12V
|
|
|
>2000cd
|
|
|
20-60times/min
|
|
|
IP66
|
|
|
|
Product Application
High buildings
Communication towers and power towers
bridges and large structures
piers and ports
Mountain tops and high areas
Antennas and satellite receivers
Mines and quarries
building construction site
agricultural field
lighthouses and seamarks
