Quick Details
-
Brand Name:
-
FIBER-Link
-
Use:
-
FTTH/FTTB/FTTX Network
-
Warranty Time:
-
1 year
-
Wavelength::
-
Tx1490nm/Rx1310nm
-
Transmission distance::
-
20km
-
Data-rate::
-
2.5G/1.25G
-
Power supply::
-
+3.3V
-
Item::
-
GPON OLT Class C+ SFP 20KM SC
-
Supply Ability::
-
50,000pcs/month
-
Operating case temperature::
-
0 to 70 degree
-
Output power::
-
Output power:
-
TX Power (dBm):
-
7~10 dbm
-
Ticket logo:
-
customized
Quick Details
-
Type:
-
SFP
-
Model Number:
-
JHHL-GPONC+++
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FIBER-Link
-
Use:
-
FTTH/FTTB/FTTX Network
-
Warranty Time:
-
1 year
-
Wavelength::
-
Tx1490nm/Rx1310nm
-
Transmission distance::
-
20km
-
Data-rate::
-
2.5G/1.25G
-
Power supply::
-
+3.3V
-
Item::
-
GPON OLT Class C+ SFP 20KM SC
-
Supply Ability::
-
50,000pcs/month
-
Operating case temperature::
-
0 to 70 degree
-
Output power::
-
Output power:
-
TX Power (dBm):
-
7~10 dbm
-
Ticket logo:
-
customized
Product Description
1.

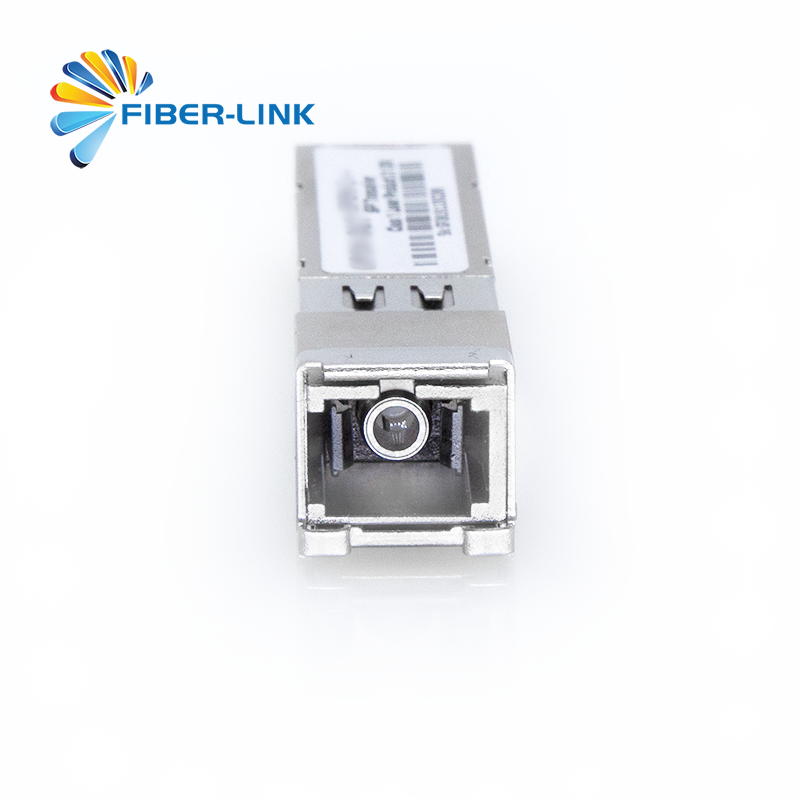

20KM GPON OLT SFP C+++ 8dbm
Introduction:
*
The C+++ SFP transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.
Features:
●
1. Single Fiber Transceiver with single mode SC receptacle
●
2. 1490nm continuous-mode transmitter with DFB laser
●
3. 1310nm burst-mode receiver with APD-TIA
●
4. Single 3.3V power supply
●
5. Reset burst-mode receiver design
●
6. Burst mode signal detect output which is LVTTL compatible.
●
7. Burst mode received signal strength indication (RSSI) output
●
8. 20Km Reach 28dB link budget
●
9. Complies with huawei,zte,fiberhome,bdcom OLTs
●
10. Operating case temperature: Standard : 0 to +70°C
|
Technical parameters:
|
|
|
|
Technical item
|
Specification
|
|
|
GPON SFP C+++
|
2.5Gbps/1.25Gbps, Class C+++, 0ºC ~ +70ºC With Digital Diagnostic Monitoring
|
|
|
Wavelength
|
Tx1310nm, Rx 1490nm
|
|
|
TX Power (dBm)
|
7~10 dbm
|
|
|
RX Sens (Max.) (dBm)
|
-31
|
|
|
Supply Voltage
|
3.3v
|
|
|
Distance 20km
|
20Km
|
|
Application:
●
Gigabit Passive Optical Networks (G-PON) – OLT side
Packing & Delivery
PACKING
:
Original factory packing or customizedo,Or packed by standard export carton.
Shipping way :
By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Delivery time :
1-7 days after order confirmed, exact delivery date should be decided according to production season and order quantity.
