Quick Details
-
Model Number:
-
DP-ET
-
Product name:
-

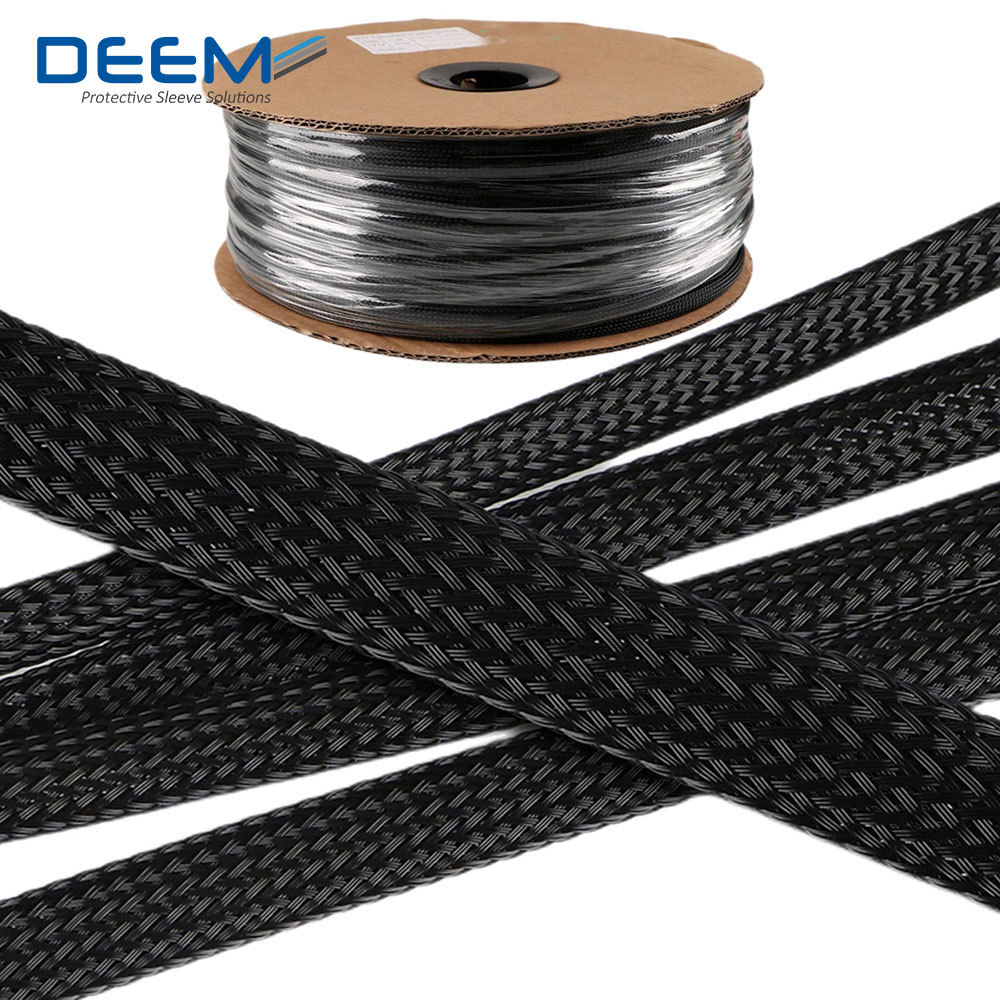

PET expandable braided cable sleeving
-
Brand:
-
DEEM
-
Origin:
-
China
-
Peak temperature:
-
175℃
-
Melting point:
-
250℃
-
RoHS:
-
Reach
-
Operating temperature:
-
-55 ~150℃
-
Flammability:
-
Self extinguishing
-
Fluid resistance:
-
Unaffected by most chemicals
Quick Details
-
Material:
-
PET
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DEEM
-
Model Number:
-
DP-ET
-
Product name:
-
PET expandable braided cable sleeving
-
Brand:
-
DEEM
-
Origin:
-
China
-
Peak temperature:
-
175℃
-
Melting point:
-
250℃
-
RoHS:
-
Reach
-
Operating temperature:
-
-55 ~150℃
-
Flammability:
-
Self extinguishing
-
Fluid resistance:
-
Unaffected by most chemicals
Promotion
Technical Data
| Property | Test Method | Values | |
| Physica | Peak temperature | - | +175°C |
| Melting point | - | +250°C | |
|
Flammability |
FMVSS 302 | Self extinguishing | |
| D45 1333 | Type B | ||
| UL94 on compound | V-2 | ||
| NF F 16-101 &102 | I2– F1 | ||
| EN 45 545-2 | R22 & R23 | ||
| Smoke toxicity | - | Halogen free | |
| Abrasion resistance | S21 5101 & D44 1959 PSA/RSA | CAT B | |
| Chemical | Fluid resistance | D47 1924 | Unaffected by most chemicals |
Dimensions
| As Supplied (mm) | Range of use (mm) | Standard Packing (m/roll ) |
| 3 | 1-4 | 2000 |
| 4 | 2-6 | 2000 |
| 5 | 3-7 | 2000 |
| 6 | 4-9 | 2000 |
| 8 | 5-11 | 1000 |
| 10 | 7-14 | 1000 |
| 12 | 8-16 | 1000 |
| 15 | 10-20 | 1000 |
| 20 | 14-25 | 1000 |
| 25 | 18-30 | 500 |
| 30 | 20-40 | 500 |
| 40 | 30-52 | 250 |
| 50 | 40-65 | 250 |
| 65 | 45-105 | 100 |
| 76 | 64-120 | 100 |
