Quick Details
-
Brand Name:
-
yueke
-
Model Number:
-
STSZ-2
-
Specimen size:
-
Dia 39.1*80mm, dia 61.8*125mm
-
Axial load:
-
30kN
-
Lift speed range(mm/min):
-
0.003~4.800
-
Max. confining pressure:
-
2.5MPa
-
Max. back pressure:
-
1MPa
-
Pore water pressure:
-
0-2MPa
-
Min. division:
-
0.1ml
-
Axial displacement range:
-
0-30mm
-
Max. Stroke:
-
50mm
-
Volume change range:
-
0-50ml
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
yueke
-
Model Number:
-
STSZ-2
-
Specimen size:
-
Dia 39.1*80mm, dia 61.8*125mm
-
Axial load:
-
30kN
-
Lift speed range(mm/min):
-
0.003~4.800
-
Max. confining pressure:
-
2.5MPa
-
Max. back pressure:
-
1MPa
-
Pore water pressure:
-
0-2MPa
-
Min. division:
-
0.1ml
-
Axial displacement range:
-
0-30mm
-
Max. Stroke:
-
50mm
-
Volume change range:
-
0-50ml

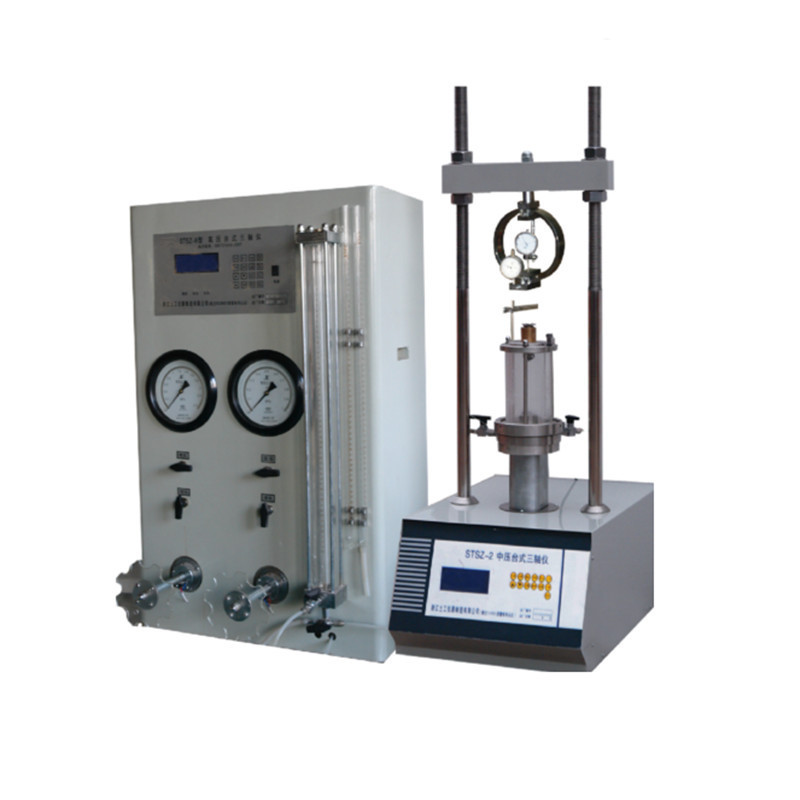

STSZ-2 30KN Medium Pressure Triaxial Test Set
Wechat/Whatsapp:+86 15968839848
Manufacturing License for China Industrial Products(XK07-003-00014)
Application:
Applied to measure the strength and deformation characteristics of the soil specimen. Perform unconsolidated undrained shear test (UU), consolidated unstrained shear test (CU) and consolidated drained shear test (CD).
Technical parameters:
1. Specimen size: Φ39.1×80mm, Φ61.8×125mm
2. Axial load: 30KN
3. Lift speed range(mm/min): 0.003~4.800
4. Max. Stroke: 50mm
5. Max. confining pressure: 2.5Mpa
6. Max. back pressure: 1Mpa
7. Pore water pressure: 0-2Mpa
8. Volume change range: 0-50ml
9. Min. division: 0.1ml
10. Axial displacement range: 0-30mm
11. Displacement rate: 0.001-5mm/min
| Triaxial Test Set |
STSZ-2 30KN Soil Medium Pressure Triaxial Testing Machine/Soil Testing Kit
