Natural Hydrophobic PTFE air vent filters Cartridge for Air/Gas

Natural Hydrophobic PTFE air vent filters Cartridge for Air/Gas

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: carton, PP / PTFE / PES / Nylon 6 / PVDF

Weight:: depends

Size:: depends

Power:: depends

Weight (KG):: 5 kg

Product name:: ptfe air vent filters

Micron Rate:: 0.1 to 100 micron pleated filter cartridge

Length:: 5", 10", 20", 30", 40" inch

Filter Media:: Hydrophobic PTFE membrane

End Cap:: DOE,222+Fin,222+Flat,226+Fin,226+Flat

Gasket/O ring material:: Silicon/EPDM/NBR/Viton/T-eflon

Usage:: Gas/liquid filter elements, water filter parts

Inner core:: PP / stainless steel

Quick Details

Core Components:: filter element

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Material:: carton, PP / PTFE / PES / Nylon 6 / PVDF

Weight:: depends

Size:: depends

Power:: depends

Weight (KG):: 5 kg

Product name:: ptfe air vent filters

Micron Rate:: 0.1 to 100 micron pleated filter cartridge

Length:: 5", 10", 20", 30", 40" inch

Filter Media:: Hydrophobic PTFE membrane

End Cap:: DOE,222+Fin,222+Flat,226+Fin,226+Flat

Gasket/O ring material:: Silicon/EPDM/NBR/Viton/T-eflon

Usage:: Gas/liquid filter elements, water filter parts

Inner core:: PP / stainless steel

Product Description

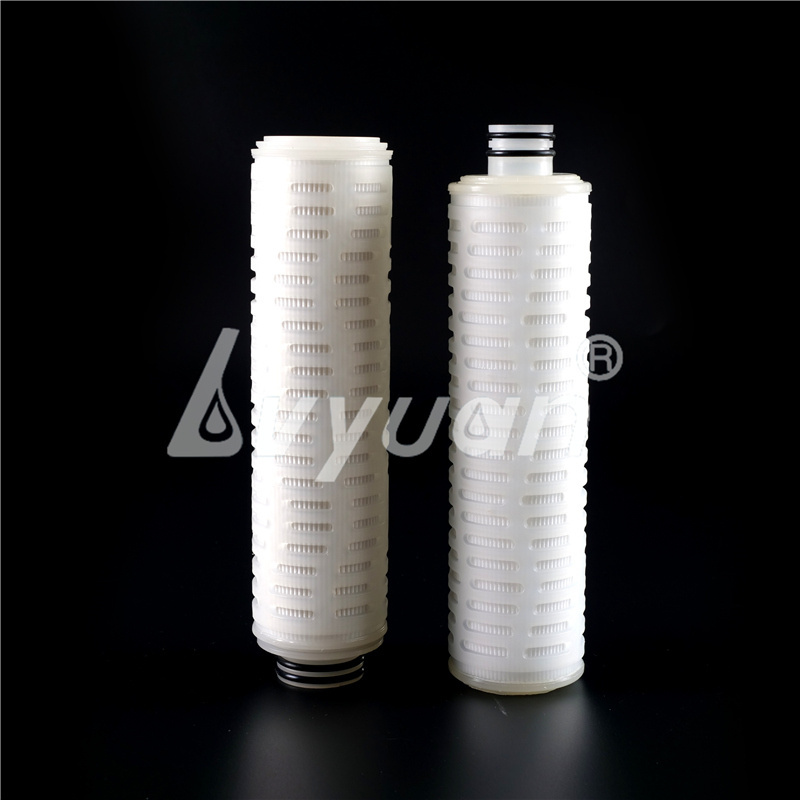

Natural Hydrophobic PTFE air vent filters Cartridge for Air/Gas

The filtration media of Polytetrafluoroethylene cartridge is hydrophobic PTFE membrane.
Polyflo cartridgee bears excellent operation features, and its safety and thermal control specifications conform to the requirements of U/S/P of the USA. Each polyflo cartridge has passed 100% integrity testing of bubble point and expanison flow so as to ensure to reach the bacterial retention requirements of USA H/I/M/E.

Main Features:

1. Inherently hydrophobic more resistant to water intrision than commonly used PVDF membrane.
2. Withstand shocks, back pressures and repeated sterilizations.
3. 100% bacterial retention and effective filtration to 0.02um pastical (in gas).
4. constructed of two materials PTFE and PP to meet high standards of pharmaceutical industry.

Application

1. Sterile tank vents
2. Sterile filtration of solvents: esters acetone, carbon tetrachloride, DMSO methanol, ethanol and isopropanol.
3. Sterile filtration of compressed gases: air, nitrogen, fermentation bioreactor feed.

Specification

Filter Media Option	PP filter cartridge	PTFE filter cartridge	Nylon 6 filter cartridge	PES filter cartridge	PVDF filter cartridge
Length	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40"
Micron Rate	0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron	0.2, 0.45 micron	0.2, 0.45, 0.65, 1 micron	0.1, 0.2, 0.45, 0.65 micron	0.2, 0.45 micron
End Cap	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter	28mm	28mm	28mm	28mm	28mm
Outer Diameter	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)
Jumbo Size	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm
Gasket/O ring material	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area	0.4-0.7m²	≥0.72m²	≥0.6m²	≥5m²	≥0.72m²
Max.working pressure difference	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃
Max.back pressure	0.28Mpa at 60℃	0.35Mpa at 60℃	0.35Mpa at 25℃	0.21Mpa at 25℃	0.21Mpa at 25℃
Max. working temperature	88℃ at 0.28Mpa, 60℃ at 0.42Mpa	142℃ at 0.276Mpa	49℃ at 0.21Mpa	140℃ at 0.28Mpa	80℃ at 0.173Mpa
Sterilizing temperature	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins
