- Product Details
- {{item.text}}
Quick Details
-
Interface Type:
-
SATA
-
Brand Name:
-
KingSpec
-
Model Number:
-
MSH-128
-
Place of Origin:
-
Guangdong, China
-
NAND Type:
-
MLC
-
Certification:
-
FCC, CE, RECH, RoHS, ISO9001
-
Factor:
-
3*2.5CM
-
Interface:
-
mSATA
-
Chips:
-
MLC NAND Flash
-
Capacity:
-
128GB
-
Warranty:
-
MLC Flash 3 years; SLC Flash 5 years
-
Packing:
-
Blister gift box
Quick Details
-
Application:
-
Other
-
Type:
-
Internal
-
Style:
-
SSD
-
Interface Type:
-
SATA
-
Brand Name:
-
KingSpec
-
Model Number:
-
MSH-128
-
Place of Origin:
-
Guangdong, China
-
NAND Type:
-
MLC
-
Certification:
-
FCC, CE, RECH, RoHS, ISO9001
-
Factor:
-
3*2.5CM
-
Interface:
-
mSATA
-
Chips:
-
MLC NAND Flash
-
Capacity:
-
128GB
-
Warranty:
-
MLC Flash 3 years; SLC Flash 5 years
-
Packing:
-
Blister gift box

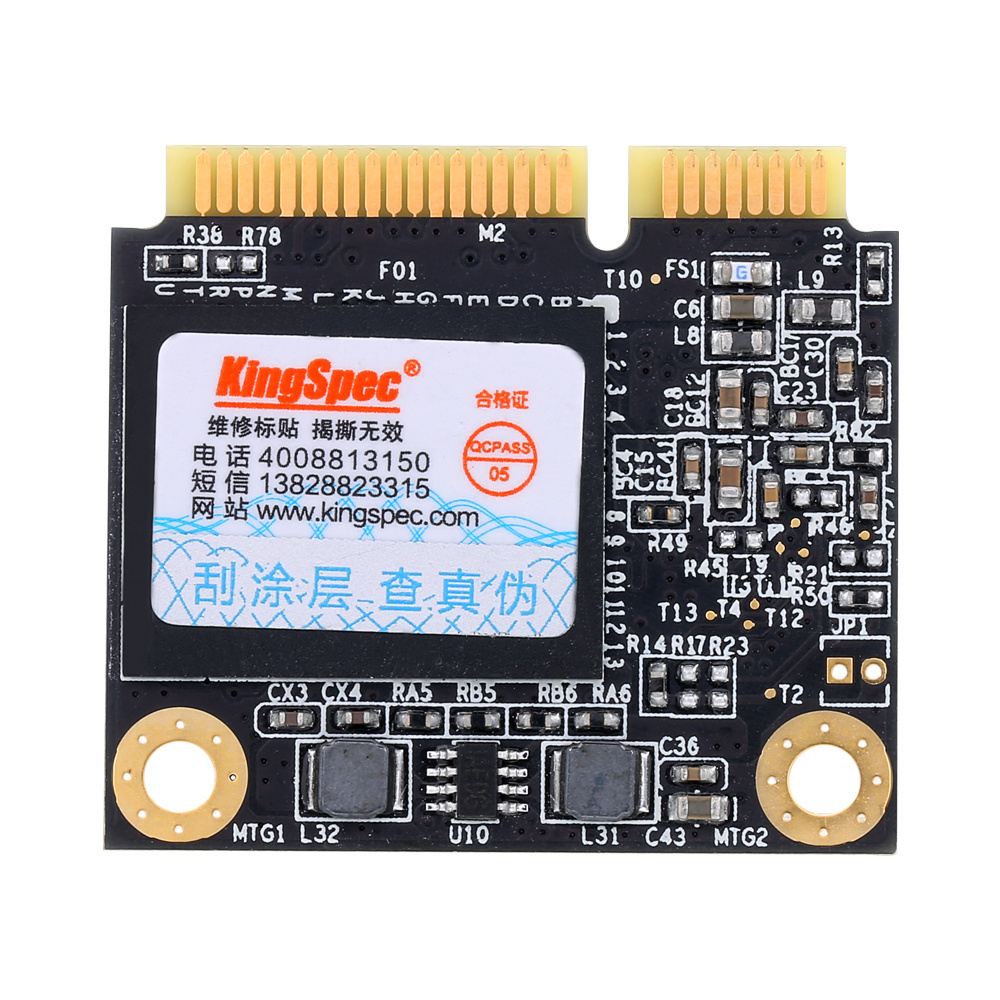

KingSpec Half Size mSATA 128GB Half Slim mSATA mini PCIE SSD
| Model | MSH-128 128GB Half mSATA KingSpec SSD | |
| General | Form factor | Half size msata(30.0mm x25.0mm x 3.5mm) |
| Interface | SATA | |
| Performance | Capacity | 16GB |32GB | 64GB |128GB|256GB |
| Sustained Read | 110MB/S | 350MB/S | 470MB/S| 500MB/S| 500MB/S | |
| Sustained Write | 25MB/S |40MB/S| 80MB/S| 160MB/S| 280MB/S | |
| 4KB Random Read IOPS | 14000 | |
| 4KB Random Write IOPS | 19000 | |
| Average Access time | 0.1ms | |
| OS support | Windows XP,Windows 7,Windows 2003,Windows 2008 , DOS , Linux,Unix | |
| Storage Media | NAND Flash | MLC |
| Power Consumption | input Voltage | 3.3V±5% |
| Idle | 0.5W | |
| Active | 1.5W | |
| Reliability& Endurance | Write endurance | 8years @100GBytes write and erase per day at 32GB |
| Read endurance | unlimited | |
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | |
| Data Retention | 10years at 25ºC | |
| MTBF | 1,000,000hours | |
| ECC | support NCQ,TRIM 16bits or 24bits in 1024 bytes | |
| Environment | Operating Temperature | 0 ~ 70 ℃ |
| Non-operating Temperature | -40 ~ 85 ℃ | |
| Shock | 2000G(@0.3ms half sine wave) | |
| Vibration | 20G(7-2000HZ) | |
| Ambient Humidity | 5-95% | |
| Warranty | MLC:3years, SLC:5years | |
| Testing Platform | CPU: Intel® Core ( TM ) i5-2400 CPU @ 3.10GHz Chipset: Intel® Z68 Express Chipset Memory: Kingston KHX1600C9D3C1K2/4GX OS: Microsoft Windows 7 Professional 64-bit AHCI Driver: Intel Chipset SATA AHCI Controller 10.5.1.1001 BIOS Settings: AHCI Mode | |
| Testing Software | ATTO Disk Benchmark , CrystalDiskMark v3.0 , HD Tach RW 3.0.1.0 , HD Tune PRO 3.50 | |
KingSpec new widely used half size msata 32GB to 128GB half slim mSATA miniPCIE module for MID
HOT2
Module No: MSH-128
Factor: half size 3*2.5CM
Interface: msata
Capacity: 128GB
Average Access time: 0.2ms
Max Sustained Read/Write: 500/280MB/s
MTBF: 1, 000, 000hours
Operating Temperature: 0~70º C
Warranty: 3 years
Packing: standard gift box
