Quick Details
-
Brand Name:
-
VMAXPOWER battery
-
Model Number:
-
MB-C012200 battery
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
56KG, 56.00kgs
-
Sealed Type:
-
Sealed
-
Size:
-
174*217*222 battery size
-
Power:
-
200Ah batteries battery
-
Voltage:
-
12V battery
-
Certification:
-
battery with CE and ISO9001
-
Warranty:
-
5Years, 3years
-
Terminal:
-
Cooper Lead Terminal battery
Quick Details
-
Storage Type:
-
dry environment
-
Anode Material:
-
LMO
-
Application:
-
electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
VMAXPOWER battery
-
Model Number:
-
MB-C012200 battery
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
56KG, 56.00kgs
-
Sealed Type:
-
Sealed
-
Size:
-
174*217*222 battery size
-
Power:
-
200Ah batteries battery
-
Voltage:
-
12V battery
-
Certification:
-
battery with CE and ISO9001
-
Warranty:
-
5Years, 3years
-
Terminal:
-
Cooper Lead Terminal battery

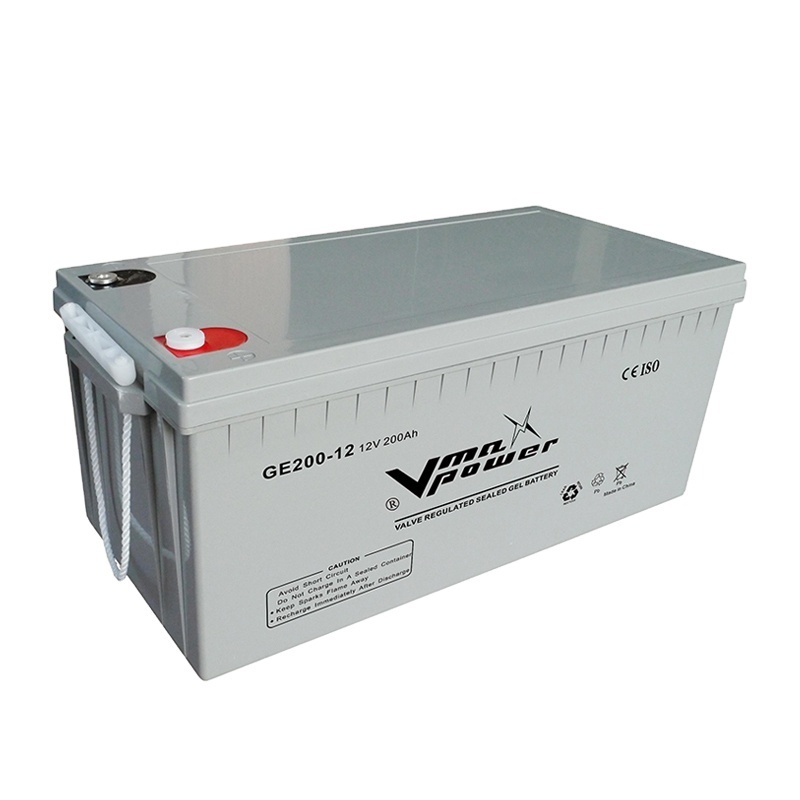

12v 200AH GEL Deep cycle PV off grid system Lead Acid battery for home solar electric storage
12v 200AH Deep cycle Lead Acid solar GEL AGM rechargeable batteries battery
MB-C012200 Deep Cycle series batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle(deep cycle). It is AGM(Absorbent Glass Mat) technology and for general application purpose.The MB-C012100 Deep-cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, whick allows for a much longer life in deep cycle applications.
Product Standards
• Compliant with international standards JIS C8702, BS6290-4 & IEC60896-21/22
• Classified as long life according to the Eurobat Guide/HF
• Able to be shipped as non-hazardous cargo
• The production facilities are certificated to ISO9001 & ISO14001
General Features
• Environmentally friendly
• High Reliability and Good Quality
• Deep Discharge Recovery
• High Power Density
• Long Service Life, in Float or Cyclic
• International Standard, JIS and DIN
Battery Construction
|
Component |
Positive plate |
Negative plate |
Container |
cover |
Safety value |
Teminal |
Separator |
Electrolyte |
|
Raw Material |
Lead dioxide |
Lead |
ABS |
ABS |
Rubber |
Copper |
Fiberglass |
Sulfuric acid |
Specification
|
Battery Model |
MB-C012100 |
|||
|
Design life (25 ℃ ) |
8 year |
|||
|
Rated Capacity (25 ℃) |
2 0HR( 6.7 A,1. 8 V) |
5HR( 22.9 A,1.75V) |
3 HR( 33.7 A,1.75V) |
2 HR( 47.2 A,1.7 5 V) |
|
135.0 AH |
114.75 AH |
101.25 AH |
94.5 AH |
|
|
Dimension |
Length |
Width |
Height |
Total Heght |
|
408 ±1.5mm(1 6.06 inch) |
173.3 ±1.5mm( 6.82 inch) |
210 ±1.5mm( 8.27 inch) |
237 ±1.5mm( 9.33 inch) |
|
|
Weight |
36.2 Kg ( 79.74 lbs) |
|||
|
Internal Resistance ( 25 ℃ ) |
Charging saturation status 4.8mΩ |
|||
|
Self-discharge ( 25 ℃ ) |
About 3%/month |
|||
|
Capacity while various temerature (20HR ) |
40 ℃ |
25 ℃ |
0 ℃ |
-15 ℃ |
|
102% |
100% |
85% |
65% |
|
|
Complementary charging system |
Cycling use |
Stand by use |
||
|
14.4~15.0V(-30mv/℃ ),Max initial current : 27.0A |
13.6~13.8V(-20mv/ ℃ ) |
|||
