- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Theme Park
-
Product Weight（kg）:
-
0.5
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
400
-
Working Temperature(℃):
-
-30 - 50
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Topsung Lighting
-
Model Number:
-
NL-FX
-
Keyword:
-
luces led de neon
-
LED Light Source:
-
SMD2835
-
LED type:
-
SMD
-
IP rate:
-
IP67
-
Certification:
-
CE ROHS
-
Coating:
-
Double
-
Gas Type:
-
LED
-
Material:
-
Double PVC
-
Shape:
-
Tube
-
LED Quantity:
-
120led/meter
Quick Details
-
Color Temperature(CCT):
-
2700K (Soft Warm White)
-
Warranty(Year):
-
3-Year
-
Lamp Body Material:
-
PVC
-
Application:
-
Theme Park
-
Product Weight（kg）:
-
0.5
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
400
-
Working Temperature(℃):
-
-30 - 50
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Topsung Lighting
-
Model Number:
-
NL-FX
-
Keyword:
-
luces led de neon
-
LED Light Source:
-
SMD2835
-
LED type:
-
SMD
-
IP rate:
-
IP67
-
Certification:
-
CE ROHS
-
Coating:
-
Double
-
Gas Type:
-
LED
-
Material:
-
Double PVC
-
Shape:
-
Tube
-
LED Quantity:
-
120led/meter
Keyword: mini neon, neon strips, micro neon rope, 8mm neon, 6mm neon ribbon
| Type | Click Picture for more details | Click here to get Quotation |
| 6x12mm Digital |
|
Get price for mini RGB pixel strip |
| 6x12mm Sinlge color |
|
Get price for 6mm micro neon |
| 8x16mm Dome neon |
|
Get price for 8mm small neon lights |
| 8x12mm Flat neon |
|
Get price for mini flat neon strips |
| 8x18mm Double Sided | Get price for double-sided neonflex | |
| 10x10mm Square | G et price for mini square top-view neon |
More details, you also could contact us on sales(at)topsung-tech.cn, thanks!
Manufacturer: Topsung Lighting
| Specification For Mini Neon | |
|
Voltage
|
24V or 12v |
| Size | 6x13mm |
| LED Space(mm) | 9.2 |
| LED Qty | 108leds/m |
| Cutting unit length | 12V 2.5cm 24v 5CM |
| Power consumption | 6-8W/M |
| LED Chip | SMD2835 |
| Max loading Length | 10m |
| Roll in meters | 10m |
| IP Grade | IP67 |

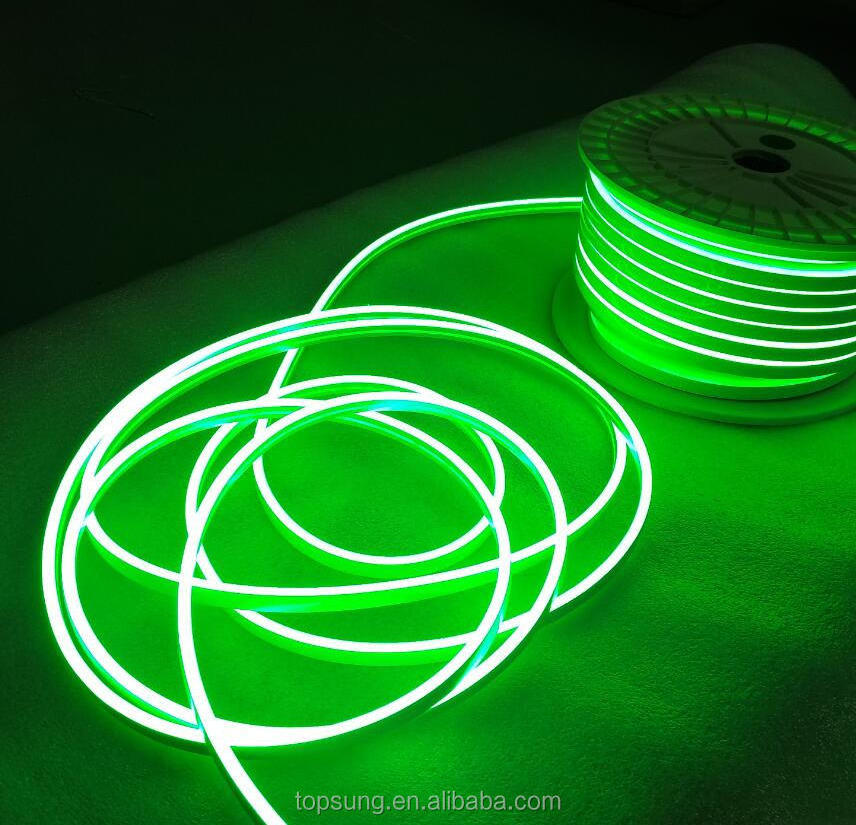

Features of mini neon flex led
*Consistent and stringent wavelength control standards +/_3nm
*Ultra-bright & Low Light attenuation LEDs
*Milky white diffuser
*White PVC base edge to increase luminosity
*100% unbreakable
*100% waterproof
*Low heat
*Low maintenance coat
*1/10 the energy consumption of glass neon
*Fully enclosed electronics: no exposed glass tubing as with neon
*Environmental protection
*Work temperature:-20°C~60°C
Warm White
White
Blue
Pink/Purple
Orange
Promotion 24v mini cool white custom neon sign 8.5x17mm manufacturer
Accessories: (Some models no so many accessories, please contact us)
Packing Details:
50meter per roll per carton
Installation Notes of 24v neon led strip strip
*A Catalog is not a substitute for user manual.
*Always follow the cut marks provided user manual
*Cut only on the cut marks provided on the fixture housing
*When applying linear solutions to a channel make certain to use an appropriate silicone adhesive between the base of the channel profile and fixture housing to eliminate stretching over time.
Most of our Products has passed CE,ROHS, FCC, PSE, certificate
Shenzhen Topsung Lighting Co.,Limited with 15 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD. Its main procuts include: LED decoration lights (Neon, Rope, Strips,ect) & Indoor LED lights (tube, bulb, downlight, panel light,ect). Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!
Tel: 86-15994785513 Mail: sales (at) topsung-tech.cn Skype: topsungled
Thanks for reading!Feel free to contact us for the update information & price!
