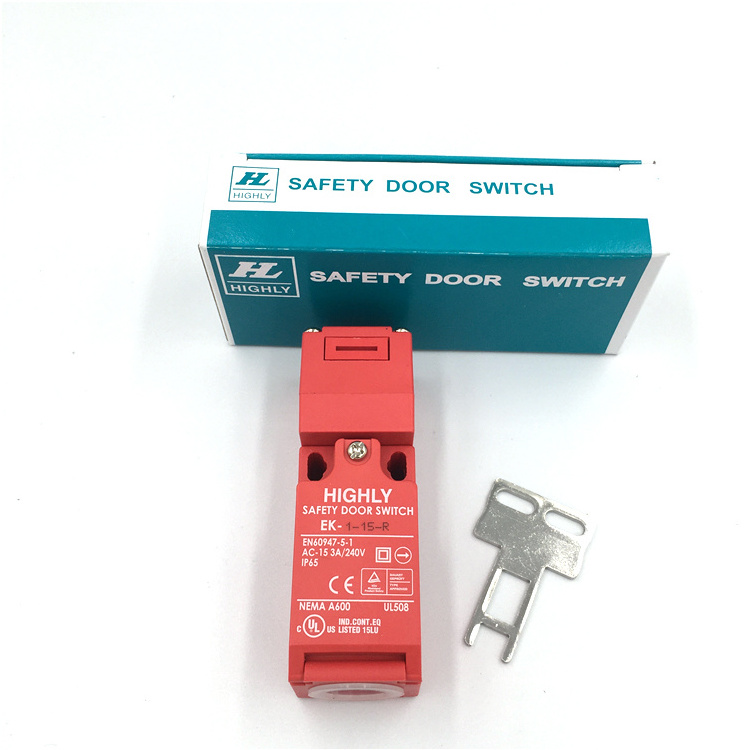

Hot Sale Waterproof IP65 10A Safety Limit Switches Interlock Door Switch

Hot Sale Waterproof IP65 10A Safety Limit Switches Interlock Door Switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15

≥101 Pieces

US $13

≥301 Pieces

US $11

≥500 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: EK-1-15-R

Protection Level:: IP65

Operating Temperature:: -25℃-+80℃

Max. Current:: 10A

Standards:: EN60947-5-1, UL508, EN50047, EN1088

Positive Opening Operation:: NC Contact

Utilization Category:: AC15 A600

Rated Impulse withstand Volt:: 2500V AC

Insulation Resistance:: 100MΩ min.(DC 500V)

Contact Resistance:: 25mΩ max.(Initial)

Insulation resistance:: 100MΩ (DC 500)

Withstand voltage:: AC2500V/Umip 4KV

Contact resistance:: 25mΩ

Operating current:: 10A

Certification:: CCC,CE,ROHS,TUV,ENEC

Quick Details

Max. Voltage:: 600V AC

Place of Origin:: Taiwan, China

Brand Name:: HIGHLY

Model Number:: EK-1-15-R

Protection Level:: IP65

Operating Temperature:: -25℃-+80℃

Max. Current:: 10A

Standards:: EN60947-5-1, UL508, EN50047, EN1088

Positive Opening Operation:: NC Contact

Utilization Category:: AC15 A600

Rated Impulse withstand Volt:: 2500V AC

Insulation Resistance:: 100MΩ min.(DC 500V)

Contact Resistance:: 25mΩ max.(Initial)

Insulation resistance:: 100MΩ (DC 500)

Withstand voltage:: AC2500V/Umip 4KV

Contact resistance:: 25mΩ

Operating current:: 10A

Certification:: CCC,CE,ROHS,TUV,ENEC

Product Description

Standards	EN60947-5-1, UL508, EN50047, EN1088
Approvals	cULus, CE
Positive Opening Operation	NC Contact
Utilization Category	AC15 A600
Thermal Current (lth)	10A
Rated Insulation Voltage	600V AC
Rated Impulse withstand Volt	2500V AC
Insulation Resistance	100MΩ min.(DC 500V)
Contact Resistance	25mΩ max.(Initial)
Travel For Positive Opening	Various (see Product Selection table)
Max Actuation Frequency	2 cycle/sec
Enclosure Material	UL approved glass-filled polybutylene terephthalate
Actuator Material	Stainless steel
Enclosure Protection	IP 65
Operating Temperature	Min -25℃(-18℉) Max 80℃ (+176℉)
Pollution Degree	3
Protection Against Electric Shock	Class II (Double Insulation)
Mech. Life Expectancy	1 x 106 Cycles min
Electrically Life Expectancy	150,000 Cycles min
Vibration	IIEC 68-2-6, 10-55Hz±1 Hz, Excursion: 0.35mm, 1 octave/min
Conduit Entry	Various (see Product Selection table)
Fixing	2 x M4
