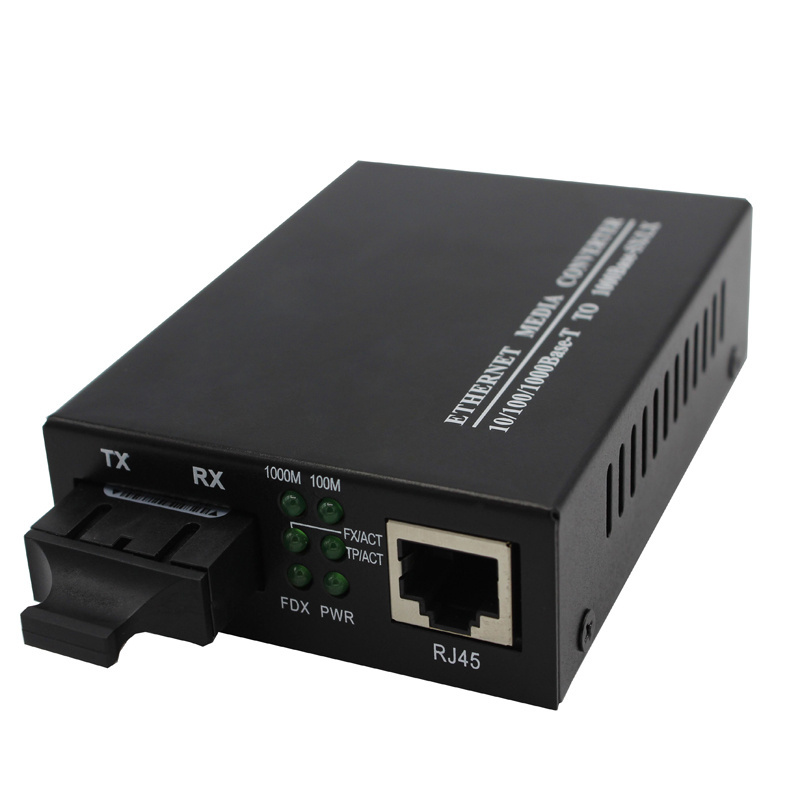

Gigabit 1000Mbps cctv gpon fiber optic media converter

Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.

Key Features:

1. Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply

Technical Information:

1. Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%
3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)
5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure
6. Power: DC 48V to DC 5V
7. MAC address table: 4K
8. Data Buffer: 256K
