Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Comfast
-
Supplier Type:
-
Factory
-
Flash/RAM:
-
16MB Flash+64MB
-
Frequency:
-
2.4GHz
-
Data rates:
-
300mbps
-
Antenna:
-
Omni 2*5dBi Antennas
-
Color:
-
White
-
System:
-
OpenWRT
-
Warranty:
-
1 Year
-
Interface:
-
1WAN+1LAN
-
Item:
-
Outdoor Access Point
Quick Details
-
Chipset:
-
QCA9531, QCA9531
-
Application:
-
Outdoor AP
-
Model Number:
-
CF-EW71 V2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Comfast
-
Supplier Type:
-
Factory
-
Flash/RAM:
-
16MB Flash+64MB
-
Frequency:
-
2.4GHz
-
Data rates:
-
300mbps
-
Antenna:
-
Omni 2*5dBi Antennas
-
Color:
-
White
-
System:
-
OpenWRT
-
Warranty:
-
1 Year
-
Interface:
-
1WAN+1LAN
-
Item:
-
Outdoor Access Point

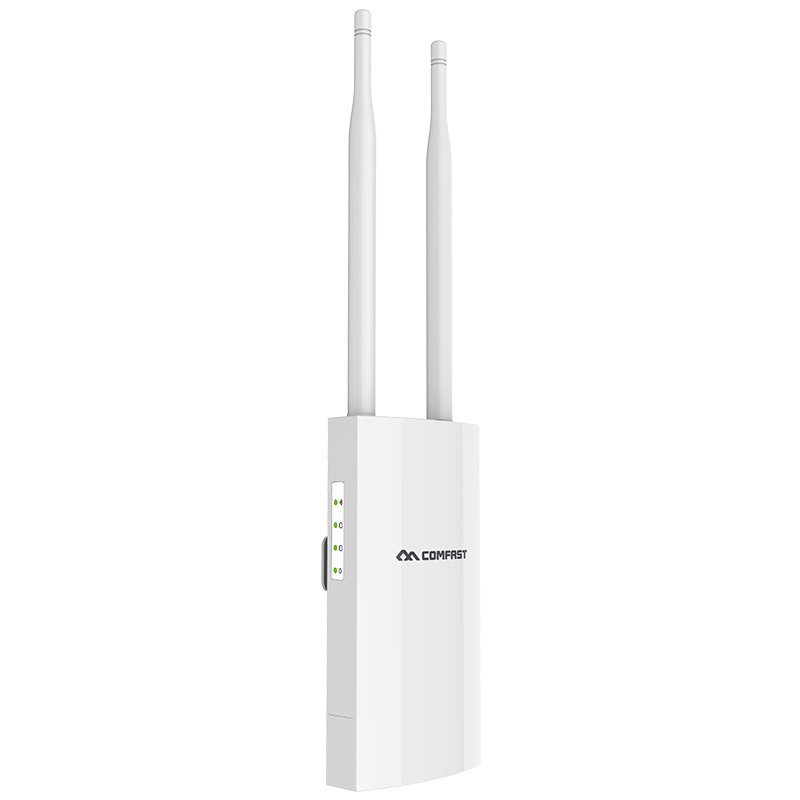

Comfast Cf-ew71 V2 Network Wimax 300mbps Access Point Qualcomm Qca9531 Chipset Wall Plate Access outdoor 2.4GHz wifi AP routers
Product Description
300Mbps OMNI IEEE802.11b/g/n Standard POE Power Supply Lightening-proof & Waterproof Long Range Outdoor wifi/wireless Access Point
Product Features
- Comply with IEEE 802.11b/g/n, 300Mbps Data Rate
- 10/100Mbps WAN + LAN Ports
- Support IEEE 802.3af PoE standard
| Product Name | 300Mbps Outdoor Wireless Access Point |
| Hardware Specification |
Qualcomm Chipset QCA9531, Industrial Grade CPU; DDR:64MB; Flash:16MB |
| Antenna | External omnidirectional 2*5dBi Antennas |
| Wireless Standard | IEEE802.11b/g/n |
| Transmission Rate |
11b: 1/2/5.5/11Mbps
11g: 6/9/12/18/24/36/48/54Mbps 11n: 300Mbps |
| RF Parameters |
Output Power (Max): 50mW
Receiver Sensitivity (Max): -96dBm Frequency: 2.412~2.484GHz |
| Modulation Mode |
DSSS:DBPSK@1Mbps, DQPSK@2Mbps, CCK 5.5/11Mbps; OFDM:BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; MIMO-OFDM:MCS0-15 |
| Transmission Rate |
11b: 1,2,5.5, 11Mbps; 11g: 6,9,12,18,24,36,48,54Mbps; 11n: MCS0-MCS15(20MHz and 40MHz Analog Bandwidth); 20MHz: 144.4Mbps; 40MHz: 300Mbps |
| Physical Ports |
1*10/100Mbps WAN RJ45 Ethernet Port; 1*10/100Mbps LAN RJ45 Ethernet Port; 1*Reset Buttons |
| Indicator | WAN, LAN, WiFi, Power |
| Power |
Power Supply: 802.3af/at POE Power Supply(0-100m);
Power Adapter: 48V 0.32A POE Power Adapter(Configured) |
| Power Consumption(Max) | <8W |
| IP Index | IP66 |
| MTBF | >250000H |
| Case | Plastic Case (Imported ABS Material) |
| Physical Features | Size: 353*85*44MM |
| Working Environment |
Working Temperature: -10 C~65 C
|
